Condair Sigma - System Overview

14 Product Overview
3.5 System overview
1 Steam generator
2 Steam connector
3 Water drain connector
4 Water supply connector
5 Water connection hose G 3/4"- G 3/8"
(included in the delivery)
6 Manometer (installation recommended)
7 Filter valve (accessory "Z261")
8 Funnel with siphon (building side)
9 Water drain hose (included in the delivery)
10 Electrical isolator control voltage supply (building side)
11 Electrical isolator heating voltage supply (building side)
12 Steam hose (accessory "DS..")
13 SPA Display
14 Condair Delta SPA Control Box
15 Electrical isolator Condair Delta SPA Control Box
125...1250 µS/cm
1...10 bar
1...40 °C
DS35
DS22
Z261
1
2
3
4
5
6
7
8
9
11
10
13
14
15
12

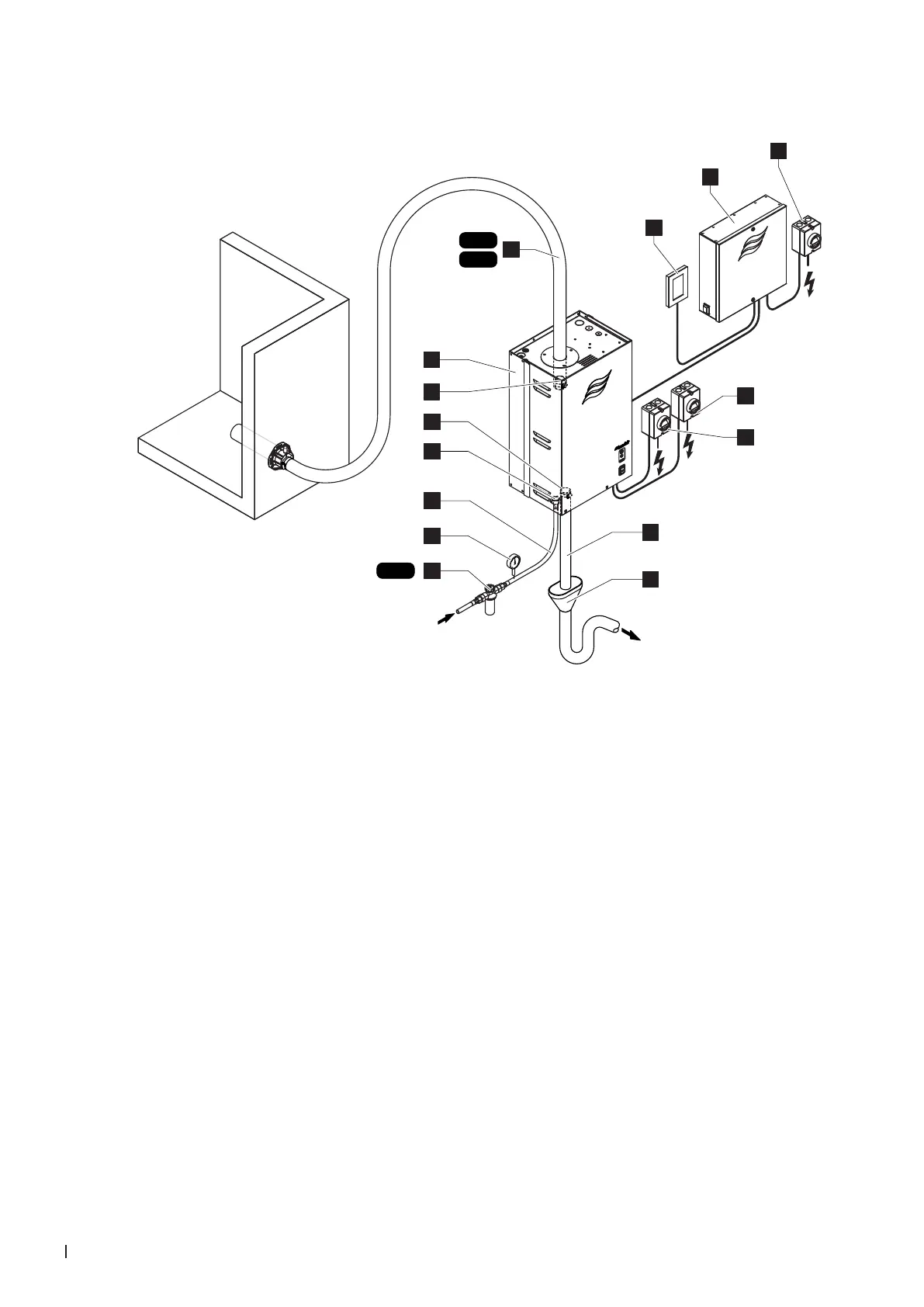

Abb. 4: System overview
