31Mounting and installation work
– Steam hoses must be prevented from sagging (condensate pockets); if necessary, support steam
hose with pipe clamps, trough, or wall brackets, and install a condensate drain at any low points in
the steam line.
– It is not permitted to install a stop valve (e.g. a manually controlled stop valve, solenoid valve,
etc.) in the steam line, due to an inadmissible increase of pressure in the steam tank if the valve is
closed during the operation.

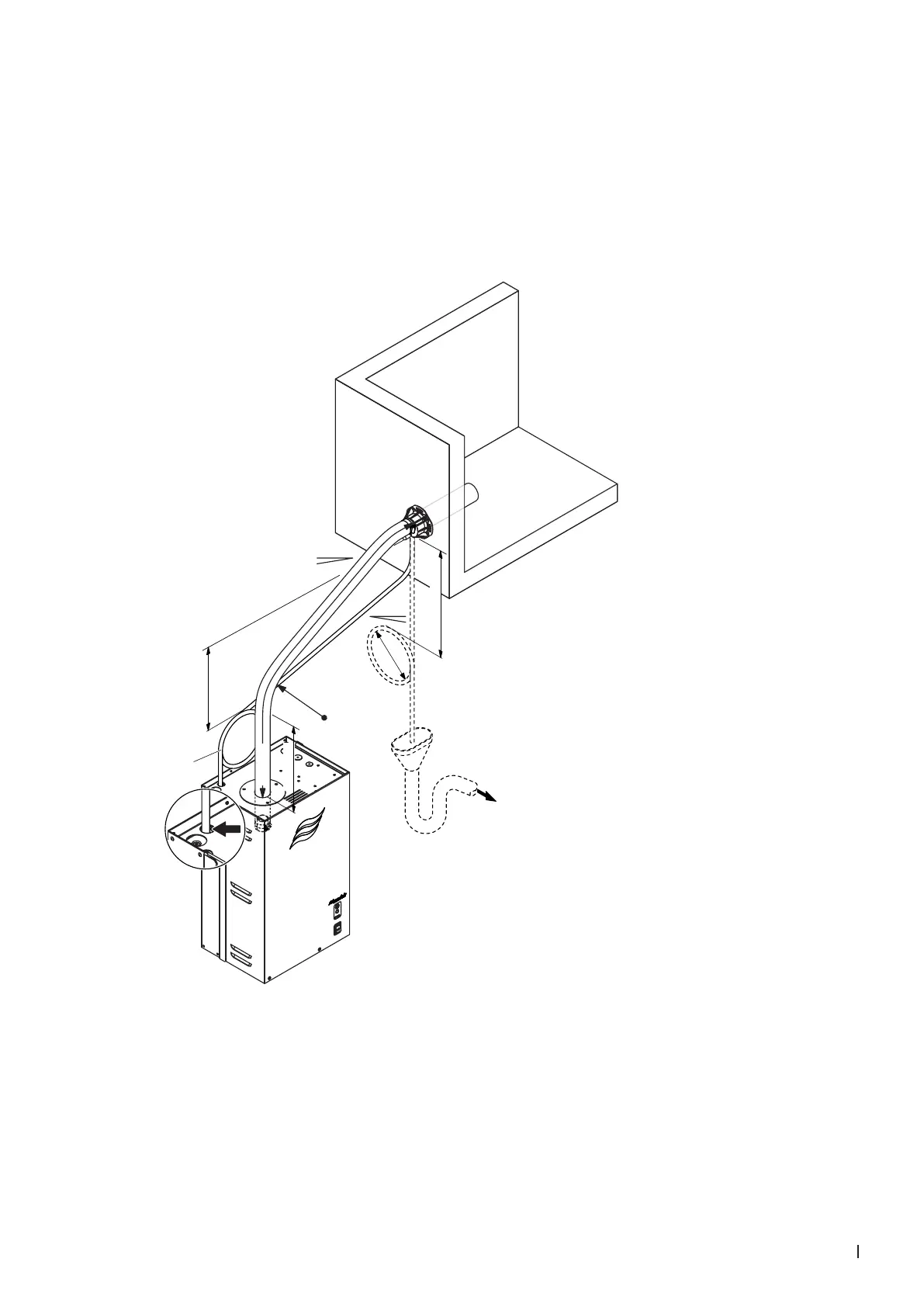

5.4.3.2 Installation examples
Abb. 10: Steam distributor is mounted more than 500 mm above the top edge of the steam generator
min. 15 %
+
Rmin. 300 mm
max. 4 m
min. 300 mm
min. 300 mm
Ømin.
200 mm
min. 15 %
–
Ømin.
200 mm
min. 300 mm
