7.3 Removing and installing parts for maintenance
7.3.1 Removal and installation of the steam cylinder

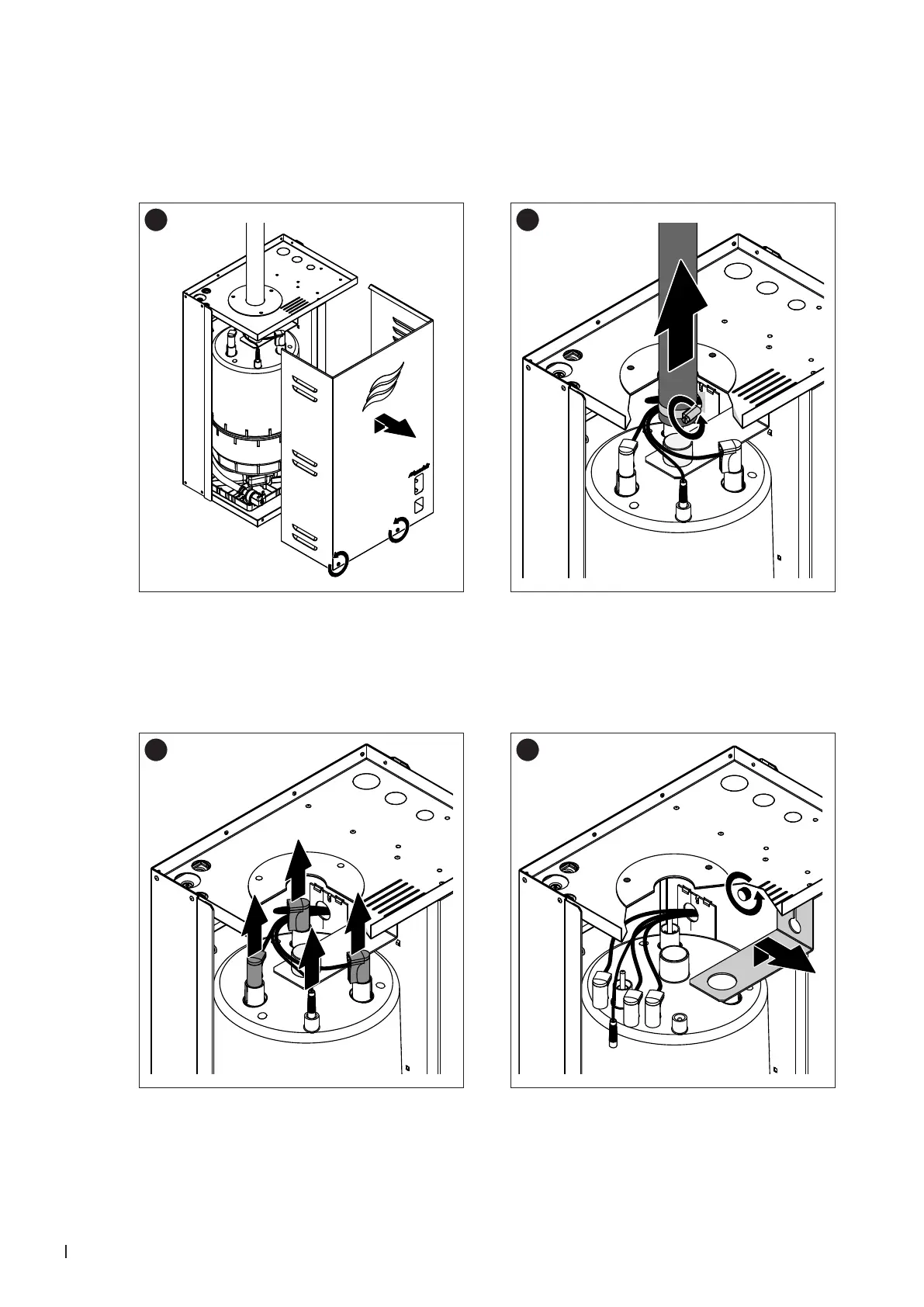

1. Undo the two screws xing the front panel to the unit using a screwdriver, then remove the front
panel.
2. Release the hose clamp on the steam hose using a screwdriver, then detach the steam hose from
the steam outlet connection of the steam cylinder.
3. Remove all plugs from the electrodes and from the level sensor.
4. Loosen the screw of the steam cylinder xing device by a few turns, then push the xing device
upwards until it comes loose and remove it.
1 2
3 4
