7.3.3 Removal and installation of the water cup and the water hoses
For removing the water cup and the water hoses the steam cylinder must be removed rst (see chapter
7.3.1).
1. Release hose clamps using pliers, then disconnect all hoses from the corresponding connectors
and remove the hoses.

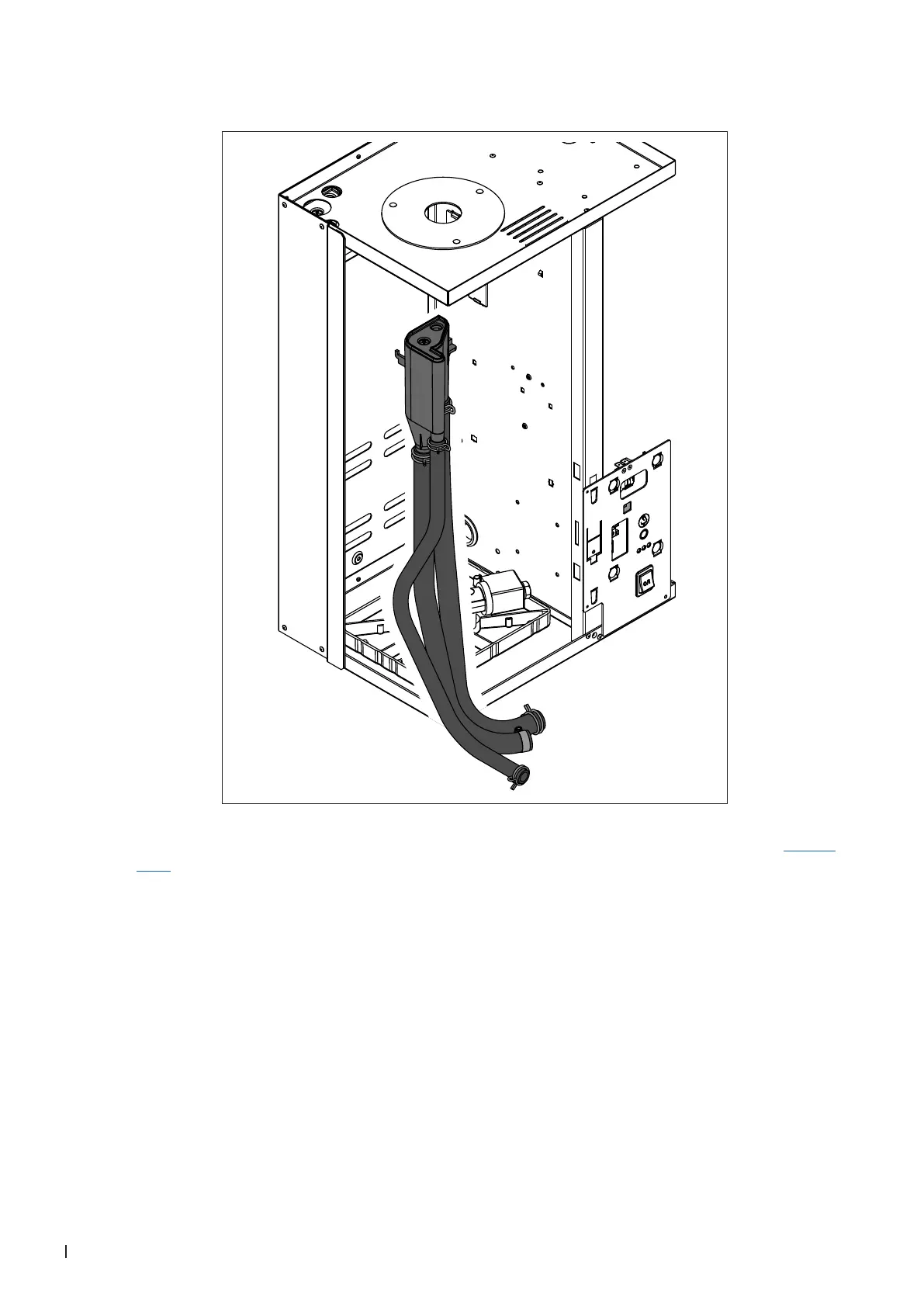

Note: The hoses connected to the water cup may also be removed together with the water cup (see
illustration) and then disconnected from the connectors of the water cup outside the unit.
2. Carefully pull xing clip of the water cup to the front, then push water cup down from the holding
device and remove it to the front.
The installation of the water cup and the water hoses follows the reverse sequence. Before xing the
water hoses to the connector using the hose clamps, align the hoses in a way that they are not twisted.
