Condair Sigma - Water Installation; Overview Water Installation

37Mounting and installation work
5.5 Water installation
5.5.1 Overview water installation
125...1250 µS/cm
1...10 bar
1...40 °C
ø 30 mm
ø14/7 mm
Z261
G 3/4"
G 1/2"
G 3/8"
ø14/7 mm
G 3/4"
G 3/8"
G 3/4"
ø 30 mm
ø 40/31 mm
ø14/7 mm
G 3/4"
G 3/8"
G 3/4"
ø 30 mm
ø 40/31 mm
≥ 40 mm
min. 50 cm

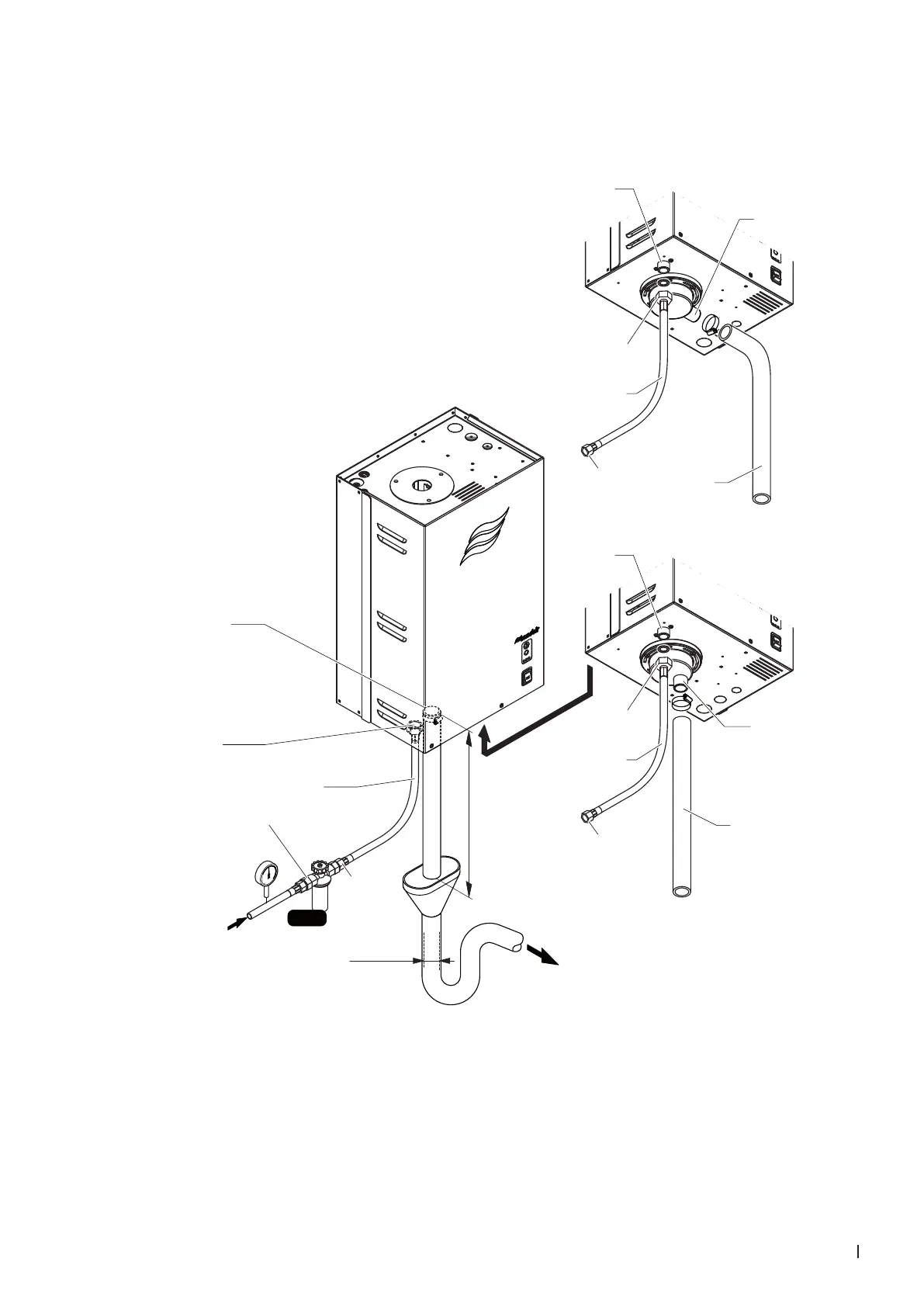

Abb. 14: Overview water installation
