48 Mounting and installation work

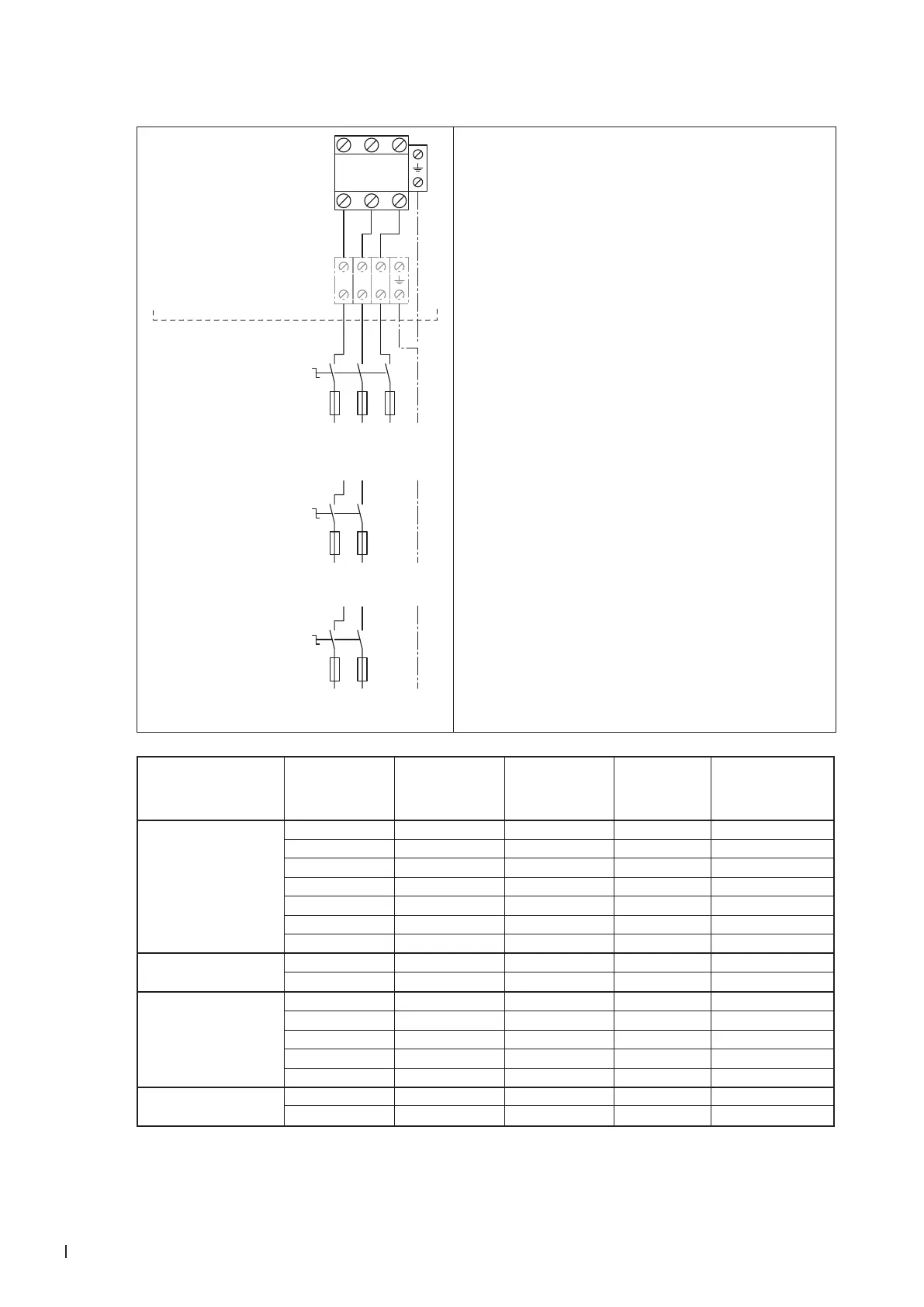

5.6.4.5 Connecting the heating voltage to the Condair Sigma 5-65 kg/h
L1
Q2
K1
THV
F2
L1 L2 L3
L1 L2 L3
L1 L2 L3
400 V/3~/50..60 Hz
230 V/3~/50..60 Hz
Q2
F2
L1 N PE
PE
PE
230 V/1~/50..60 Hz
Q2
F2
L1 L2
400 V/2~/50..60 Hz
Control
compartment
The heating voltage supply (L1, L2, L3 and PE or L1, N
and PE, respectively) is to be connected in accordance
with the wiring diagram to the corresponding terminals
of the main contactor "K1" (or to the corresponding
terminals of the optional terminal strip "THV") in the
control compartment. The connecting cable must be
led through a cable gland into the control compartment.
The installation of the fuses "F2" (fuse values, see the
table below) and the electrical isolator "Q2" (all pole
disconnecting device with a minimum contact clearance
of 3 mm, supplied by others) in the mains supply line
are mandatory.
For safety reasons the additional installation of a residual
current circuit breaker in the mains supply line (supplied
by others) is recommended. However, the local electrical
installation regulations must be observed and adhered to.
The electrical isolator must be mounted in direct prox-
imity of the control compartment (max. distance 1 m)
and must be easily accessible in a height between 0.6
m and 1.9 m (recommended: 1.7 m).
CAUTION! Make sure the voltage indicated on the type
plate meets the local mains voltage. Otherwise, do not
connect the unit.
The cross-section of the mains cable must comply with
the applicable local regulations.
Heating voltage Max.
steam capacity
[kg/h]
Condair Sigma Nominal power
[kW]
Nominal
current
[A]
Main fuse F2
[A]
400V3
(400 V/3~/50...60 Hz)
5 534 3.8 5.4 3x 10
8 834 6.0 8.7 3x 16
15 1534 11.3 16.2 3x 20
23 2364 17.3 24.9 3x 35
32 3264 24.0 34.6 3x 50
45 4564 33.8 48.7 3x 63
65 6564 48.8 70.4 3x 100
400V2
(400 V/2~/50...60 Hz)
5 524 3.8 9.4 2x 16
8 824 6.0 15.1 2x 20
230V3
(230 V/3~/50...60 Hz)
5 532 3.8 9.4 3x 16
8 832 6.0 15.1 3x 20
15 1532 11.3 28.2 3x 35
23 2362 17.3 43.3 3x 63
32 3262 24.0 60.2 3x 80
230V1
(230V/1~/50...60Hz)
5 522 3.8 16.3 25
8 822 6.0 26.1 35
