Condair Sigma - Mounting and Unit Placement

24 Mounting and installation work
5.3 Mounting the unit
5.3.1 Notes on locating the unit
Condair Sigma ...
422 522
524
532
534
822
824
832
834
1532
1534
2362
2364
3262
3264
4564 6564

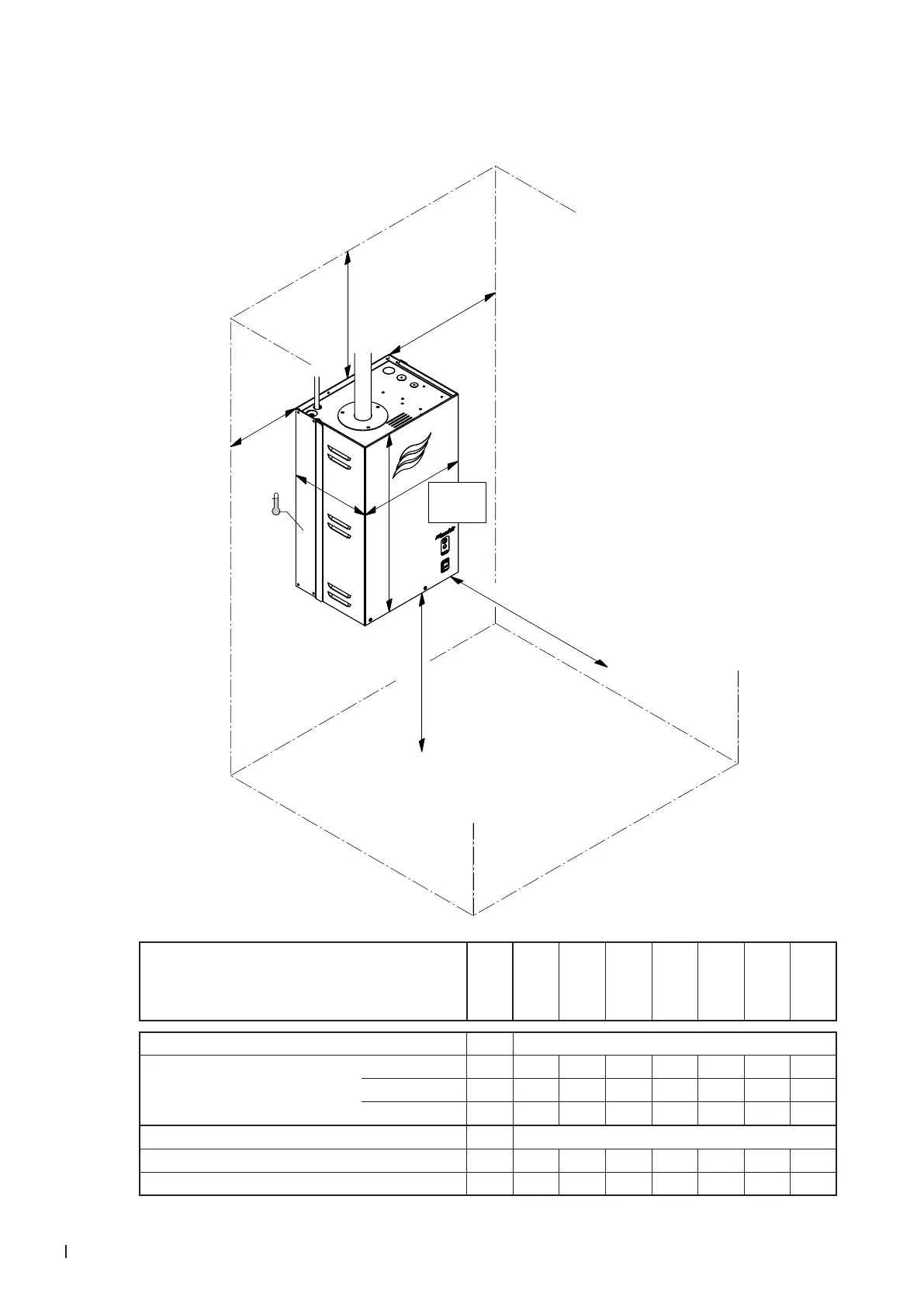

Dimensions
Housing (XxYxZ) in mm 285x205x430 1
377x279x612 1 1 1
492x351x670 1 1 1 1
Weights
Net weight in kg 8 19 19 19 28 28 28 28
Operating weight in kg 13 24 24 30 65 65 65 65
min. 400 mm
min. 600 mm
min. 250 mm
min. 400 mm
min. 600 mm
60...70 °C
1 ... 40 °C
max. 75 %rh
IP20
Z
Y
X
