32 Mounting and installation work

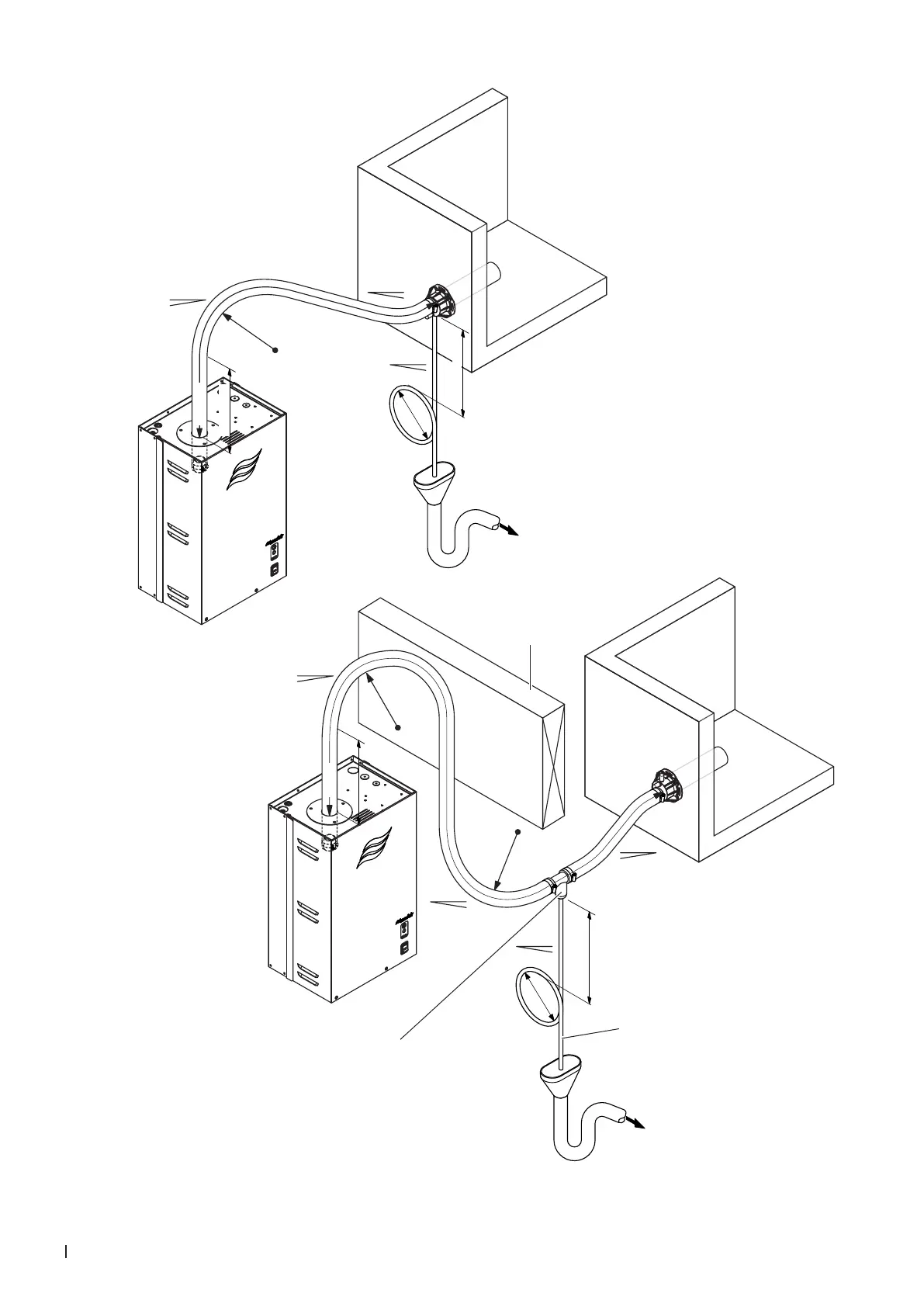

Abb. 11: Steam distributor is mounted less than 500 mm above the top edge of the steam generator
min. 15 %
–
max. 4 m
min. 15 %
+
Rmin. 300 mm
min. 300 mm
min. 15 %
–
Ømin.
200 mm
min. 300 mm
min. 15 %
+
min. 15 %
+
min. 15 %
–
min. 15 %
–
Rmin. 300 mm
Rmin. 300 mm
Ømin.
200 mm
min. 300 mm
max. 4 m
Obstacle
Install condensate drain (full size T)
at the lowest point
Ensure adequate cooling
according to local codes
