- 108 -
-
-
-

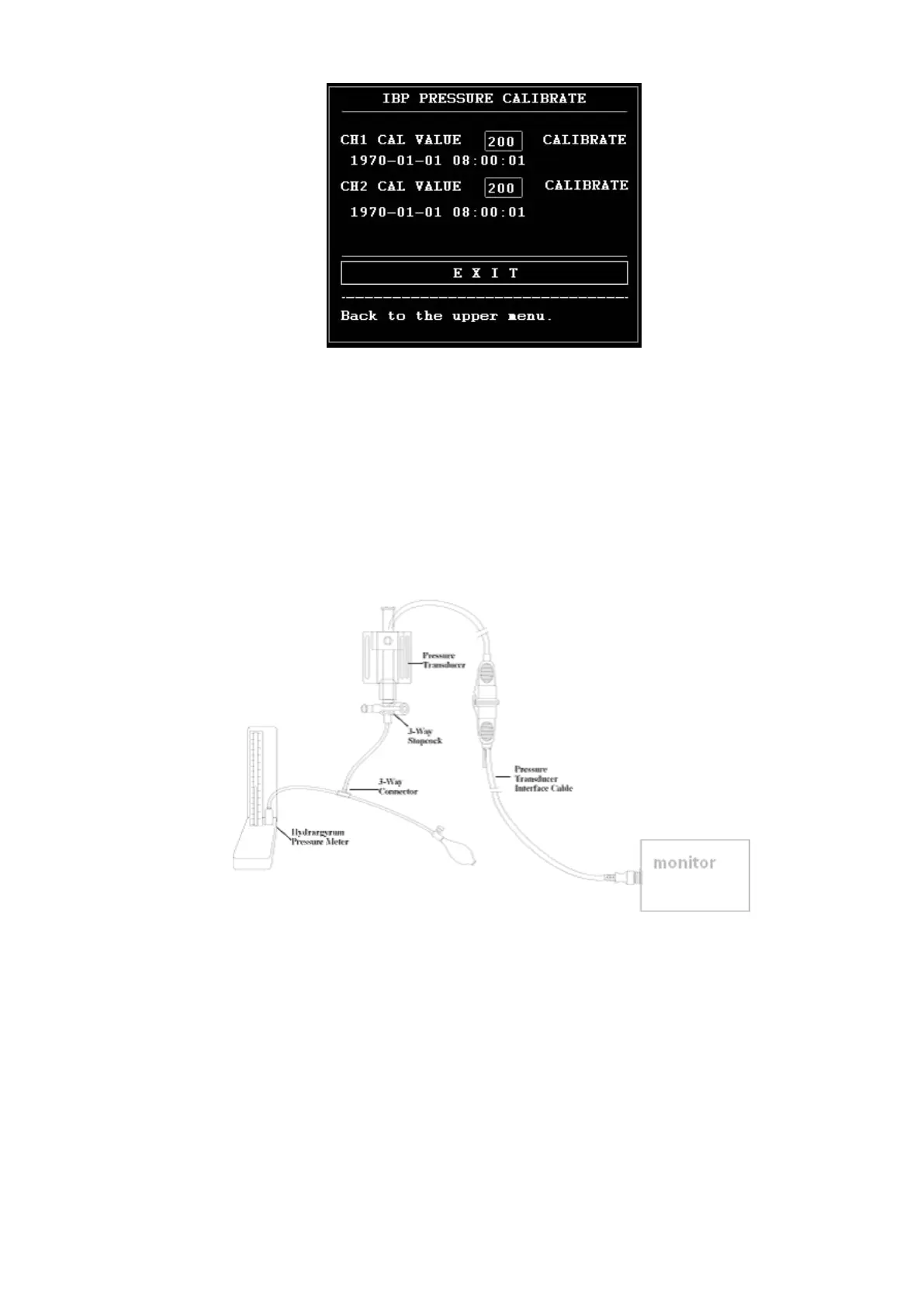

Figure
Figure
Figure
Figure 15
15
15
15 -
-
-
- 6
6
6
6 IBP
IBP
IBP
IBP Calibration
Calibration
Calibration
Calibration Menu
Menu
Menu
Menu
Calibrate
Calibrate
Calibrate
Calibrate the
the
the
the transducer:
transducer:
transducer:
transducer:
Turn the knob to select the item CH1 CAL VALUE, press and turn the knob to select the pressure value
to be calibrated for channel 1. Then turn the knob to select the item CALIBRATE to start calibrating
channel 1.
Turn the knob to select the item CH2 CAL VALUE, press and turn the knob to select the pressure value
to be calibrated for channel 2. Then turn the knob to select the item CALIBRATE to start calibrating
channel 2.
The pressure calibration of the monitor
Figure
Figure
Figure
Figure 15
15
15
15 -
-
-
- 7
7
7
7 IBP
IBP
IBP
IBP Calibration
Calibration
Calibration
Calibration
Caution:
Caution:
Caution:
Caution:
Mercury calibration should be performed by the biomedical engineering department either
whenever a new transducer is used, or as frequently as dictated by your Hospital Procedures
Policy.
The purpose of the calibration is to ensure that the system gives you accurate measurements.
Before starting a mercury calibration, a zero procedure must be performed.
If you need to perform this procedure yourself you will need the following pieces of equipment:
•
Standard sphygmomanometer
•
3-way stopcock
