- 9 -
-
-
-
①
④
②
③
⑥
⑦
⑤
Figure
Figure
Figure

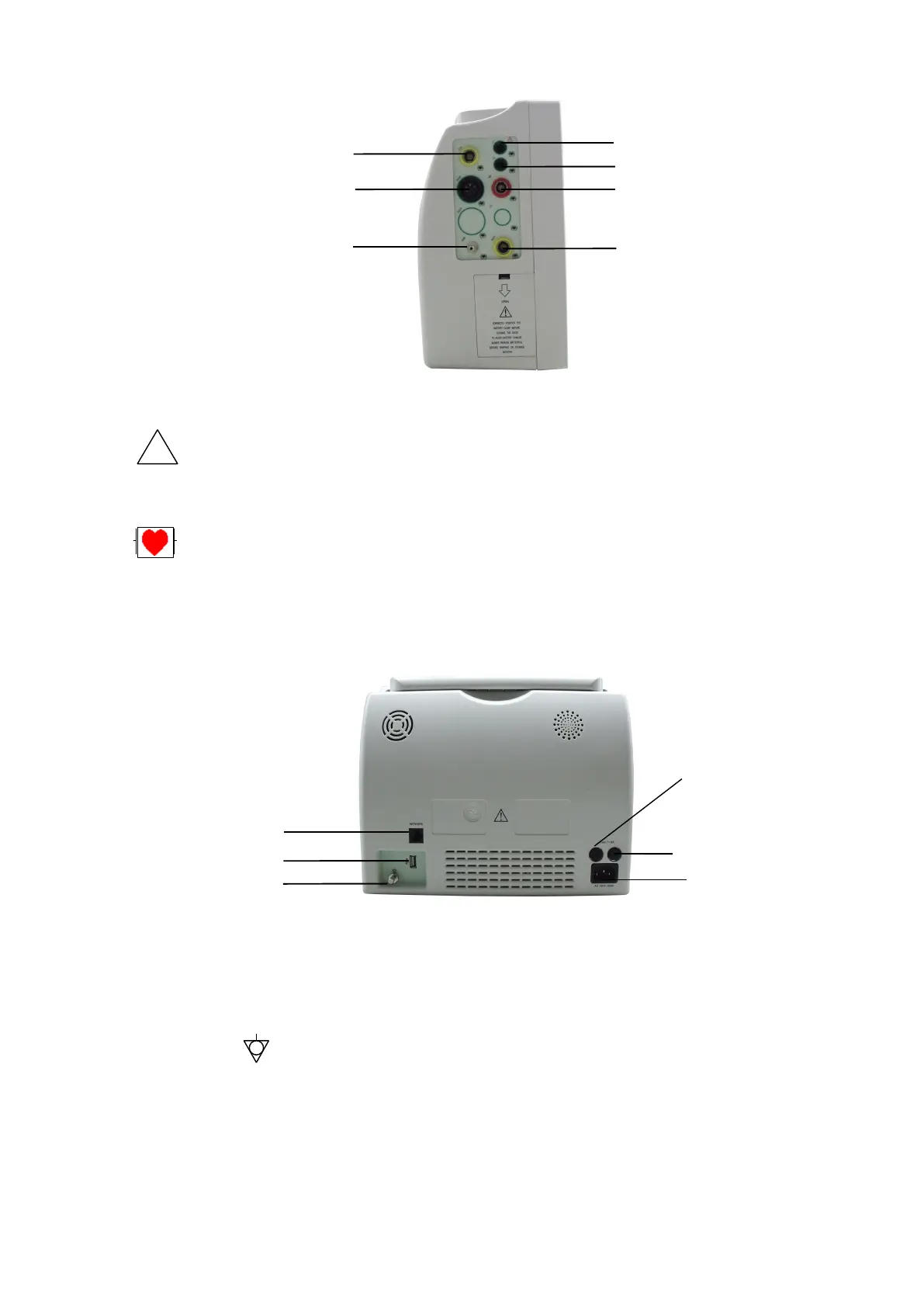

Figure 1-3
1-3
1-3
1-3 Left
Left
Left
Left Side
Side
Side
Side
This symbol means “ BE CAREFUL". Refer to the manual.
Indicates that the instrument is IEC 60601-1 Type CF equipment. The unit displaying this symbol
contains an F-Type isolated (floating) patient applied part providing a high degree of protection against
shock, and is suitable for use during defibrillation.
①
②
③
④
⑤
⑥
Figure
Figure
Figure
Figure 1-4
1-4
1-4
1-4 Rear
Rear
Rear
Rear Panel
Panel
Panel
Panel
On the rear panel are the following sockets, shown in Figure 1-4.
■ Socket ① : Network Interfaces , Standard RJ45 Socket
■ Socket ② : : USB
■ Socket ③ :
Equipotential grounding terminal for connection with the hospital ’ s grounding system
■ Socke t ④⑤ : Fuse , T 1.6A
■ Socke t ⑥ : : Power Supply , 100V~240V ( A C ) , 50/60 (Hz)
！
