Making Assignments
Using this process, three individual assignments are made. The example application wants to
turn on an output when each index completes. Therefore, Index Complete sources will be
assigned to the hardware Output destinations. Figure 88 shows this process.

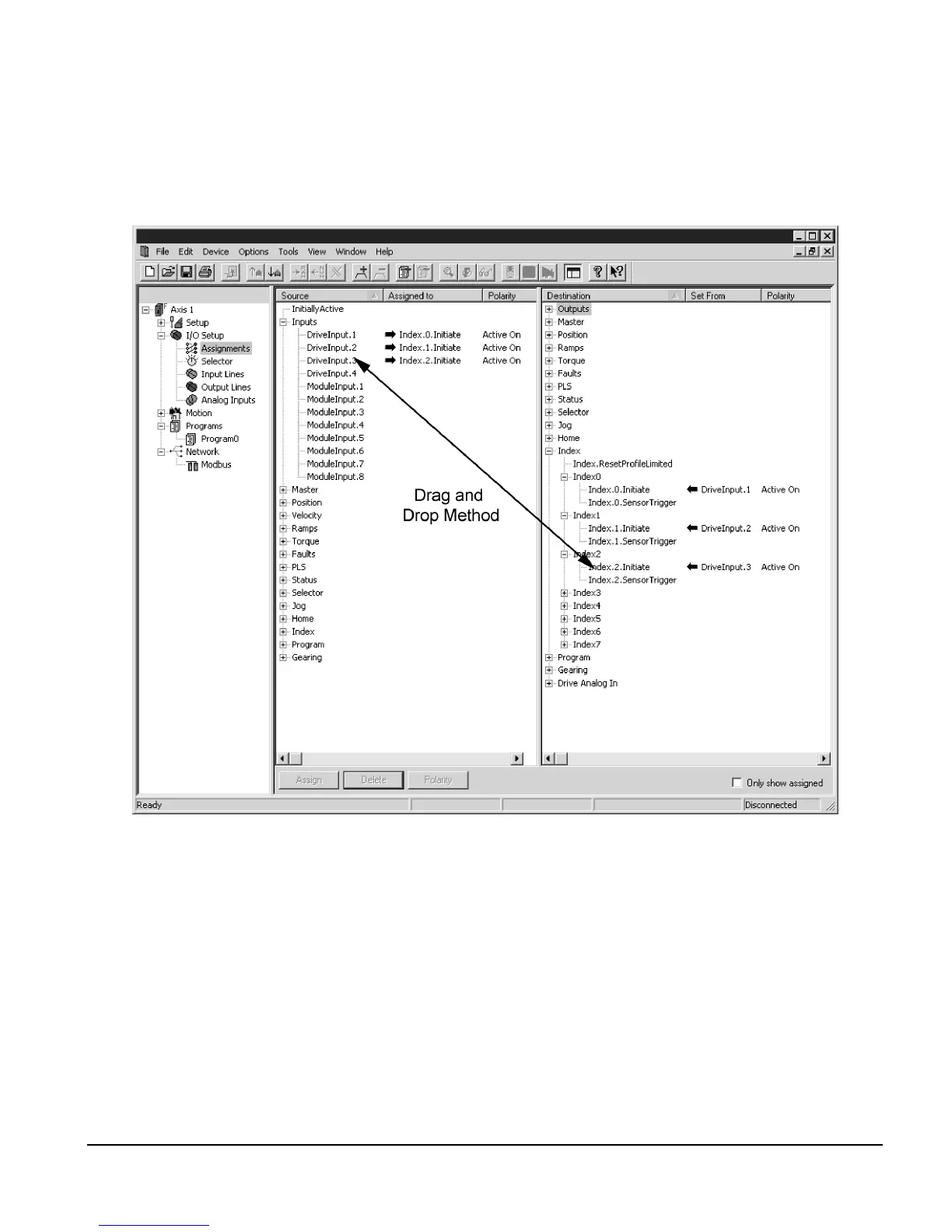

Figure 88: Assignments View
The Input Lines view shows all of the assignments that have been made to the Inputs group
of Sources. After all assignments for the example application have been made, the Input Lines
view should look like Figure 89.
