208
FM-3 Programming Module Reference Manual

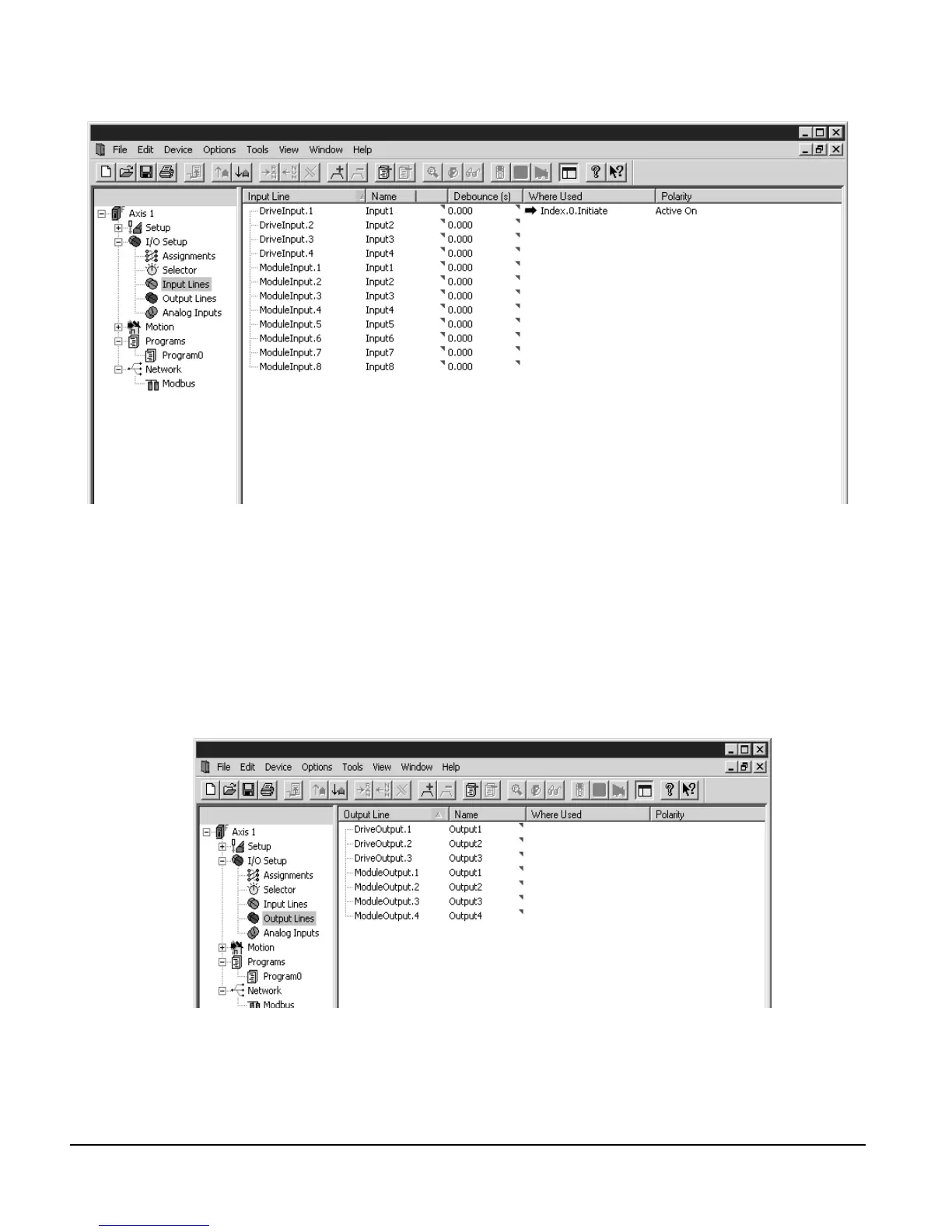

Figure 89: Input Lines View
Notice that a Name can be associated to each input line. Each input line can also have a
debounce time. Figure 89 demonstrates how to enter a debounce time for an input line. The
following parameters have been filled in for each input line:
The Output Lines view shows assignments that have been made to the Outputs group of
Destinations in the assignment view. Assignments to this view are made in the same way as
assignments to the Input Lines view. After all assignments have been made for the example
application, the Output Lines view will look like Figure 90.
Figure 90: Output Lines View
