Menu 23
Parameter
structure
Keypad and
display
Parameter x.00
Parameter description
format
Advanced parameter
descriptions
Serial comms
protocol
Performance
202 Mentor MP Advanced User Guide
www.controltechniques.com Issue Number: 4
IO
5.24 Menu 0 (linear)
Menu 0 is used to bring together various commonly used parameters for
basic easy set up of the drive.
Appropriate parameters are copied from the advanced menus into menu
0 and thus exist in both locations.
For further information, refer to section 5.22 Menu 23 Header
definitions on page 199.

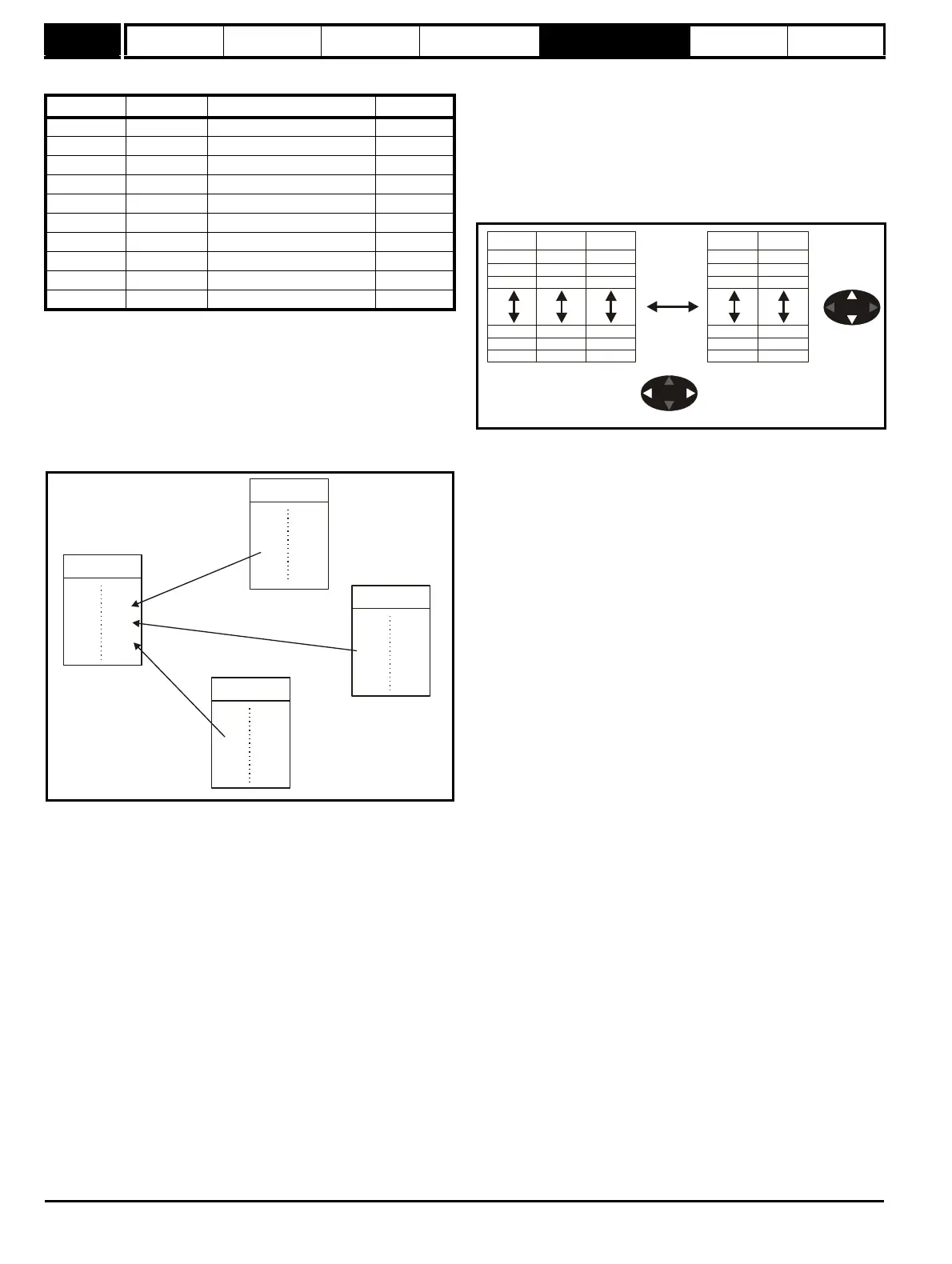

Figure 5-36 Menu 0 copying
5.25 Menu structure
The drive parameter structure consists of menus and parameters.
The drive initially powers up in sub menu mode. Once Level 2 access
(L2) has been enabled (refer to Pr 11.44 (SE14, 0.35) the left and right
buttons are used to navigate between numbered menus.
For further information, refer to section 2.7 Parameter access level and
security on page 13.
Figure 5-37 Menu structure
The menus and parameters roll over in both directions.
For example:
• If the last parameter is displayed, a further press will cause the
display to roll-over and show the first parameter.
When changing between menus the drive remembers which parameter
was last viewed in a particular menu and will display that parameter. The
menus and parameters roll over in both directions.
Menu 0 Parameter Description Display
0.81 7.15 Analog input 3 mode in01
0.82 7.01 Analog input 1 in02
0.83 7.02 Analog input 2 in03
0.84 7.03 Analog input 3 in04
0.85 8.01 I/O state 1 in05
0.86 8.02 I/O state 2 in06
0.87 8.03 I/O state 3 in07
0.88 8.04 I state 4 in08
0.89 8.05 I state 5 in09
0.90 8.06 I state 6 in10
Menu 0
0.04
0.05
0.06
Menu 2
2.21
Menu 1
1.14
Menu 4
4.07
5
0
150
0
150
5
Menu 22 Menu 23Menu 0Menu 1Menu 2
Pr
22.00
Pr
23.00
Pr
0.00
Pr
1.00
Pr
2.00
Pr
22.01
Pr
23.01
Pr
0.01
Pr
1.01
Pr
2.01
Pr
22.02
Pr
23.02
Pr
0.02
Pr
1.02
Pr
2.02
Pr
22.38
Pr
23.09
Pr
0.88
Pr
1.49
Pr
2.39
Pr
22.39
Pr
23.10
Pr
0.89
Pr
1.50
Pr
2.40
Pr
22.40
Pr
23.11
Pr
0.90
Pr
1.51
Pr
2.41
