5.7 Menu 6: Sequencer and clock

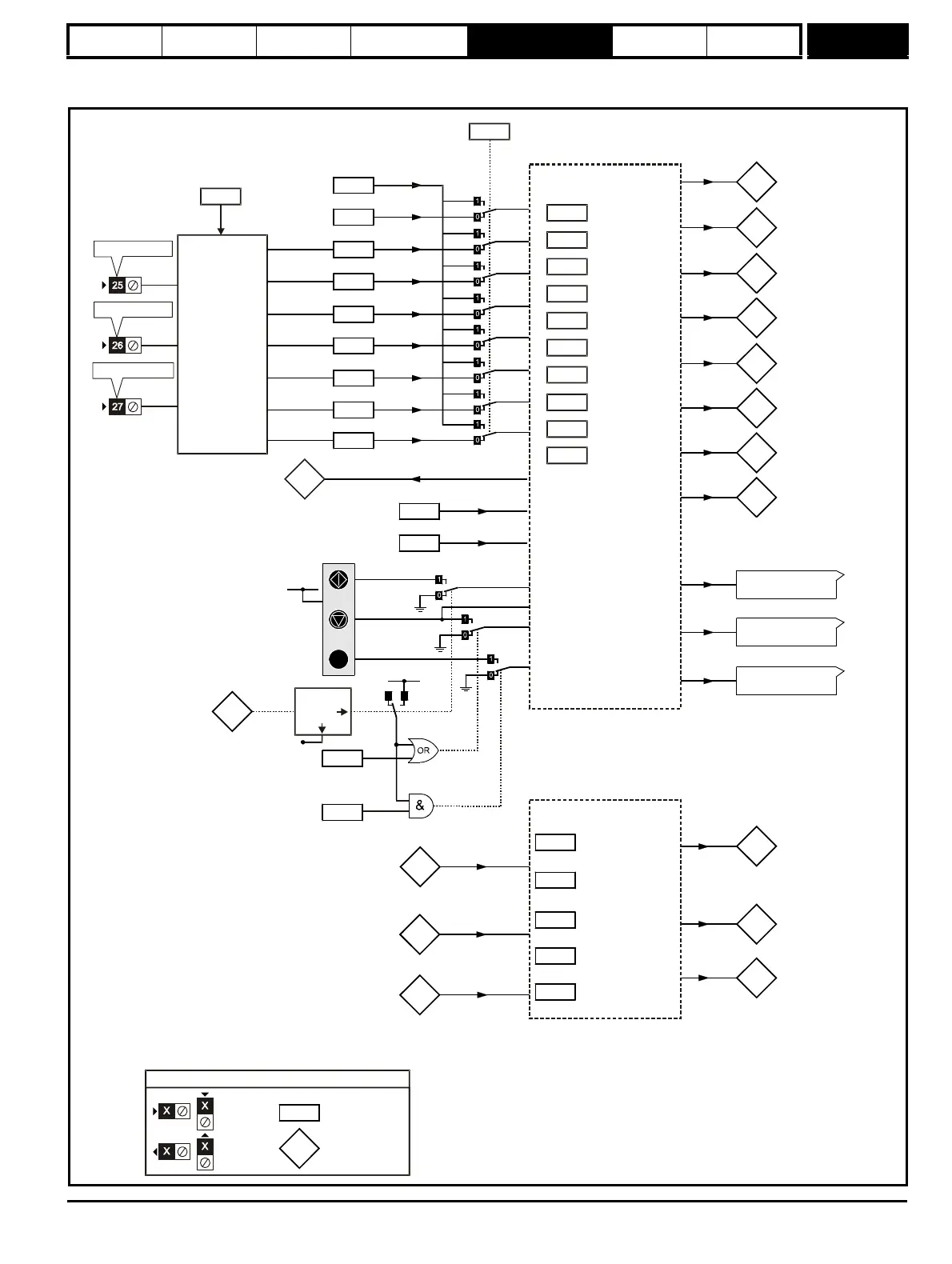

Figure 5-20 Menu 6 logic diagram
6.15
6.30
6.31
6.32
6.33
6.42
6.34
6.37
Logic
1
6.12
Keypad
STOP
key
enable
6.13
Keypad
reverse
key function
2.02
Ramp enable/disable
3.23
Hard speed
reference disable
13.10
Position control
RUN
STOP/
RESET
User defined
RESET
1.49
Reference
selected
indicator
Logic 1
6.17
Power
consumption
meter reset
6.18
Time
interval
between
filter changes
6.19
Filter
change
required/done
6.28
Select clock for trip
log time stamp
6.16
Electricity cost
per kWh
Clock control
6.24
6.25
Power
meter
6.26
Running
cost
6.27
Time
before
filter
change due
Enable
6.15
6.20
6.21
Power-up
time
6.22
6.23
Run-time
5.03
Motor
power
0.XX
0.XX
Key
Read-write
(RW)
parameter
Read-only (RO)
parameter
Input
terminals
Output
terminals
The parameters are all shown at their default settings
6.43
01
Jog reverse
Run
Forward / Reverse
Run reverse
Jog forward
Run forward
Drive enable
Control word
Control word
enable
6.35
6.36
Limit switch 2
Limit switch 1
6.29
Hardware
enable
Menu 8
6.04
Stop / Start
select
Sequencer
6.01
6.03
6.08
6.09
6.40
Stop mode
selector
Mains loss
mode
Hold zero
speed enable
Catch a
spinning motor
Enable sequencer
latching
T25 digital I/O 2
T26 digital I/O 3
T27 digital input 4
6.39
Not stop
6.04
6.52
Start/stop logic
select
Zero reference
interlock
6.54
6.55
Run rising
edge delay
Contactor active
6.56
Drive active falling
edge delay
1.11
Reference
enabled
indicator
1.12
Reverse
selected
indicator
1.13
Jog
selected
indicator
13.18
Relative jog
enable
13.19
Relative jog
reverse select
Speed error invert
Flux demand invert
Pr = 4? 1.49
Yes
No
