Parameter structure Keypad and display Parameter x.00
Parameter description
format
Advanced parameter
descriptions
Serial comms
protocol
Performance
Mentor MP Advanced User Guide 9
Issue Number: 4 www.controltechniques.com
2 Keypad and display
The red stop button is also used to reset the drive.
The SM-Keypad and the MP-Keypad can indicate when a SMARTCARD access is taking place or when the second motor map is active (menu 21).
These are indicated on the displays as follows:
2.2 Keypad operation
Control buttons
The keypad consists of:
1. Joypad - used to navigate the parameter structure and change parameter values.
2. Mode button - used to change between the display modes – parameter view, parameter edit, status.
3. Three control buttons - used to control the drive if keypad mode is selected.
4. Help button (MP-Keypad only) - displays text briefly describing the selected parameter.
The Help button toggles between other display modes and parameter help mode. The up and down functions on the joypad scroll the help text to
allow the whole string to be viewed. The right and left functions on the joypad have no function when help text is being viewed.
The display examples in this section show the SM-Keypad, seven segment, LED display. The examples are the same for the MP-Keypad, The
exceptions is that the information displayed on the lower row on the SM-Keypad is displayed on the right hand side of the top row on the MP-Keypad.
2.1 Understanding the display
There are two types of keypad available for the Mentor MP. The SM-Keypad has an LED display, and the MP-Keypad has an LCD display.
2.1.1 SM-Keypad (LED)
The display consists of two horizontal rows of 7 segment LED displays.
The upper display shows the drive status or the current menu and
parameter number being viewed.
The lower display shows the parameter value or the specific trip type.
2.1.2 MP-Keypad (LCD)
The display consists of three lines of text.
The top line shows the drive status or the current menu and parameter
number being viewed on the left, and the parameter value or the specific
trip type on the right.
The lower two lines show the parameter name or the help text.

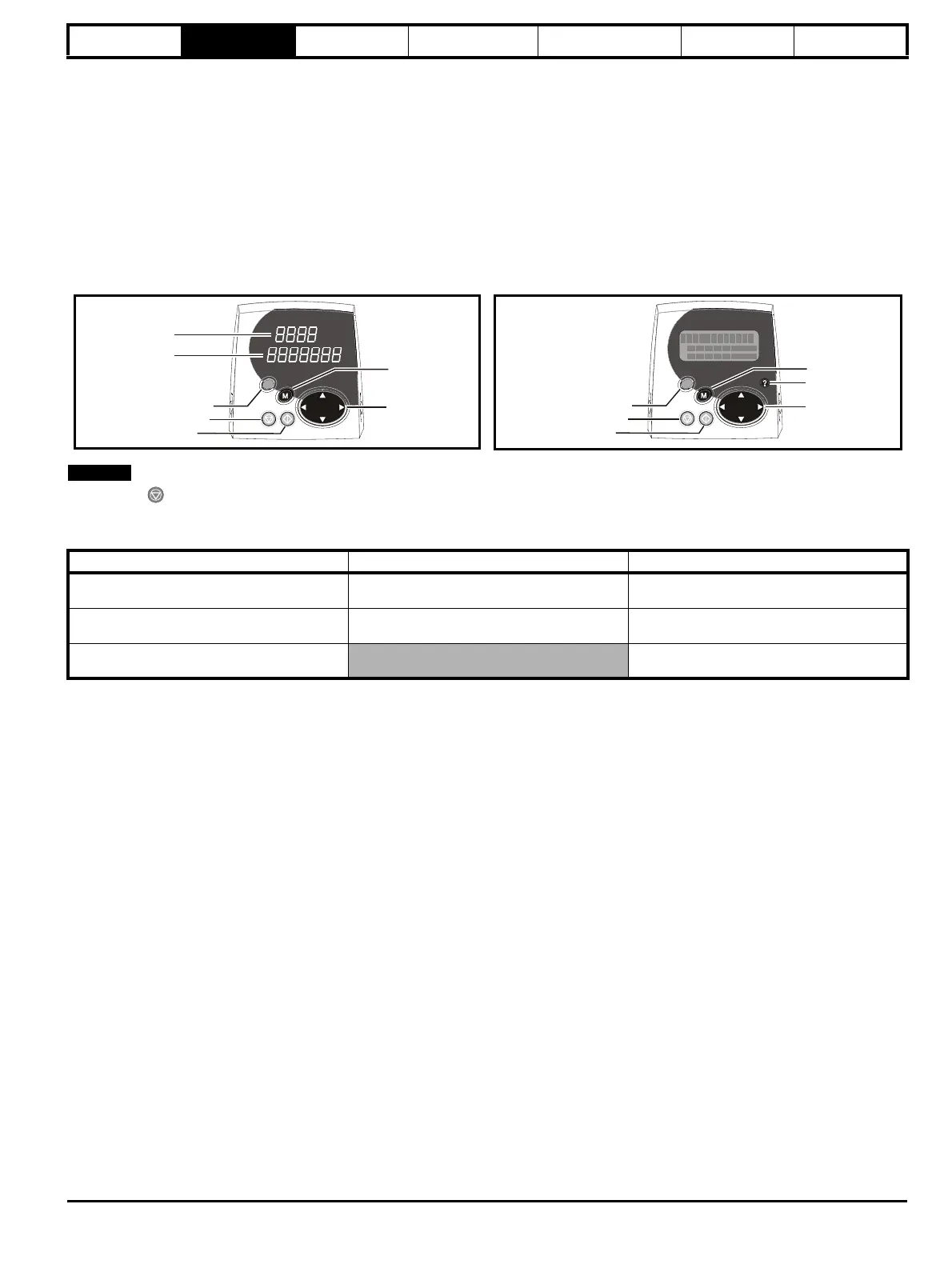

Figure 2-1 SM-Keypad Figure 2-2 MP-Keypad
Upper display
Lower display
Mode (black) button
Joypad
User defined Rev (blue) button
Stop/reset (red) button
Start (green) button
Control buttons
Mode (black) button
Joypad
Stop/reset (red) button
Start (green) button
Control buttons
Help button
User defined Rev (blue) button
SM-Keypad MP-Keypad
SMARTCARD access taking place
The decimal point after the fourth digit in the
upper display will flash.
The symbol ‘CC’ will appear in the lower left
hand corner of the display
Second motor map active
The decimal point after the third digit in the
upper display will flash
The symbol ‘Mot2’ will appear in the lower left
hand corner of the display
Solutions Module parameters displayed
The symbol ‘Opx’ will appear in the left hand
corner of the display
NOTE
