Mentor MP Advanced User Guide 7
Issue Number: 4 www.controltechniques.com
Diagnostic
Trips
Speed loop
Serial interface
Speed feedback
IO
For more information on the sub block function please refer to Menu 23.
1.3 Menu 0 (linear)
Menu 0 is used to bring together various commonly used parameters for
basic easy set up of the drive.
Appropriate parameters are copied from the advanced menus into menu
0 and thus exist in both locations.
For further information, refer to section 1.1 Menu 0 (sub block) on
page 5.

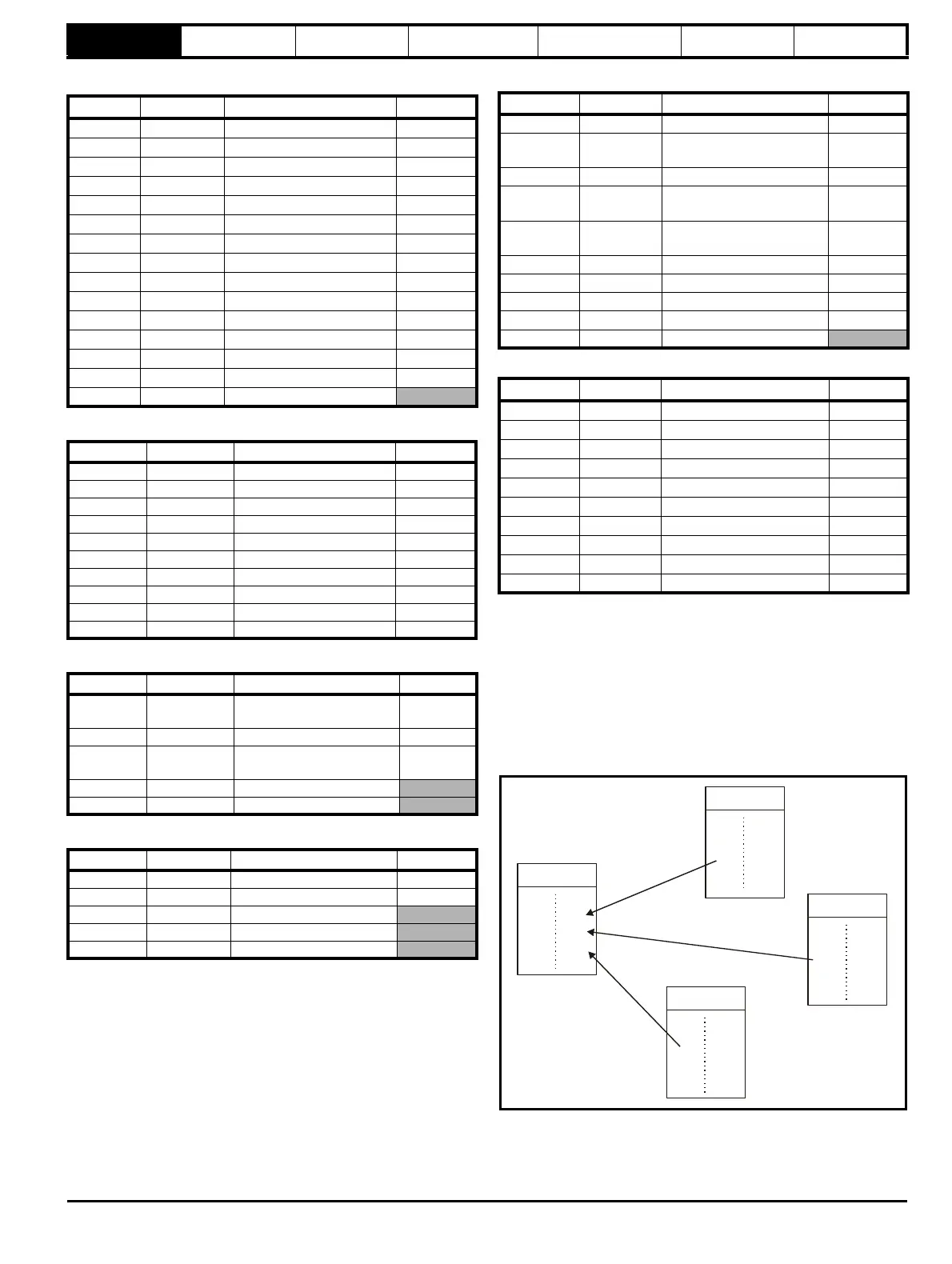

Figure 1-4 Menu 0 copying
Menu 0 Parameter Description Display
0.36 1.01 Speed reference selected di01
0.37 1.03 Pre-ramp reference di02
0.38 2.01 Post ramp reference di03
0.39 3.01 Final speed reference di04
0.40 3.02 Speed feedback di05
0.41 3.04 Speed controller output di06
0.42 4.03 Torque demand di07
0.43 4.01 Current magnitude di08
0.44 5.56 Field current feedback di09
0.45 5.02 Armature voltage di10
0.46 1.11 Reference enabled indicator di11
0.47 1.12 Reverse selected indicator di12
0.48 1.13 Jog selected indicator di13
0.49 11.29 Software version di14
0.50 0.00 Spare
Menu 0 Parameter Description Display
0.51 10.20 Trip 0 tr01
0.52 10.21 Trip 1 tr02
0.53 10.22 Trip 2 tr03
0.54 10.23 Trip 3 tr04
0.55 10.24 Trip 4 tr05
0.56 10.25 Trip 5 tr06
0.57 10.26 Trip 6 tr07
0.58 10.27 Trip 7 tr08
0.59 10.28 Trip 8 tr09
0.60 10.29 Trip 9 tr10
Menu 0 Parameter Description Display
0.61 3.10
Speed controller
proportional gain
SP01
0.62 3.11
Speed controller integral gain SP02
0.63 3.12
Speed controller differential
feedback gain
SP03
0.64 0.00 Spare
0.65 0.00 Spare
Menu 0 Parameter Description Display
0.66 11.25 Baud rate Si01
0.67 11.23 Serial address Si02
0.68 0.00 Spare
0.69 0.00 Spare
0.70 0.00 Spare
Menu 0 Parameter Description Display
0.71 3.26 Speed feedback selector Fb01
0.72 3.51
Tachometer rating (V/1000
rpm)
Fb02
0.73 3.53 Tachometer input mode Fb03
0.74 3.52
Tachometer speed
feedback
Fb04
0.75 3.34
Drive encoder lines per
revolution
Fb05
0.76 3.36 Encoder supply Fb06
0.77 3.38 Encoder type Fb07
0.78 3.39 Encoder termination select Fb08
0.79 3.27 Encoder speed feedback Fb09
0.80 0.00 Spare
Menu 0 Parameter Description Display
0.81 7.15 Analog input 3 mode in01
0.82 7.01 Analog input 1 in02
0.83 7.02 Analog input 2 in03
0.84 7.03 Analog input 3 in04
0.85 8.01 I/O state 1 in05
0.86 8.02 I/O state 2 in06
0.87 8.03 I/O state 3 in07
0.88 8.04 I state 4 in08
0.89 8.05 I state 5 in09
0.90 8.06 I state 6 in10
Menu 0
0.04
0.05
0.06
Menu 2
2.21
Menu 1
1.14
Menu 4
4.07
5
0
150
0
150
5
