1 Parameter structure
The drive parameter structure consists of menus and parameters.
The drive initially powers up in sub menu mode. Once Level 2 access
(L2) has been enabled (refer to Pr 11.44 (SE14, 0.35)) the left and right
buttons are used to navigate between numbered menus.
For further information, see section 2.7 Parameter access level and
security on page 13.

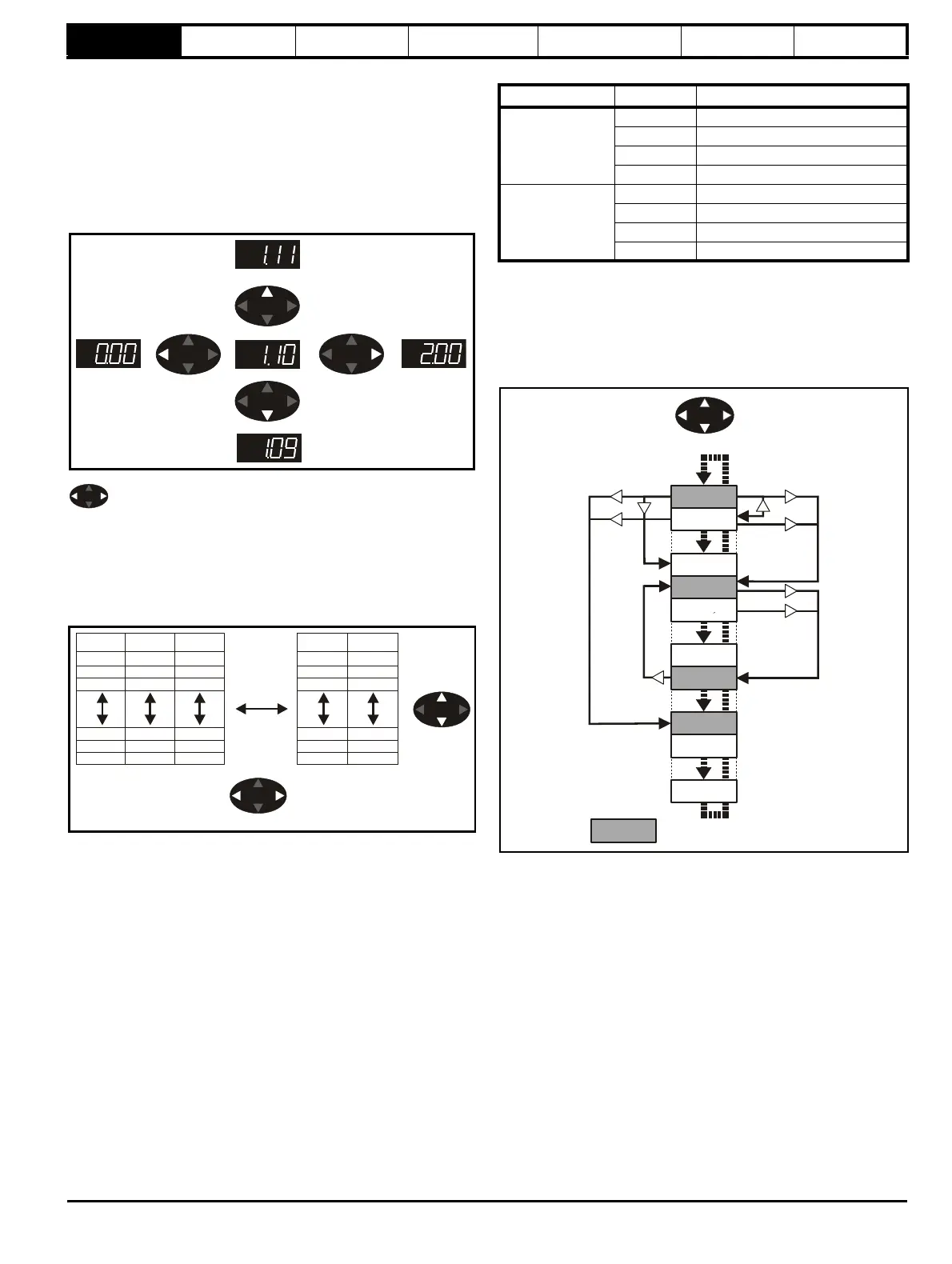

Figure 1-1 Parameter navigation
* can only be used to move between menus if L2 access has
been enabled (refer to Pr 11.44 (SE14, 0.35).
The menus and parameters roll over in both directions; i.e. if the last
parameter is displayed, a further press will cause the display to rollover
and show the first parameter.
When changing between menus the drive remembers which parameter
was last viewed in a particular menu and thus displays that parameter.
Figure 1-2 Menu structure
1.1 Menu 0 (sub block)
Menu 0 can be accessed by 2 methods:
1. Pr 11.44 (SE14, 0.35) = 0. Sub block mode.
2. Pr 11.44 (SE14, 0.35) <>0. Linear mode.
Menu 23 contains the parameters to allow menu 0 to be customized in
sub block mode. The first sub block is a user defined area (USEr) which
is configured by the parameters in menu 22. As default there are no
parameters configured to the user sub block and so it is empty. The next
7 sub blocks are pre-defined. Access to the pre-defined blocks is
enabled or disabled by Pr 23.03 to Pr 23.09.
Movement between sub blocks is achieved with the left and right keys.
Pr 23.01 contains all the sub block headers.
Table 1-1 and Figure 1-3 show the result of the direction keys when
Pr 11.44 (SE14, 0.35) is set to L1 (0). When Pr 11.44 (SE14, 0.35)is not
0 the left and right keys will allow access to the advance parameter set
and menu 0 will become a linear menu.
Table 1-1 Keypad navigation
When moving to the user block header, the user block header is only
displayed if there are some valid parameters in the block. When moving
between pre-defined header blocks the pre-defined header block is only
displayed if the pre-defined block is enabled.
When moving between parameters within a block, only valid parameters
are displayed.
Figure 1-3 Sub block navigation
Menu 22 Menu 23Menu 0 Menu 1 Menu 2
Pr
22.00
Pr
23.00
Pr
0.00
Pr
1.00
Pr
2.00
Pr
22.01
Pr
23.01
Pr
0.01
Pr
1.01
Pr
2.01
Pr
22.02
Pr
23.02
Pr
0.02
Pr
1.02
Pr
2.02
Pr
22.38
Pr
23.09
Pr
0.88
Pr
1.49
Pr
2.39
Pr
22.39
Pr
23.10
Pr
0.89
Pr
1.50
Pr
2.40
Pr
22.40
Pr
23.11
Pr
0.90
Pr
1.51
Pr
2.41
Moves
between
parameters
Moves between Menus
Starting location Action Finishing location
Header
Right Next header
Left Previous header
Up First parameter in header block
Down Last parameter in header block
Parameter
Right Next header
Left Previous header
Up Next parameter in header block
Down Previous parameter in header block
SEt UP
diAGnoS
inPut
Headers
triPS
SE00
SE13
di01
di14
in01
in10
