Control Techniques UD70 User Manual

UD70
Issue code: 70nu2
Installation 2-3
Downloading the system file
The UD70 has no pre-loaded system software. The first task is to program
the system software using the DPL Toolkit. Use the following procedure:
1 Connect the serial communications cable to the UD70.
2 Apply AC power to the Drive.
3 In Windows 3.xx Program Manager, or in the Windows 95 Start menu,
click on:

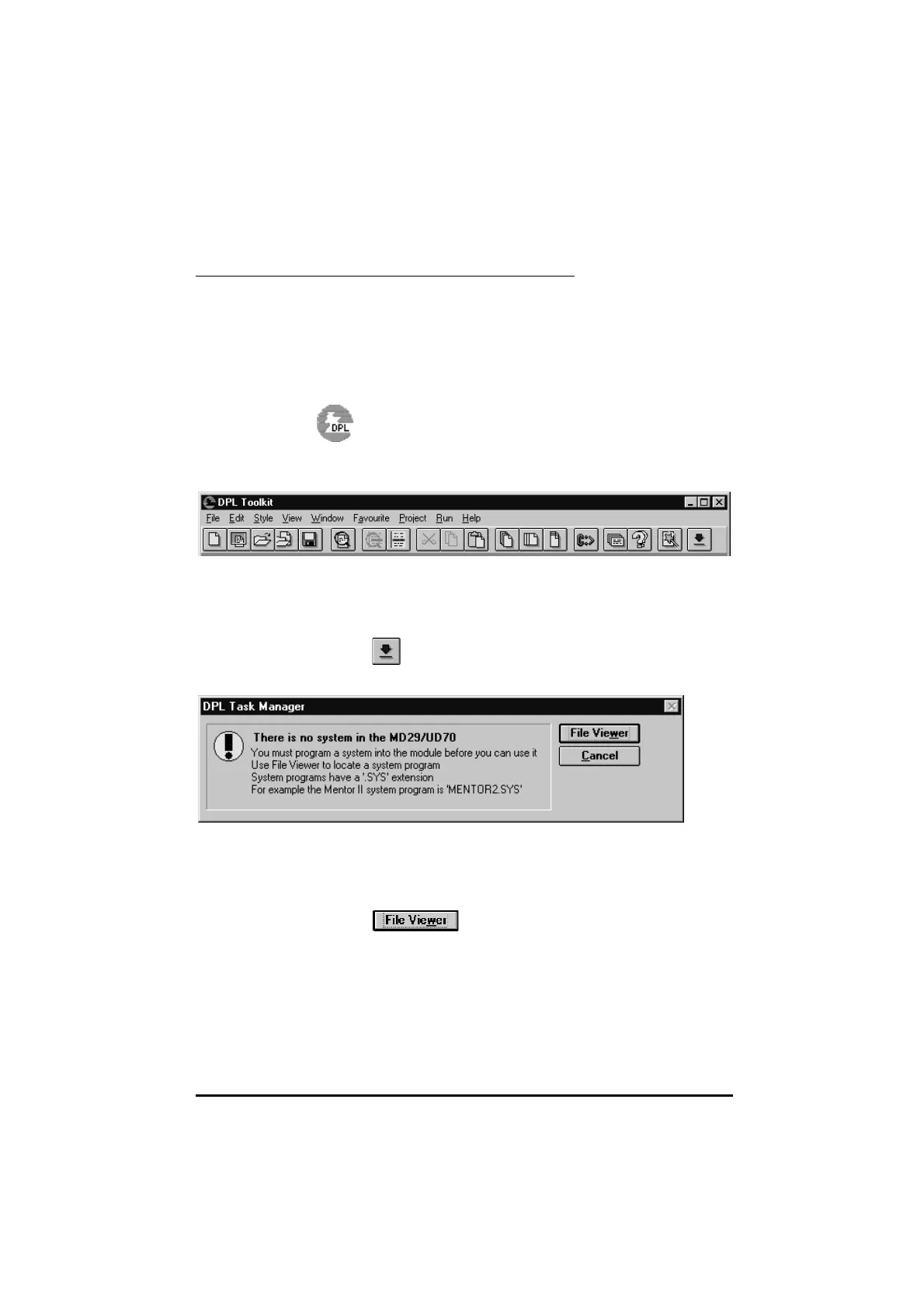

The DPLDPL Toolkit Toolkit window appears. At the top of the window are a
menu bar and toolbar.
4 If the serial port of the host PC is not COM1, open the ProjectsProjects menu
and select ConfigureConfigure. In the drop-down menu that appears, select
ComportComport. This opens a further drop-down menu which allows
selection of the required communications port.
5 Click on (Open Task ManagerOpen Task Manager). After a few moments, the DPLDPL
Task ManagerTask Manager dialog box appears.
If the dialog box does not appear, and all the buttons in the lower
toolbar of the window appear shaded (inactive), communications
could not be established with the
UD70. Check the connecting cable is
correct, and the correct
COM port is used.
6 Click on . The File Viewer File Viewer dialog box appears.
