DPL toolkit 5-1
5 DPL Toolkit
This chapter describes operation of the DPL Toolkit, compiling of programs,
and the debugging facilities.
5.1 Overview of the DPL Toolkit
The DPL Toolkit enables the user of the UD70 to amend, write and download
programs to the UD70. The Toolkit consists of a set of compilation tools
and a comprehensive editor and debugger.

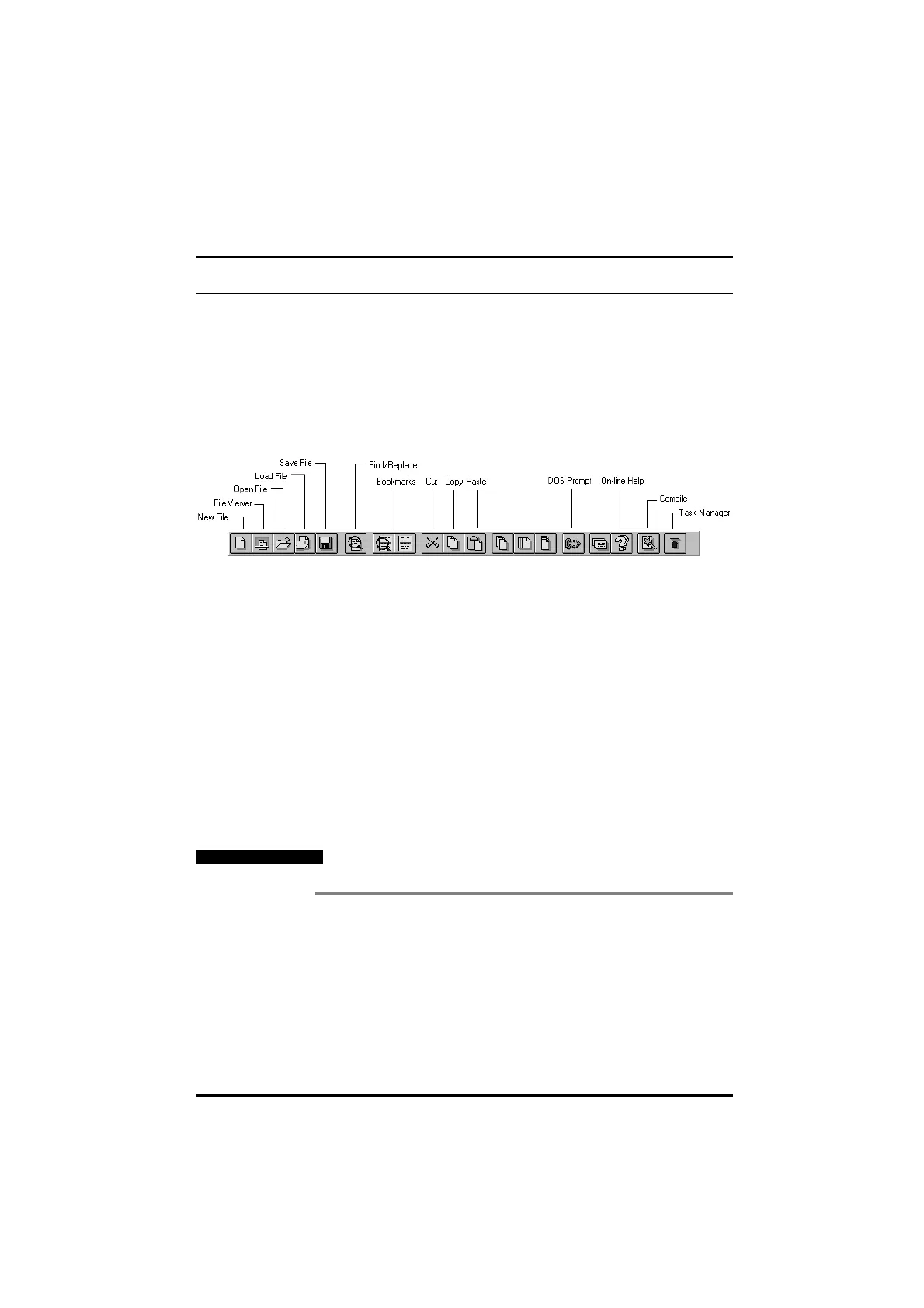

Main toolbar of the DPL ToolkitMain toolbar of the DPL Toolkit
The compilation tools enable the user to perform the following:
• Develop and edit real-time programs for the
UD70.
• Cut and copy program text to the Windows clipboard.
• Paste program text from the Windows clipboard.
• Load an existing program from the
UD70.
• Compile the program into machine code.
The debug facility has the following tools:
• Read the values of the Drive parameters on the screen and edit the
values while the
DPL program is running.
• Read the values of the Variable parameters on the screen and edit
the values while the
DPL program is running.
• Single-step mode for program checking.
• Breakpoints.
Note
Only one program can be stored in the UD70 at any one time.
