UD70
Issue code: 70nu2
1-2 Introduction

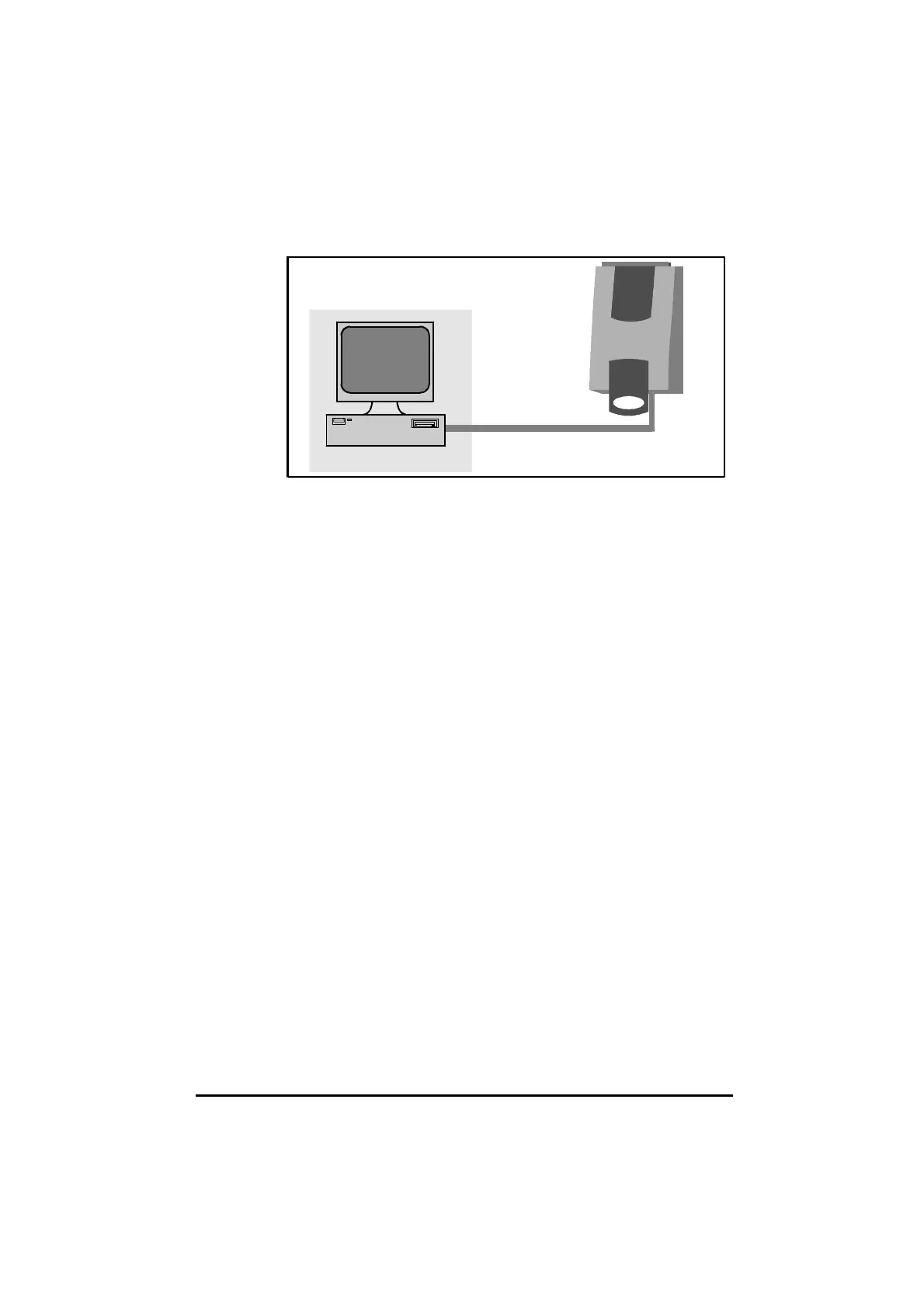

UD70 connected to a host computer by a serial link
1.2 Memory
The compiled UD70 program and the user-created source program are
stored in non-volatile EEPROM memory on the UD70 card. This type of
memory allows the programs to be loaded using the serial port.
Latest versions of programs can be easily updated without removing any
integrated circuits or without using any specialized programming equipment.
The filing system of the
UD70 allows only one program to be stored in the
UD70 at any one time.
The compiled program can be stored along with the DPL source code. This
allows the site engineer to read the program stored in the
UD70, even if the
program is not on the host PC. (This option can be disabled if it is not required.)
1.3 PC requirements
The minimumminimum requirement for the DPL Toolkit is as follows:
IBM AT compatible 386SX PC, Windows™ 3.1, 4Mb RAM, DOS5
A 486
PC with 8MB RAM is recommended
1.4 Technical data for the UD70
Intel 960 32-bit RISC processor
96kb of user program storage
8kb user
RAM
16MHz clock
RS232 port for programming (IBM AT compatible)
RS485 optically isolated port for permanent serial communications
1.5 User knowledge
This User Guide assumes that the user has at least superficial knowledge of
Microsoft® Windows™. Refer to the Windows User’s Guide for specific
information on performing operations in Windows™.
