Crestron TSS-7 User Manual

74 • TSS-7/TSS-10 Supplemental Guide — Doc. 8327D
5. Reboot the touch screen. The Zoom Rooms application user interface is displayed on
the touch screen following the reboot.

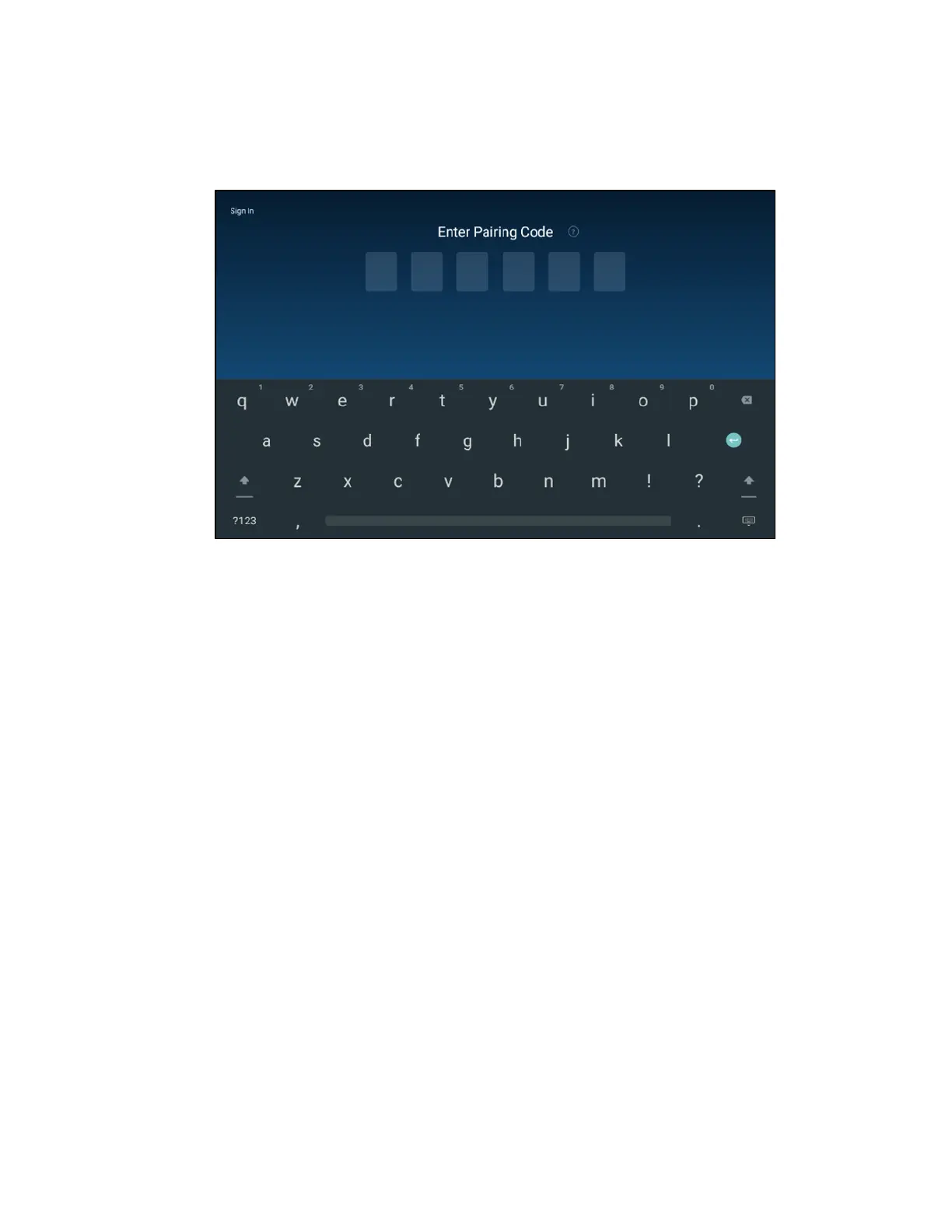

ZoomRooms User Interface
6. Connect to the Zoom Rooms PC using one of the following methods:
l Use the on-screen keyboard to enter the pairing code for the Zoom Rooms
account. Obtain the pairing code from the IT (Information Technology)
department responsible for the Zoom Rooms deployment.
l Tap Sign In on the top left of the screen, and then enter the email address and
password for the Zoom Rooms account (supplied by your IT department). Tap
< Pairing Code to return to the pairing code screen.

Crestron TSS-7 Specifications

General

HD type	WSVGA
Panel type	TFT
Screen shape	Flat
LED backlight	Yes
Backlight type	Edge LED
Display diagonal	7 \
Touch technology	Multi-touch
Touchscreen type	Multi-user
Display brightness	350 cd/m²
Display resolution	1024 x 600 pixels
Display technology	LCD
Native aspect ratio	17:10
Touchscreen technology	Projected capacitive system
Contrast ratio (typical)	1100:1
Display number of colors	16.78 million colors
Display diagonal (metric)	17.8 cm
Viewing angle, horizontal	160 °
Number of simultaneous touchpoints	5
Certification	UL®, CE, IC, FCC Part 15 Class B
Product color	Black
Housing material	Plastic
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90 %
Number of OSD languages	18
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DAN, DEU, DUT, ENG, ESP, FRE, ITA, JPN, KOR, NOR, POR, SWE
Bundled software	Crestron Fusion® software, Microsoft Exchange Server® / Office 365® software, Google Calendar™ / G Suite™ software, CollegeNET® 25Live® software, Ad Astra™
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Sustainability certificates	CE
NVIDIA G-SYNC	No

Weight and Dimensions

Depth (without stand)	39 mm
Width (without stand)	194 mm
Height (without stand)	122 mm
Weight (without stand)	400 g
