14-25
14. PERIODIC SERVICE
Sc2400 Operator’s Manual
■ Cleaning the Air Cleaner Element
Be careful to avoid injury:
●Touching hot surfaces can lead to skin burn. If
the engine has been running, the engine and its
components will remain hot. Before servicing,
allow the engine to cool off.
IMPORTANT: Avoid damage.
A damaged cleaner element may fail to catch dirt and
dust, and contaminants can enter the engine:
●NEVER wash the air cleaner element.
●NEVER attempt to clean the air cleaner element by
tapping against another object.
●ALWAYS replace the air cleaner element when it is
contaminated, damaged or the seal is cracked.

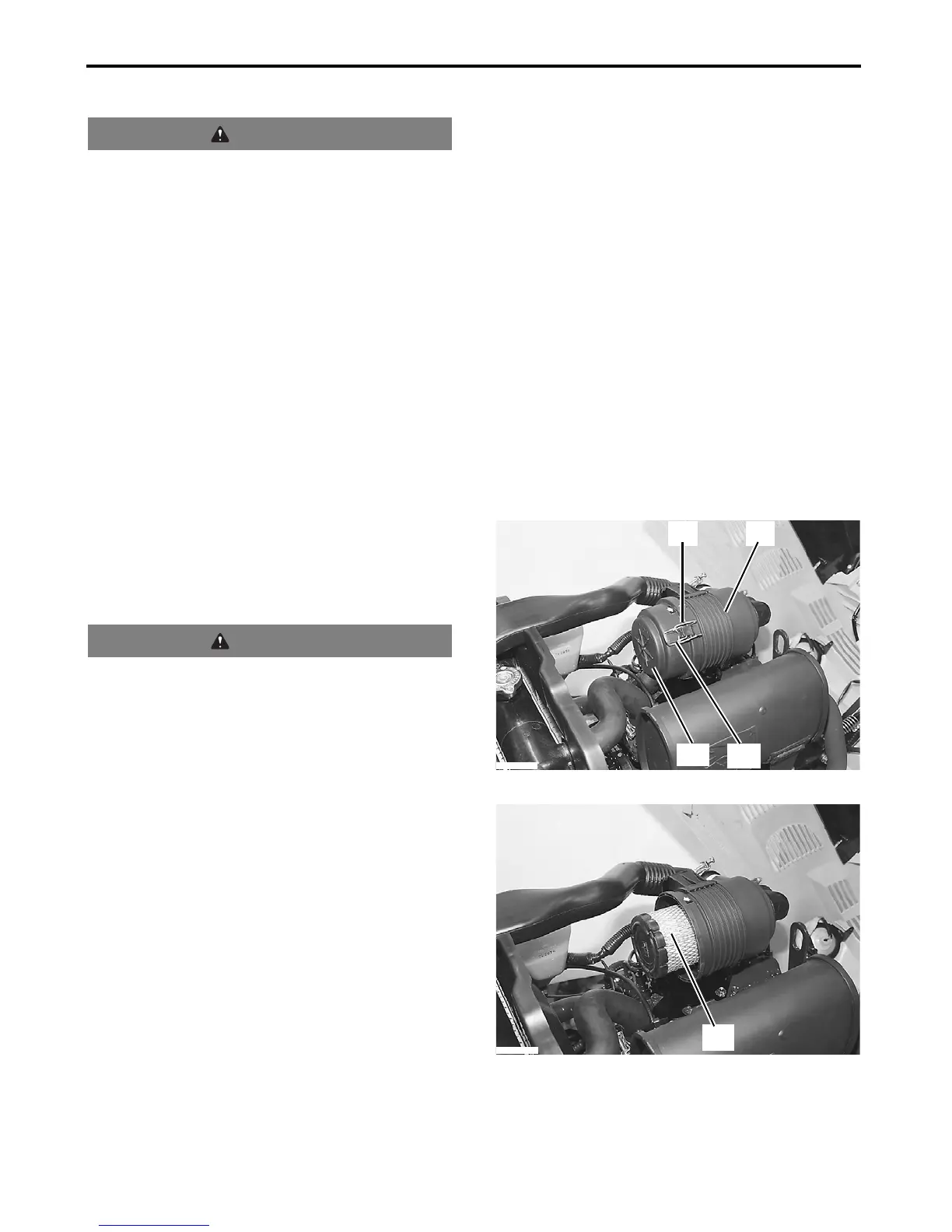

1. Servicing the Air Cleaner Element
1. Park the tractor safely and securely.
2. Allow the engine to cool off.
3. Open the hood.
4. Release the two latches that secure the canister
cover to the air cleaner canister.
●When removing the air cleaner canister cover
or the air cleaner element, be careful not to
injure your hand.
5. While holding down the electric cable, unlock the
latch hooks from the air cleaner canister and
remove the canister cover.
(A) Latch hook
(B) Air cleaner canister
(C) Latches
(D) Air cleaner canister cover
(E) Primary element
6. Slightly raise the bottom of the canister.
CAUTION
CAUTION
P3014927
(B)
(D)
(C)
(A)
P3014928
(E)
To Next Page
