5-2

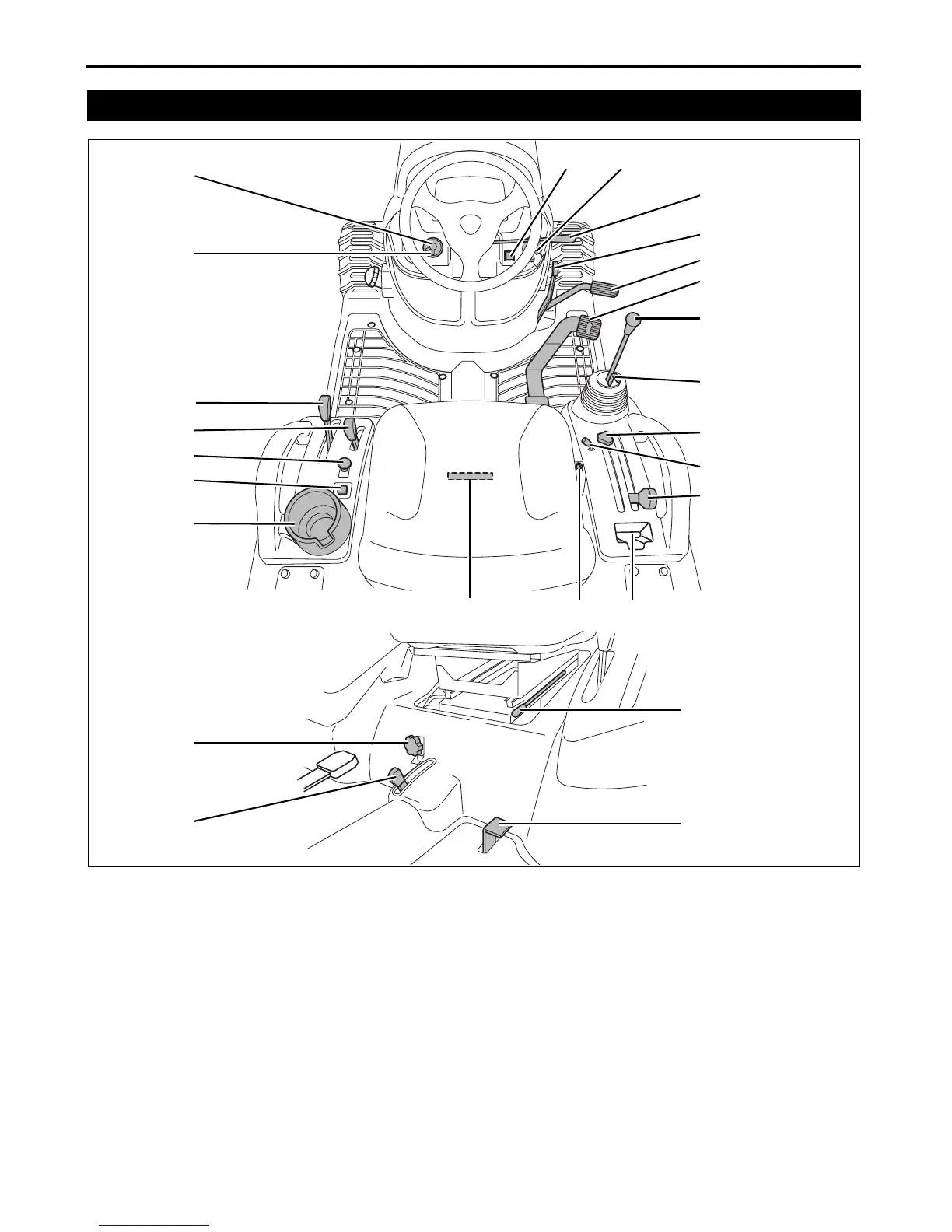

5. NAMES AND FUNCTIONS OF COMPONENTS
Sc2400 Operator’s Manual
(1) Hazard lights button switch
(2) Starter key switch
(3) Throttle control lever
(4) Parking brake lever
(5) Brake pedal
(6) Forward and reverse drive pedal
(7) Implement control lever (Option)
(8) Implement lock lever (Option)
(9) Position stop knob
(10) Cruise control lever
(11) 3-point hitch control /
cutting height adjustment lever
(12) Storage compartment
(13) 12V DC outlet
(14) Hydro Static Transmission (HST)
pressure release lever
(15) Cup holder
(16) Reverse - override - switch
(17) Power Take Off (PTO) switch
(18) Range shift lever
(19) Mid- / Rear-Power Take Off (PTO) select lever
(20) Turn signal switch
(21) Headlight / work light switch
(22) Seat adjustment lever
(23) Differential lock foot pedal
(24) 4-wheel drive lever
(25) Hydraulic flow control / stop knob
2. Operator Station Controls
3014903
(21)
(17)
(20)
(3)
(1)
(19)
(18)
(16)
(15)
(14)
(13)
(11)
3014904
(6)
(4)
(7)
(5)
(8)
(10)
(9)
(25)
(24)
(23)
(22)
(2)
(12)

Cub Cadet Yanmar SC2400 Specifications

General

Engine Power	24 hp
Transmission Type	Hydrostatic
Fuel Capacity	6.6 gallons
Drive	4WD
PTO	Independent
Hydraulic System	Open center
3-Point Hitch	Category 1
Engine Type	3TNV76 diesel engine
