5. NAMES AND FUNCTIONS OF COMPONENTS
Sc2400 Operator’s Manual
5. NAMES AND FUNCTIONS OF COMPONENTS

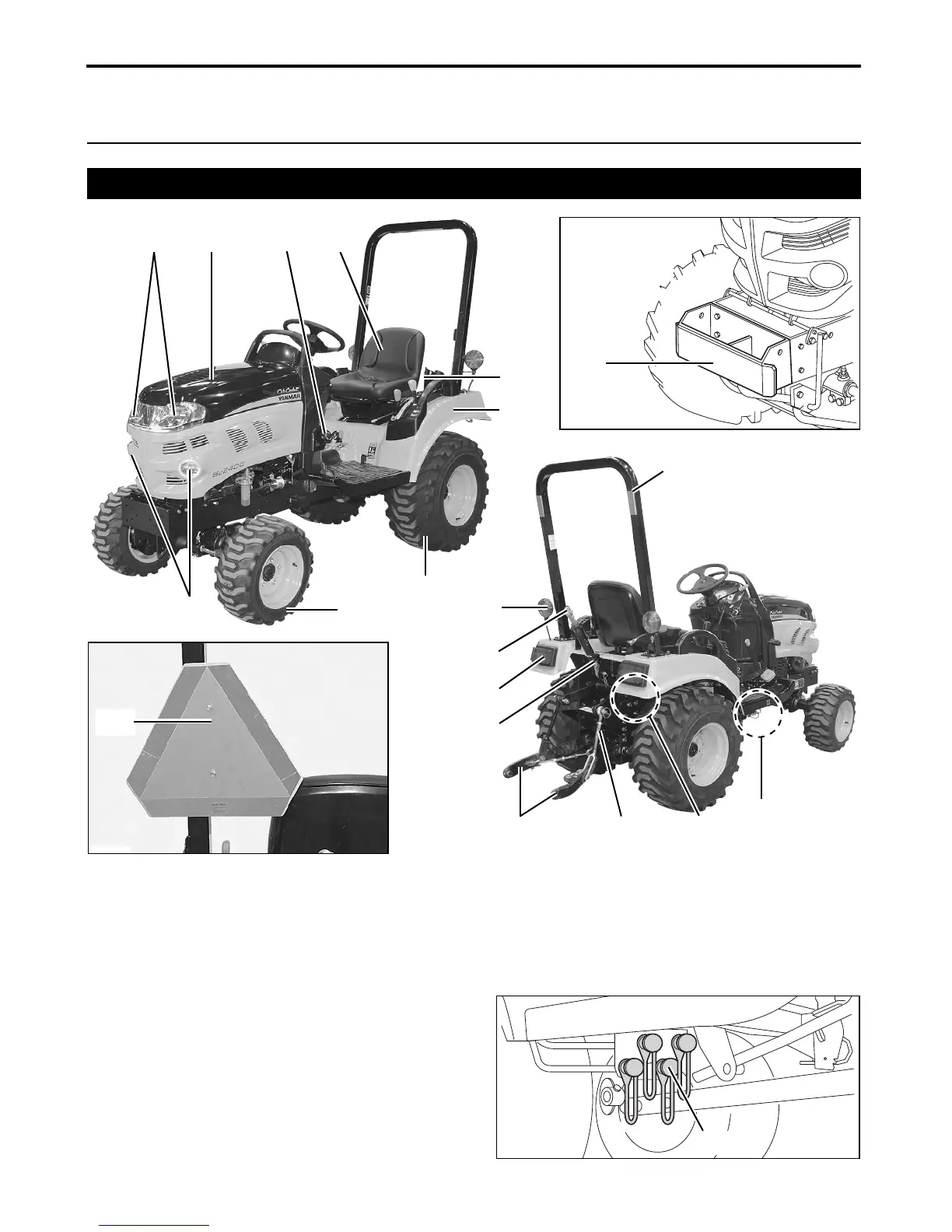

(1) Headlights
(2) Hood
(3) Fuel inlet
(4) Seat
(5) Seat belt
(6) Fender
(7) Rear tires
(8) Front tires
(9) Work lights
(10) Front weight hitch (Option)
(11) Roll-Over Protective Structure (ROPS)
(12) Hydraulic quick couplers (Option)
(13) 12V DC outlet (for additional rear work light)
(14) Rear Power Take Off (PTO) shaft
(15) Lower links
(16) Top link retainer
(17) Tail lights
(18) Top link
(19) Turn signal / Hazard lights
(20) Slow Moving Vehicle (SMV) emblem
1. Appearance
(16)
(17)
(14)
(12)
(11)
(19)
(13)
(15)
(18)
P3014905
P3014903
(9)
(3)
(8)
(7)
(4)
(1)
(2)
(6)
(5)
P3014904
(20)
3014925a
(10)
3014906
(12)

Cub Cadet Yanmar SC2400 Specifications

General

Engine Power	24 hp
Transmission Type	Hydrostatic
Fuel Capacity	6.6 gallons
Drive	4WD
PTO	Independent
Hydraulic System	Open center
3-Point Hitch	Category 1
Engine Type	3TNV76 diesel engine
