14. PERIODIC SERVICE
Sc2400 Operator’s Manual

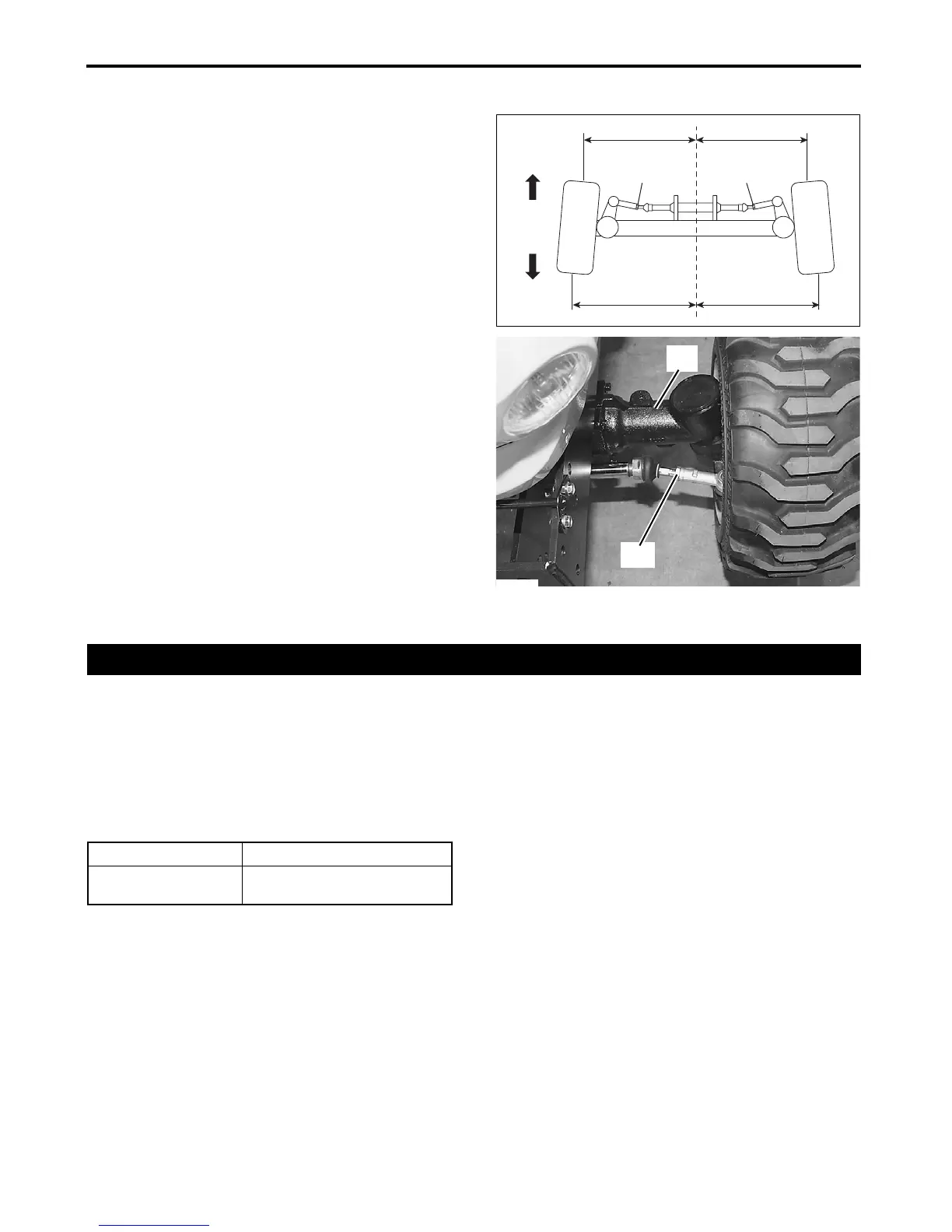

■ Adjusting the Toe-in
Poorly adjusted toe-in can cause difficulty in steering
action or abnormal sway of the steering wheel.
Measure the dimensions A, A’, B and B’ on the front
wheels, and check that the dimensional difference
“A - B” “A’ - B’” falls in a range of 0 to 0.3 in. (0 to 7
mm). If this dimension is not met, loosen the locknuts
on the right and left tie-rod ends, and adjust the
length of threaded portions. When the toe-in falls in
the range of 0 to 0.3 in. (0 to 7 mm), secure this
adjustment by retightening the locknuts.
(C) Front axle
(D) Locknut
(Tightening torque: 44 to 51 ft•lb (59 to 69 N•m))
(E) Tie-rod
(a) Front
(b) Rear
■ Transmission Oil
IMPORTANT: Avoid damage.
●Make sure to use Cub Cadet Hydraulic /
Transmission Fluid for transmission.
Transmission
7. Every 300 Hours
Capacities Lubricants
Approximately
2.0 US gal (7.5 L)
Cub Cadet Hydraulic /
Transmission Fluid
B
(E)
(a)
(b)
(E)
A
B'
A'
2010682a
P3014929
(D)
(C)
