11-4
11. HYDRAULIC SYSTEM
Sc2400 Operator’s Manual

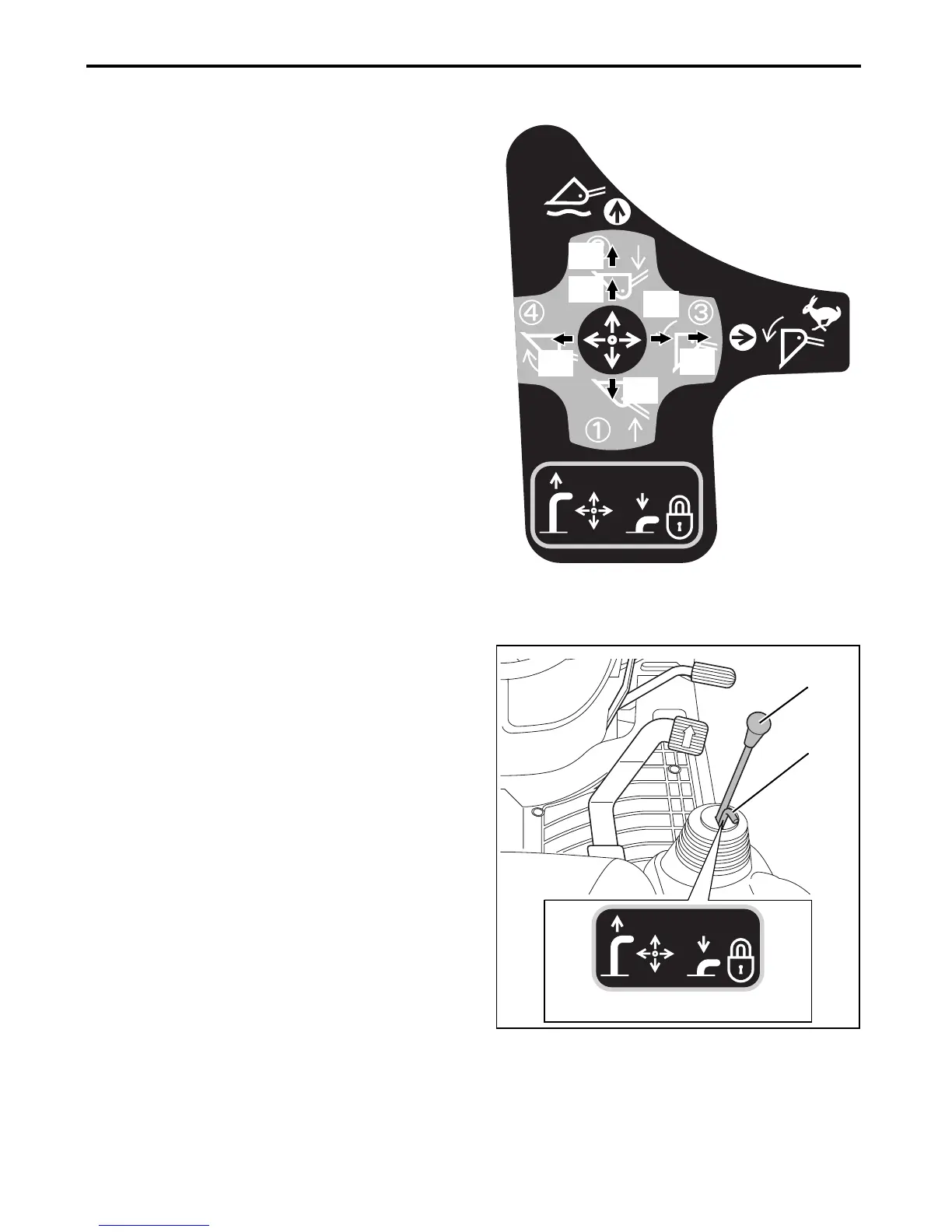

■ Implement Control Lever (Option)
The implement control valve has a “float” position.
When the implement control valve is in this position,
implements such as blades or loaders, lowered to the
operating position, are allowed to follow ground
contours.
Push the implement control lever forward beyond the
valve detent position to the “float” position.
(a) Lower
(b) “Float”
(c) Dump
(d) Dump faster
(e) Raise the implement
(f) Roll back
IMPORTANT: Avoid damage.
●Prevent damage or contamination to the female
quick couplers. ALWAYS leave the color-coded
hose ends connected to the couplers when the
couplers are not in use.
NOTE:
●When the implement control lever is released, it
returns to its neutral position.
■ Implement Lock Lever (Option)
When fixing the implement control lever at its neutral
position, use the implement lock lever.
(A) Implement control lever
(B) Implement lock lever
IMPORTANT: Avoid damage.
●Do not attempt to operate the implement control
lever when the implement control lever has been
locked.
●When the implement control lever has been locked
with the implement lock lever, move the implement
control lever with light force to ensure that it has
been securely locked.
(a) For unlocking the implement control lever:
Pull up the implement control lever.
(b) For locking the implement control lever:
Push down the implement lock lever when the
implement control lever is in its neutral position.
1A7880-65410
(f)
(e)
(d)
(c)
(b)
(a)
3014903n
(A)
(B)
(b)
(a)
