14-13
14. PERIODIC SERVICE
Sc2400 Operator’s Manual
■ Checking and Adjusting the Brake
●Before checking the brake pedal, park the
tractor safely on solid, level ground, stop the
engine and remove the key from the starter key
switch.
1. Disengage the parking brake.
2. Turn the seat forward.
3. Loosen the lock nut.
4. Adjust the play of the brake to 0.8 to 1.2 in. (20 to
30 mm) by tightening or loosening the adjusting
nut.
5. Retighten the lock nut.

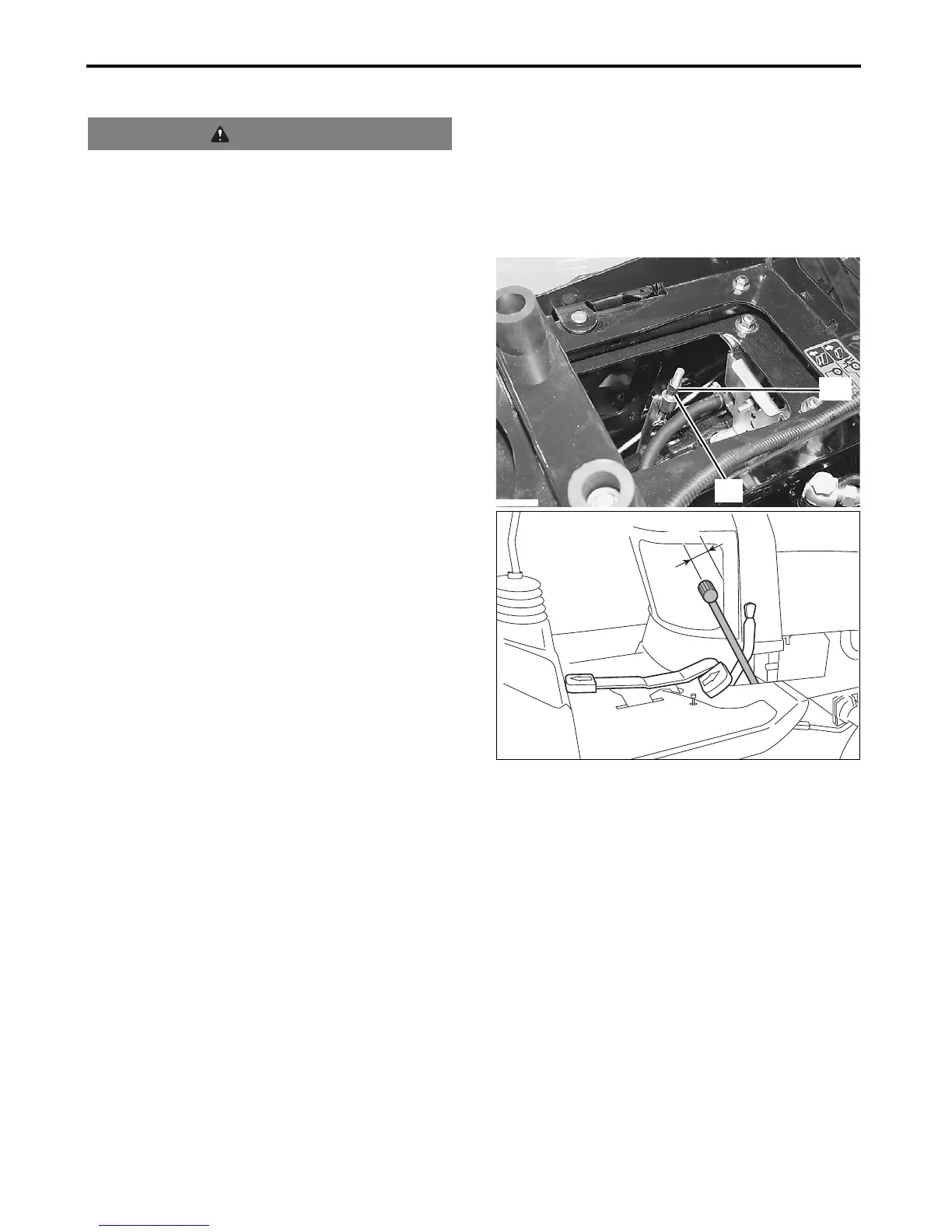

(A) Lock nut
(B) Adjusting nut
(a) 0.8 to 1.2 in. (20 to 30 mm)
■ Checking the Seat Belt and Roll-Over Protective Structure (ROPS)
1. Before operating the tractor, always make sure
that the seat belt and Roll-Over Protective
Structure (ROPS) mounting hardware are in
correct working order.
2. Replace any damaged hardware.
CAUTION
(A)
P3014921
(B)
3014916e
(a)
