14. PERIODIC SERVICE
Sc2400 Operator’s Manual
■ Replacing the Fuel Filter Element (in the Fuel / Water Separator)
1. Park the tractor safely and securely.
2. Open the hood.
3. Turn the valve lever to the "Close" position.
4. Turn the locking collar counterclockwise to unlock
the sediment bowl, then pull the sediment bowl
downward to remove from the separator body.
5. Discard fuel and sediment in the sediment bowl
and then clean the sediment bowl with diesel oil.
6. Remove the old fuel filter element from the
separator body.
7. Install a new fuel filter element to the separator
body.
8. Reinstall the sediment bowl, and turn the valve
lever to the "ON" position.
9. Close the hood.
10.Turn the key to the START position to crank the
engine to bleed the air from the fuel system.
■ Replacing the Fuel Filter
Avoid injury:
●Remember that vapor from diesel fuel is
explosive and flammable.
●NEVER smoke while handling the fuel.
●Keep the fuel away from open flames or sparks.
●Before servicing, stop the engine.
●Before servicing, allow the engine to cool off.
●Work in a well-ventilated area.
●Immediately wipe away spilled fuel.
1. Open the hood.
2. Remove the two bolts and remove the stay.
3. Remove the filter from the clamp.
4. Place an oil pan underneath the filter.
5. Disconnect the fuel hoses from the fuel filter.
6. Replace the new fuel filter, and plug it with fuel
hoses.
7. Discard the old filter. Install the hose to a new
filter.
8. Fit the filter in the clamp.
9. Reinstall the stay.

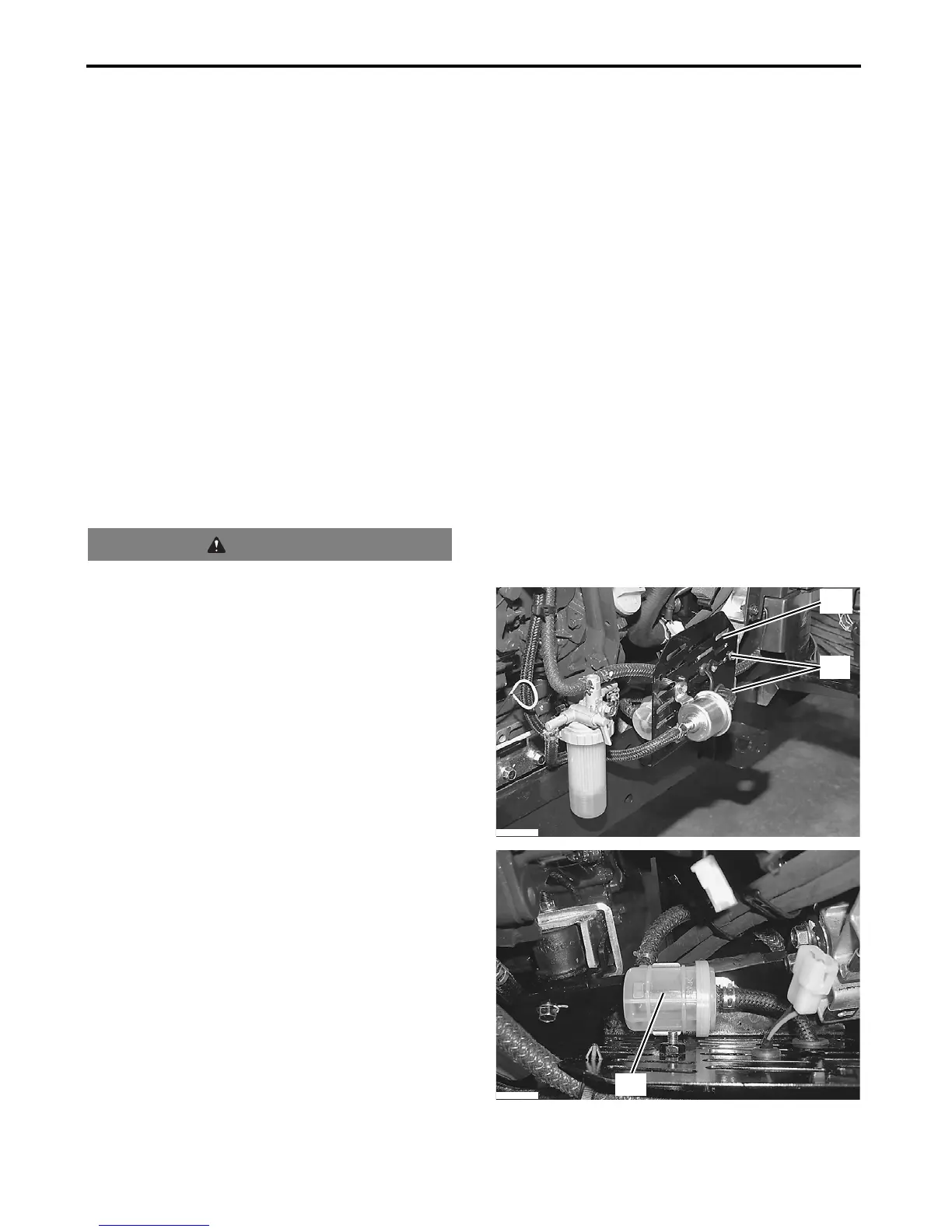

(A) Stay
(B) Bolts
(C) Fuel filter
WARNING
(B)
P3014930
(A)
(C)
P3014957
