11. HYDRAULIC SYSTEM
Sc2400 Operator’s Manual
■ Implement Control Valve (Option)
Avoid injury:
●Escaping high pressure oil can penetrate the
skin and cause severe injury. Avoid this hazard
by relieving pressure prior to connection of
hydraulic or other high pressure lines.
Retighten all the connections before applying
pressure.
●Use a piece of cardboard to detect leaks.
Protect hands and body against high pressure
fluids.
●If an accident should occur, immediately seek
medical attention. Any high pressure fluid
injected into the skin must be surgically
removed within a few hours; otherwise,
gangrene may occur.

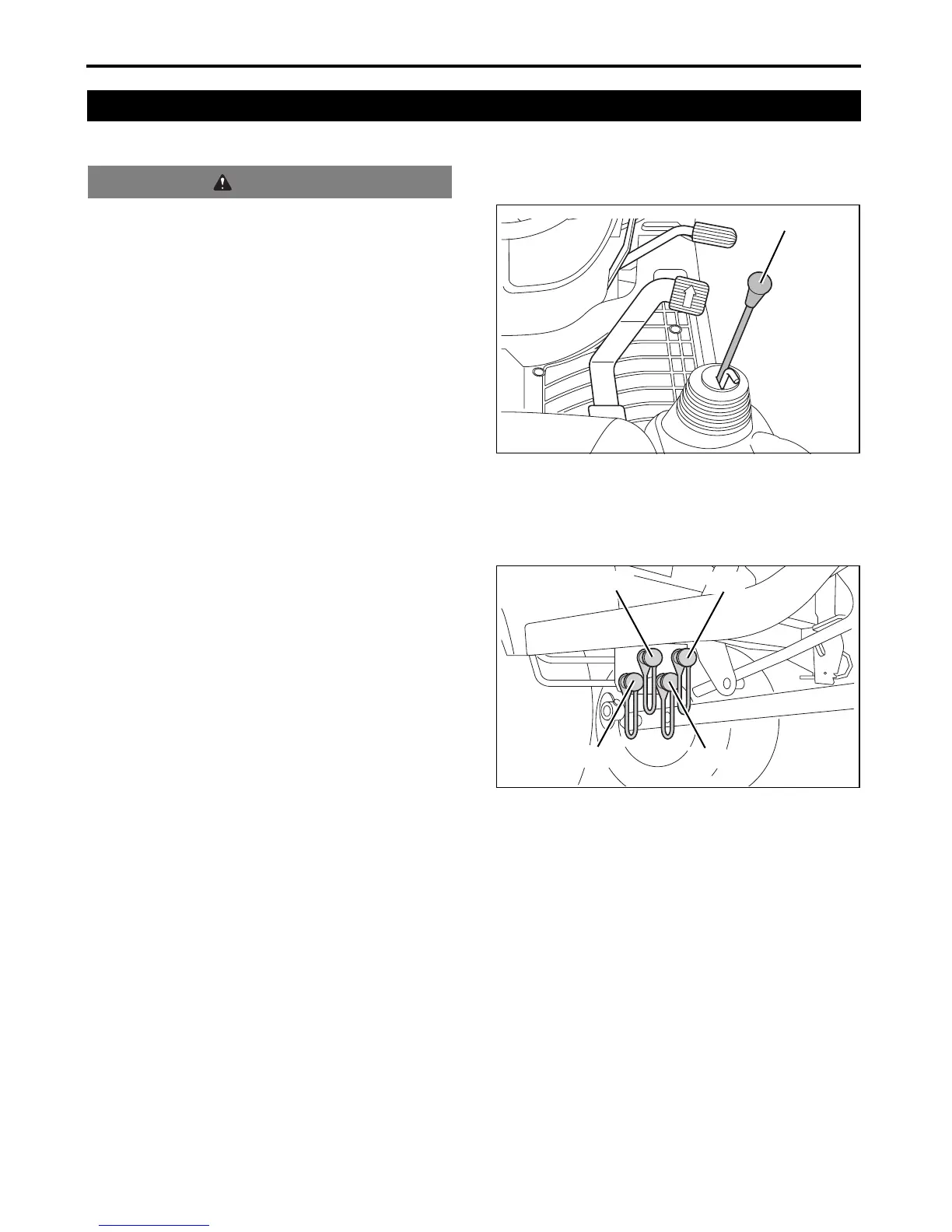

(A) Implement control lever
These couplers are used in pairs of 1 and 2, and 3
and 4. If, after the couplers and hydraulic lines have
been connected, the connected implement moves in
a direction opposite to an expected direction, then
connect the coupler 1 to the hydraulic line that was
previously connected to the coupler 2, and connect
the coupler 2 to the hydraulic line that was previously
connected to the coupler 1. Repeat this procedure
for the couplers 3 and 4.
(1)-(4) Hydraulic quick coupler
IMPORTANT:
●NEVER connect the coupler 1 to the coupler 3, or
the coupler 2 to the coupler 4. Contact your local
Cub Cadet Yanmar dealer for technical assistance.
2. Controlling the Implement Control Valve (Option)
DANGER
3014903k
(A)
3014906
(3)
(1)
(4)
(2)
