15. SERVICING THE ELECTRICAL SYSTEM
Sc2400 Operator’s Manual

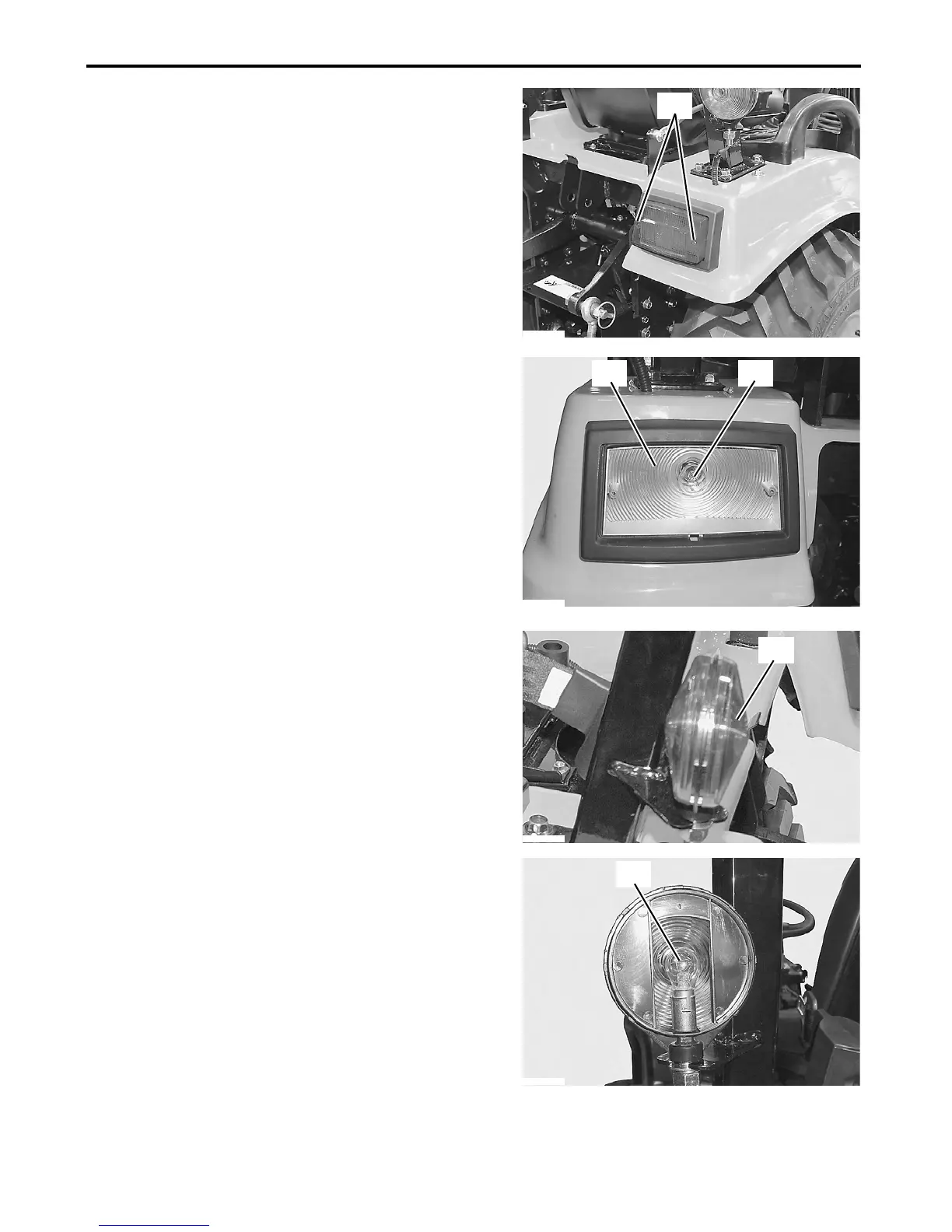

■ Replacing the Tail Light Bulb
1. Park the tractor safely.
2. Stop the engine and remove the starter key switch.
3. Remove the two screws and lens from the assembly.
4. Push down and rotate the bulb to remove it.
5. Push the new bulb into the socket and rotate to lock it
into position.
6. Check that the tail light lights normally.
7. Reinstall the lens.
(A) Screw
(B) Lens
(C) Bulb
■ Replacing the Turn Signal / Hazard Lights
Bulb
NOTE:
●The turn signal / hazard lights can be serviced after
removing the front or rear lens assembly.
1. Park the tractor safely.
2. Stop the engine and remove the starter key switch.
3. Remove the lens from the light assembly.
4. Push down and rotate the bulb to remove it.
5. Push the new bulb into the socket and rotate to lock it
into position.
6. Check that the turn signal / hazard lights operate
normally.
7. Install the lens.
(A) Lens
(B) Bulb
