14. PERIODIC SERVICE
Sc2400 Operator’s Manual

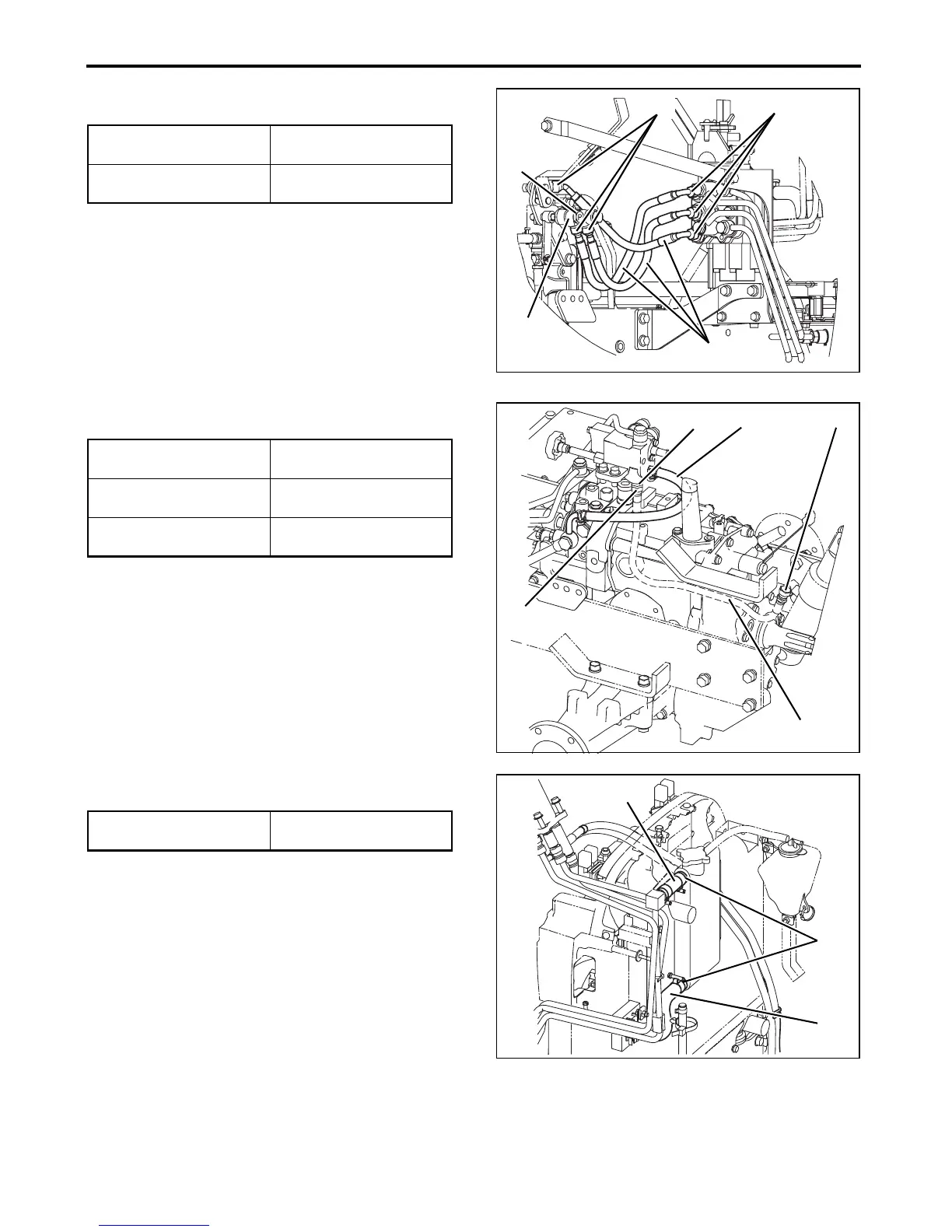

2. Implement Control Valve Hoses
(A) Implement Control Valve hose
NOTE:
●When changing the orientation of (c) is necessary
for replacing the hose, it may be preferable to
loosen the pipe fitting bolt. In such a case, replace
the copper gasket.
3. Lift Cylinder Hose and Drain Hose
(A) Lift cylinder hose
(B) Drain hose
4. Oil Cooler Hoses
(A) Oil cooler hose
(a) 9/16UNF - 14.5 35.3 - 43.1 N•m
(26.0 - 31.8 ft•lbs)
(b) 9/16UNF - 14.5 39 - 49 N•m
(28.8 - 36.1 ft•lbs)
(a) G1/4 22.6 - 27.5 N•m
(16.7 - 20.3 ft•lbs)
(b) Connector PF1/4 1.5 - 2.5 N•m
(1.1 - 1.8 ft•lbs)
(c) G1/4 22.6 - 27.5 N•m
(16.7 - 20.3 ft•lbs)
(a) Clamp 2.5 - 3.4 N•m
(1.8 - 2.5 ft•lbs)
