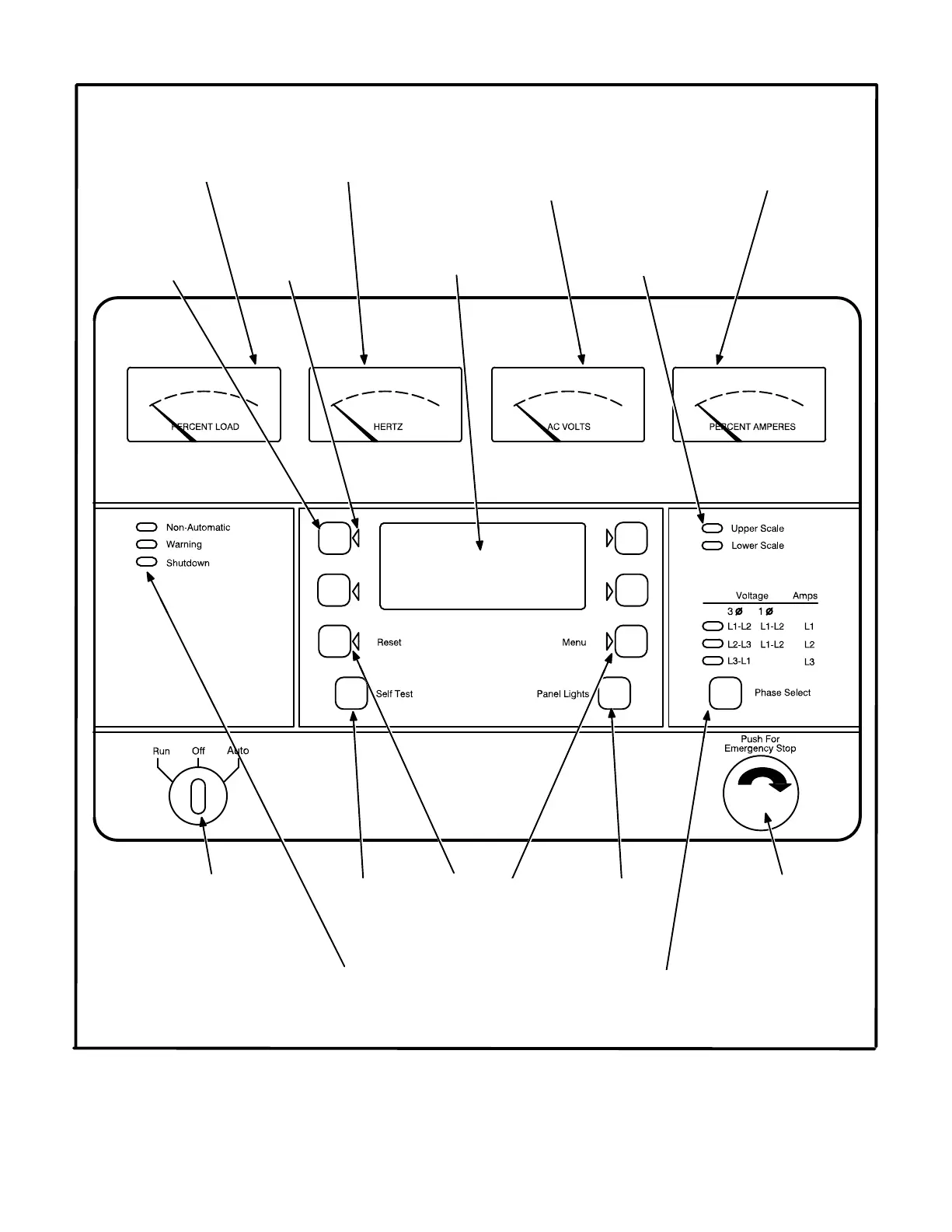

CUMMINS QST30 - Front Panel

2-2
Copyright  2017 Cummins Inc.
ACTIVE SWITCH
INDICATOR
(1 of 6)
UPPER AND
LOWER SCALE
INDICATOR
FREQUENCY
METER
KILOWATT METER
(PERCENT LOAD)
PHASE SELECTOR
SWITCH AND
INDICATORS
RUN/OFF/AUTO
SWITCH
RESET
SWITCH
NON-AUTOMATIC
WARNING
SHUTDOWN
STATUS INDICATORS
EMERGENCY STOP
PUSH BUTTON
(Turn CW to reset)
PANEL LAMP
SWITCH
SELF TEST
SWITCH
MENU
SWITCH
AC
VOLTMETER
(DUAL SCALE)
AC AMMETER
(PERCENT AMPS)
ALPHANUMERIC
DISPLAY
MENU
SELECTION
SWITCH
(1 of 4)
FIGURE 2-1. FRONT PANEL
