2. The dot on the side of the current
transformer (CT) must face the gen-
erator. A dot is also used to mark
terminal 1. CT terminal 1 connects
to the metering circuit. Terminal 2/3
connects to ground.

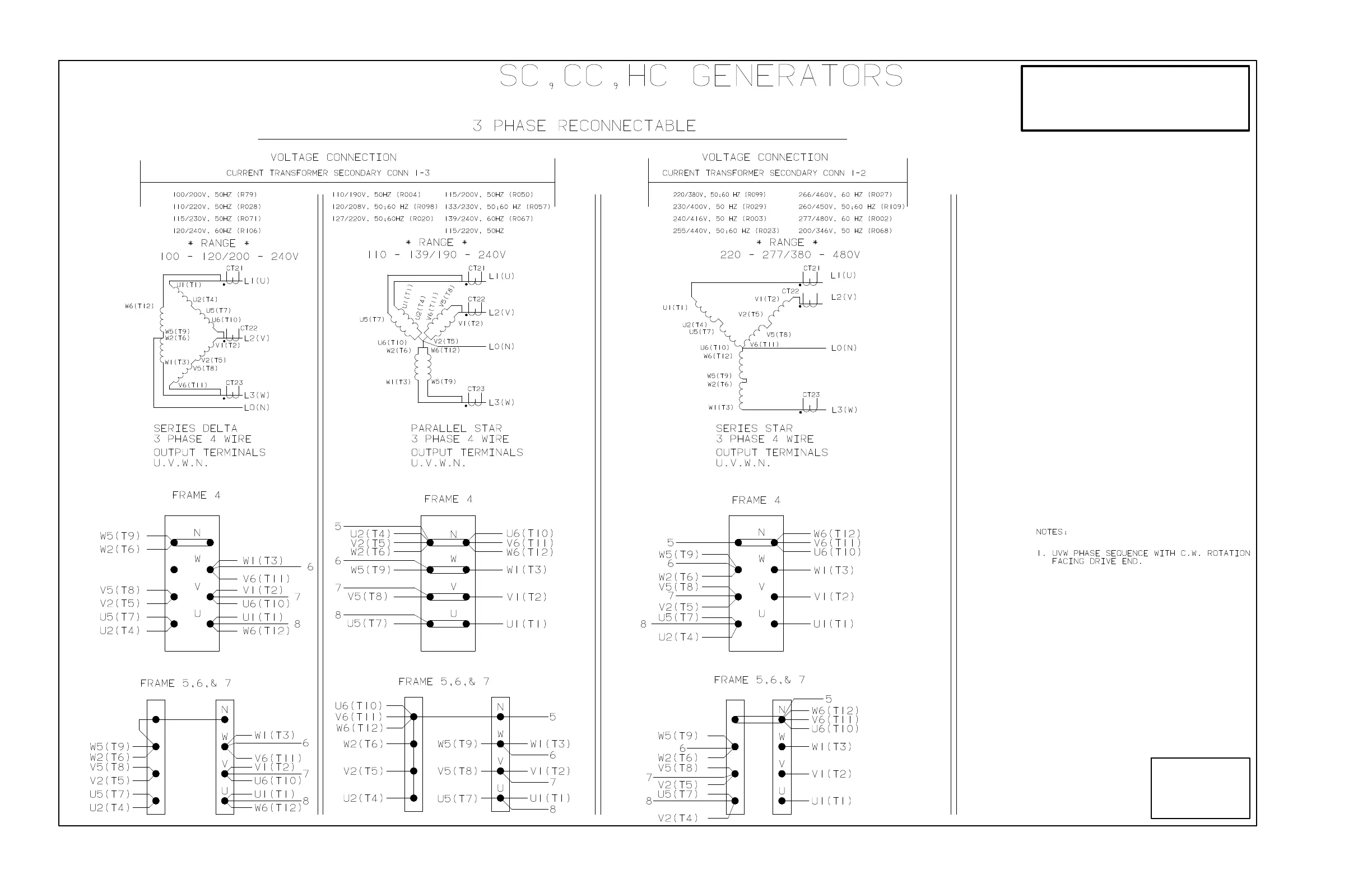

THIS IS A REPRESENTATIVE (GENERIC)
SCHEMATIC/WIRING DIAGRAM. FOR
TROUBLESHOOTING, REFER TO THE
WIRING DIAGRAM PACKAGE THAT WAS
INCLUDED WITH YOUR GENSET.
