2 — INSTALLATION & WIRING: Throttle Wiring

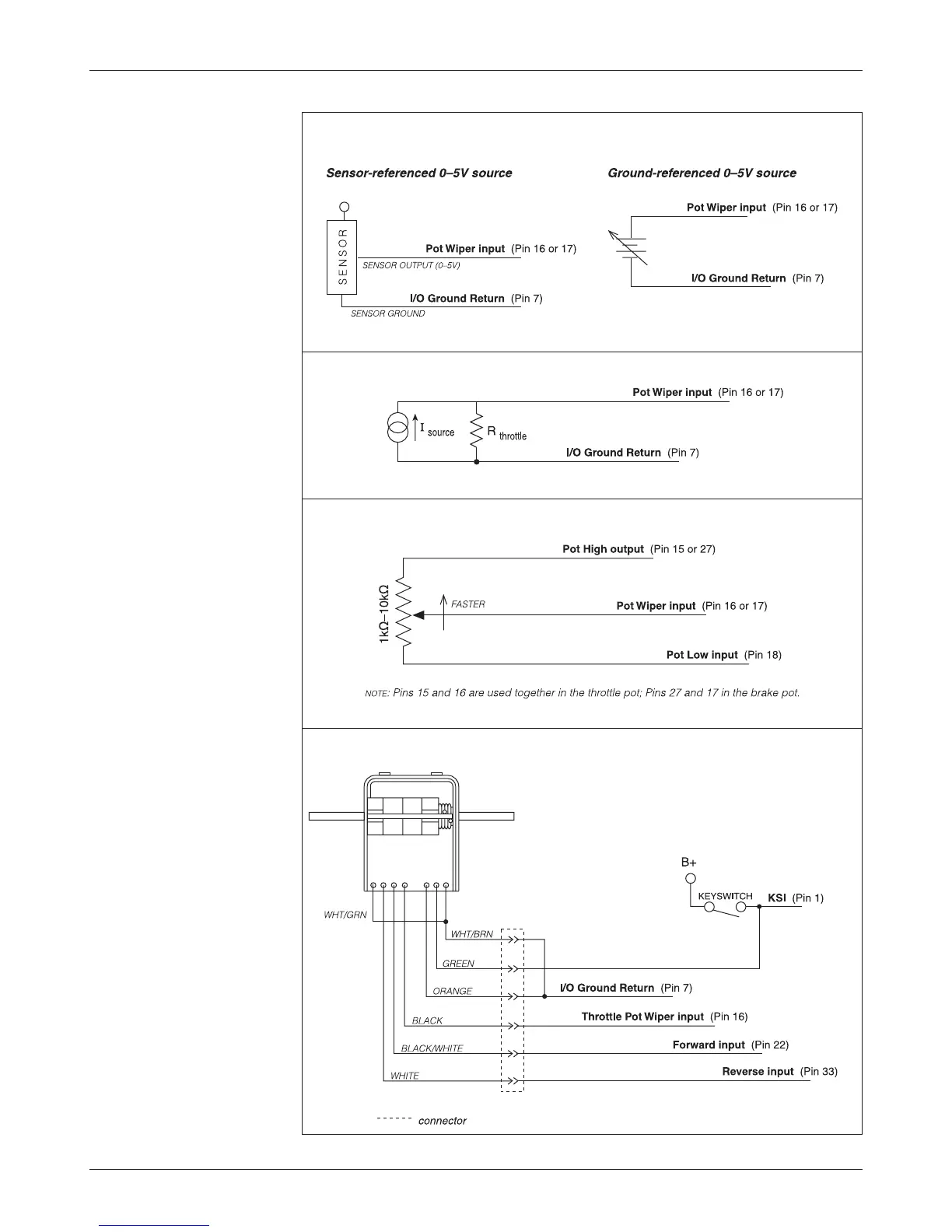

Fig. 5 Wiring for Type 2
throttles.
Curtis ET-XXX Electronic Throttle
Voltage Source
Current Source
3-wire Potentiometer
+
+
-
