7 — VCL

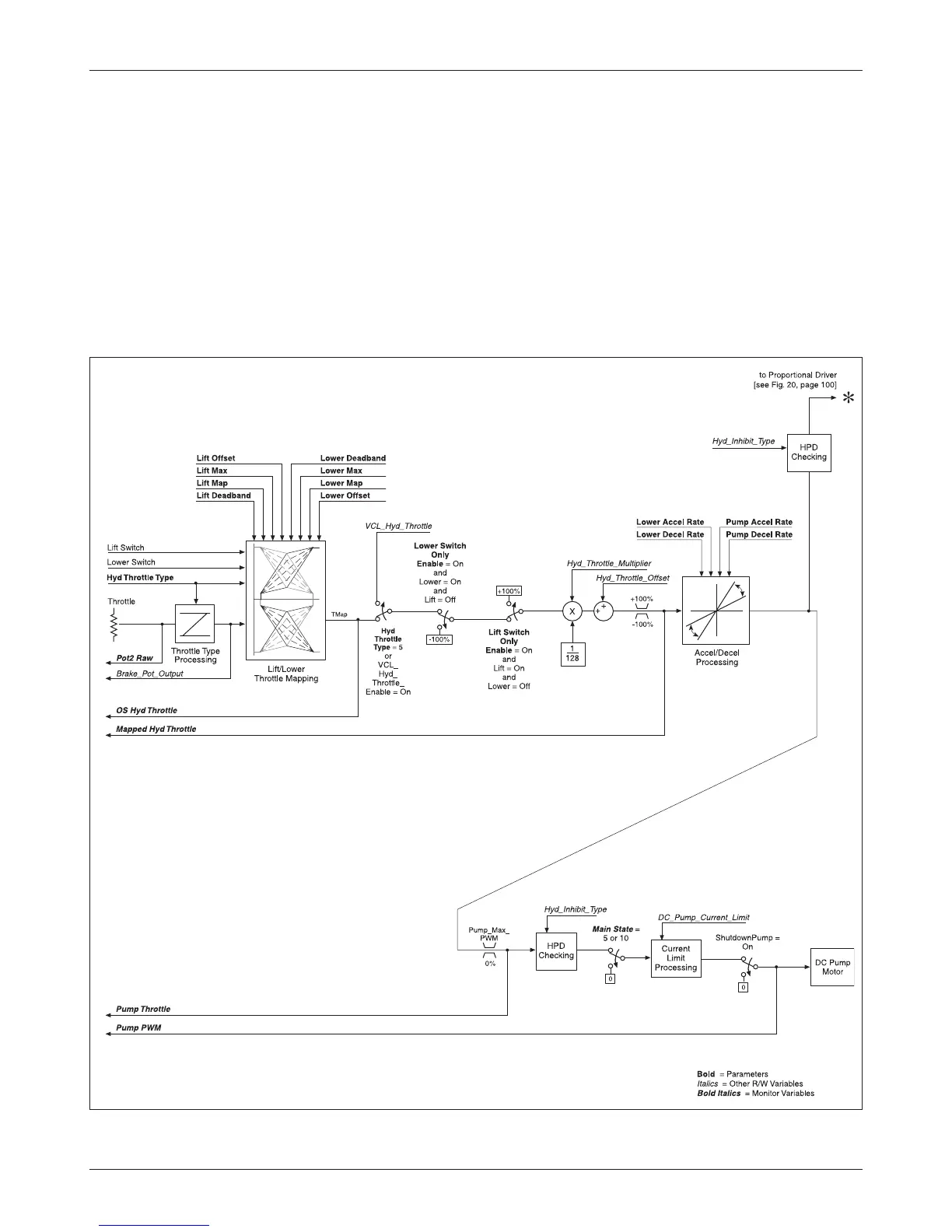

Fig. 19 Hydraulic command diagram.
Hydraulic Throttle Processing (Fig. 19)
Hydraulic throttle processing is the throttle chain that controls the commands
to the lowering valve and the pump motor. Hydraulic throttle processing is
very flexible and can be done with or without the hydraulic throttle pot or
VCL, as shown in Figure 19. The hydraulic throttle signal chain flows from
left to right starting with the physical hydraulic throttle pot. The voltage on
the wiper input (pin 17) is input into the controller and has the VCL vari
-
able name Pot2_Raw which is displayed in the 1311 Monitor
» Inputs menu.
