Curtis 1298 Manual, OS 11
Reverse Deadband 0–5.00 V
Reverse_Deadband 0–32767
Reverse Map 0–100 %
Reverse_Map 0–32767
Reverse Max 0–5.00 V
Reverse_Max 0–32767
Reverse Offset 0–100 %
Reverse_Offset 0–32767
3 — PROGRAMMABLE PARAMETERS:
Throttle Parameters
THROTTLE MENU, cont’d
ALLOWABLE

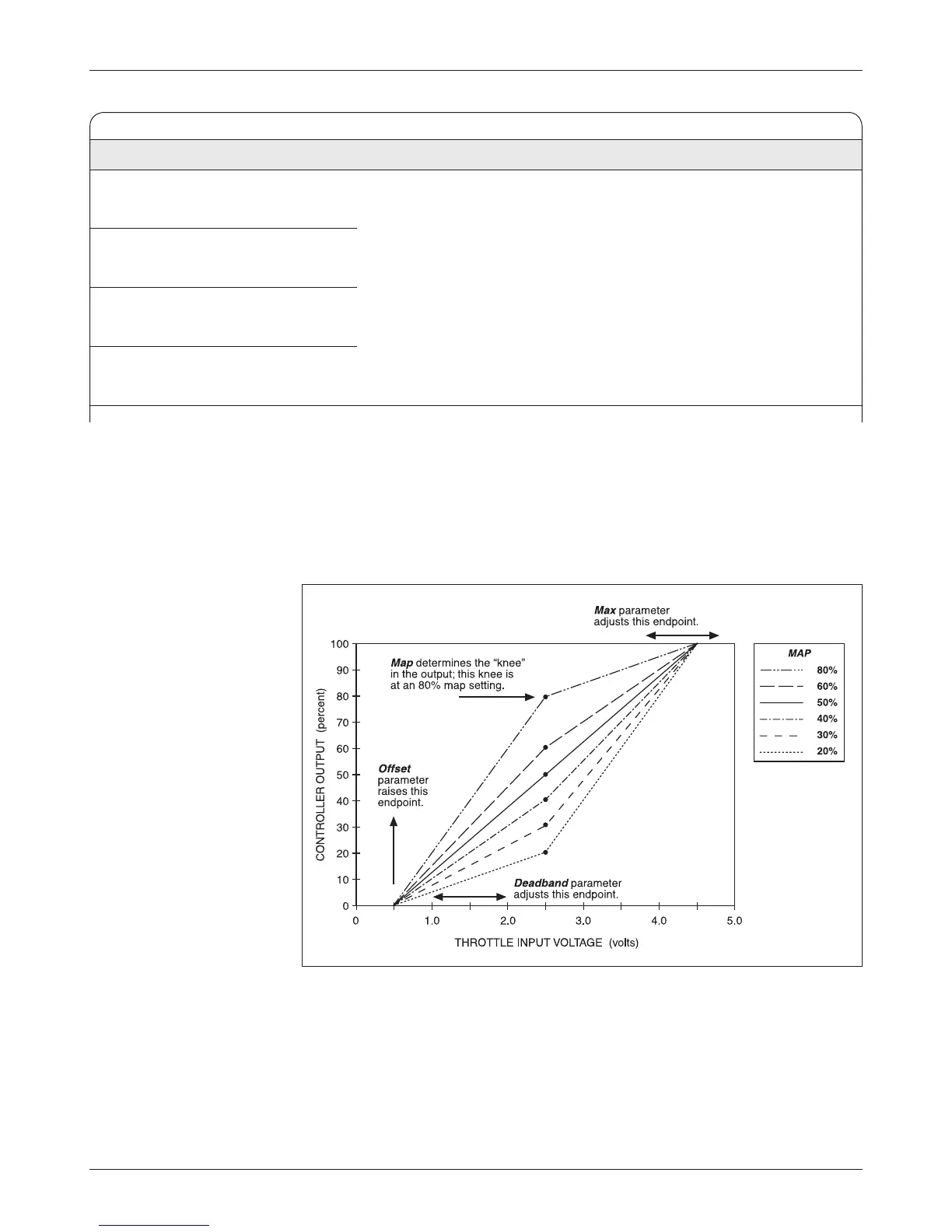

Fig. 14 Effect of throttle
adjustment parameters.
Together these four generic
parameters determine the
controller’s response to
throttle demand
(in forward or reverse)
and to brake demand.
In the examples shown
in this figure,
Deadband = 0.5V
Max = 4.5V
Offset = 0.
The four Throttle Reverse parameters are the same as their
Throttle Forward counterparts, and apply when the throttle
direction is reversed.
