10.2 Wirings kit with low paper sensor boards
For the device is available a kit of wirings with low paper sensor boards 26300000000453 (supplied as an accessory). The
kit makes it possible the connection between triple feeder and low paper sensors.

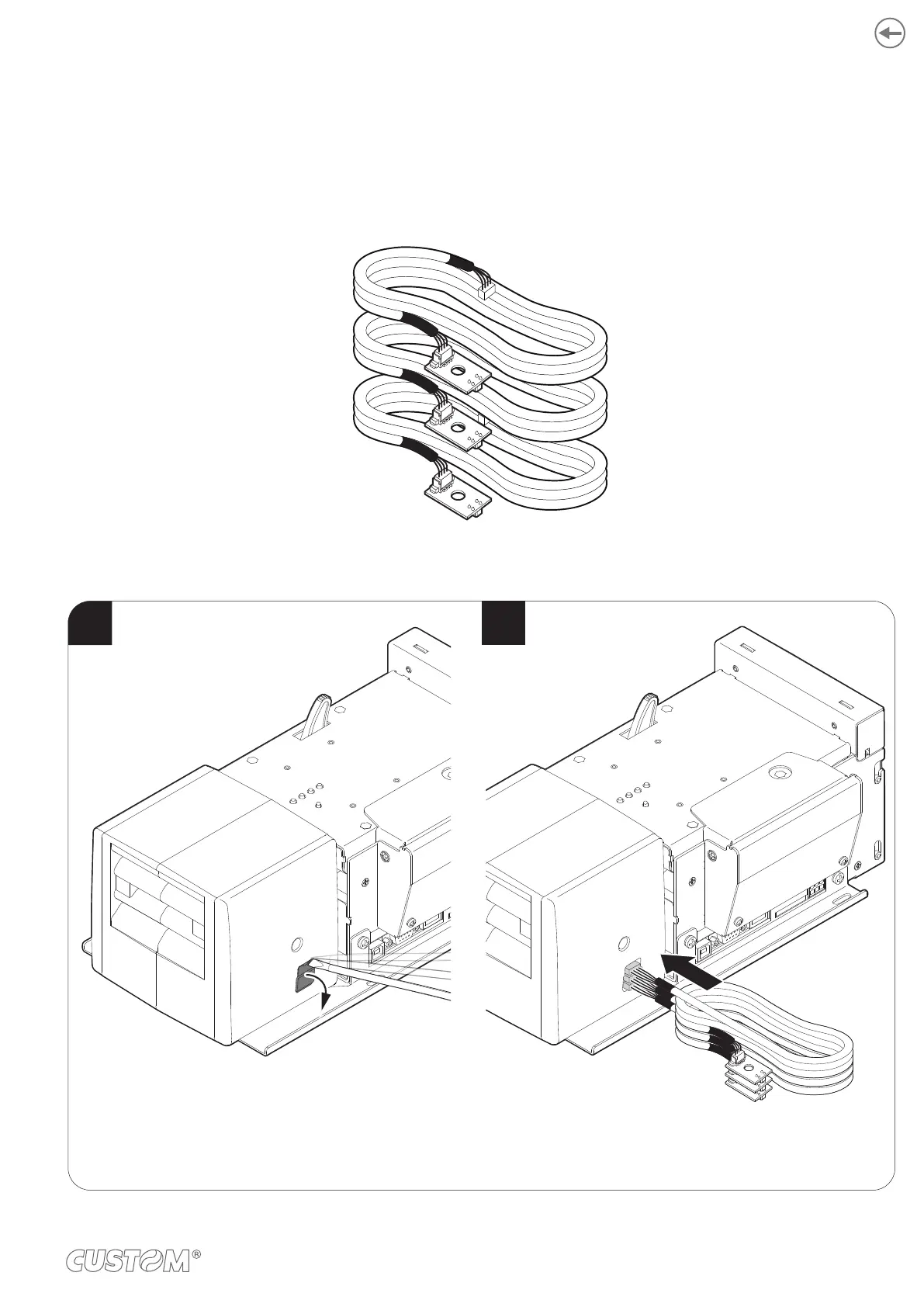

For the assembly procedure, proceed as follows:
Connect the three wirings
to the connectors of triple feeder.
1
2
Remove the cover for the triple feeder connectors
by levering with a small slotted head screwdriver.
