5.2 Adjusting the alignment sensors
The device is equipped with two mobile sensors for the detection of the alignment black mark placed both on the thermal
The device user will need to manually move these mobile sensors according to the position and the type of the black mark
on the paper (see next paragraphs).
To use these sensors, you must set the “Notch/B.Mark Position” setup parameter on the correct value (see chapter 6).
direction
of
paper feed

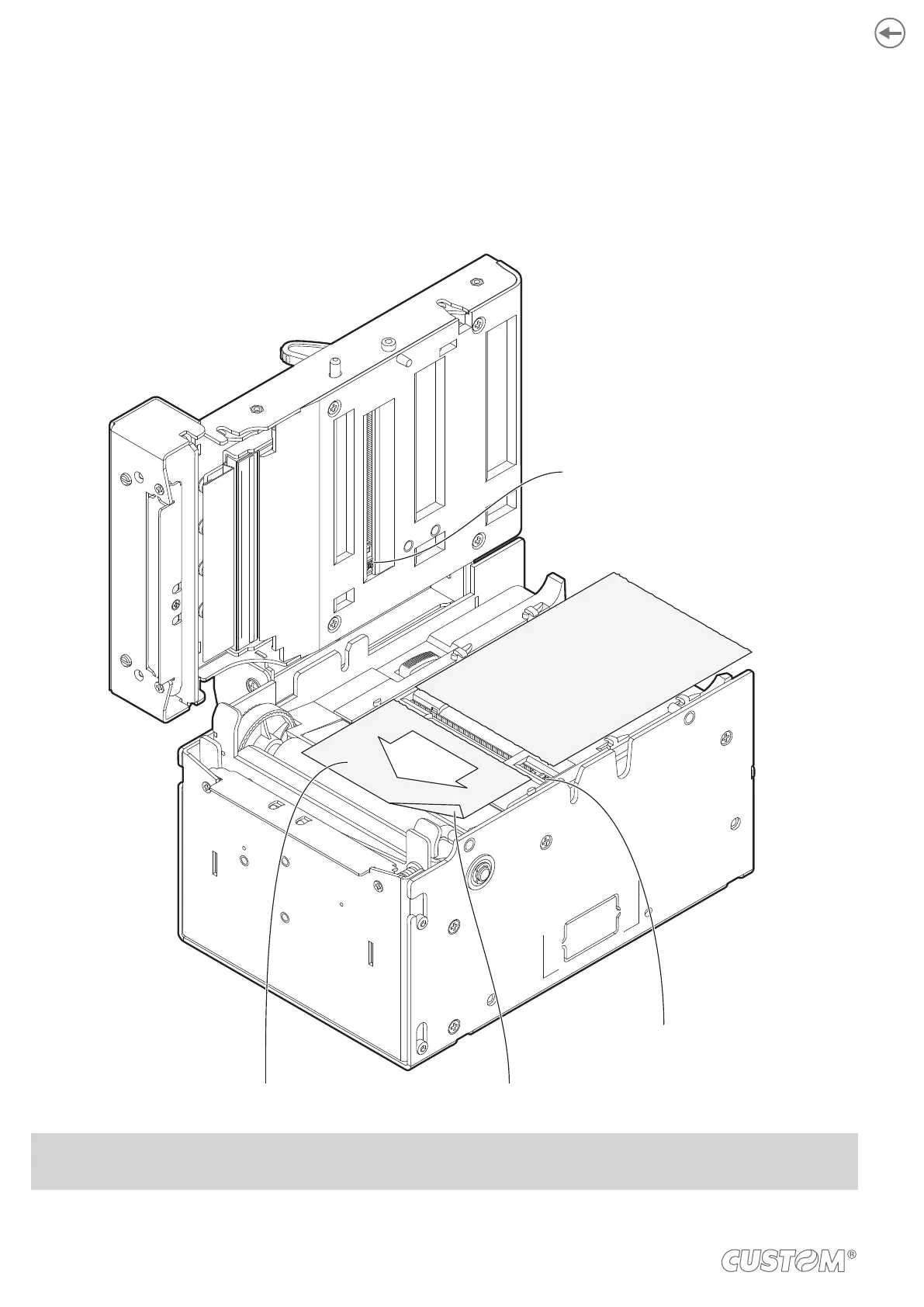

NON-THERMAL SIDETHERMAL SIDE
LOWER MOBILE SENSOR
UPPER MOBILE SENSOR
NOTE: For ease of reference, for some models is represented only the internal printer group without the external plastic
chassis or triple feeder.
