Custom Audio Electronics TK303 User Manual

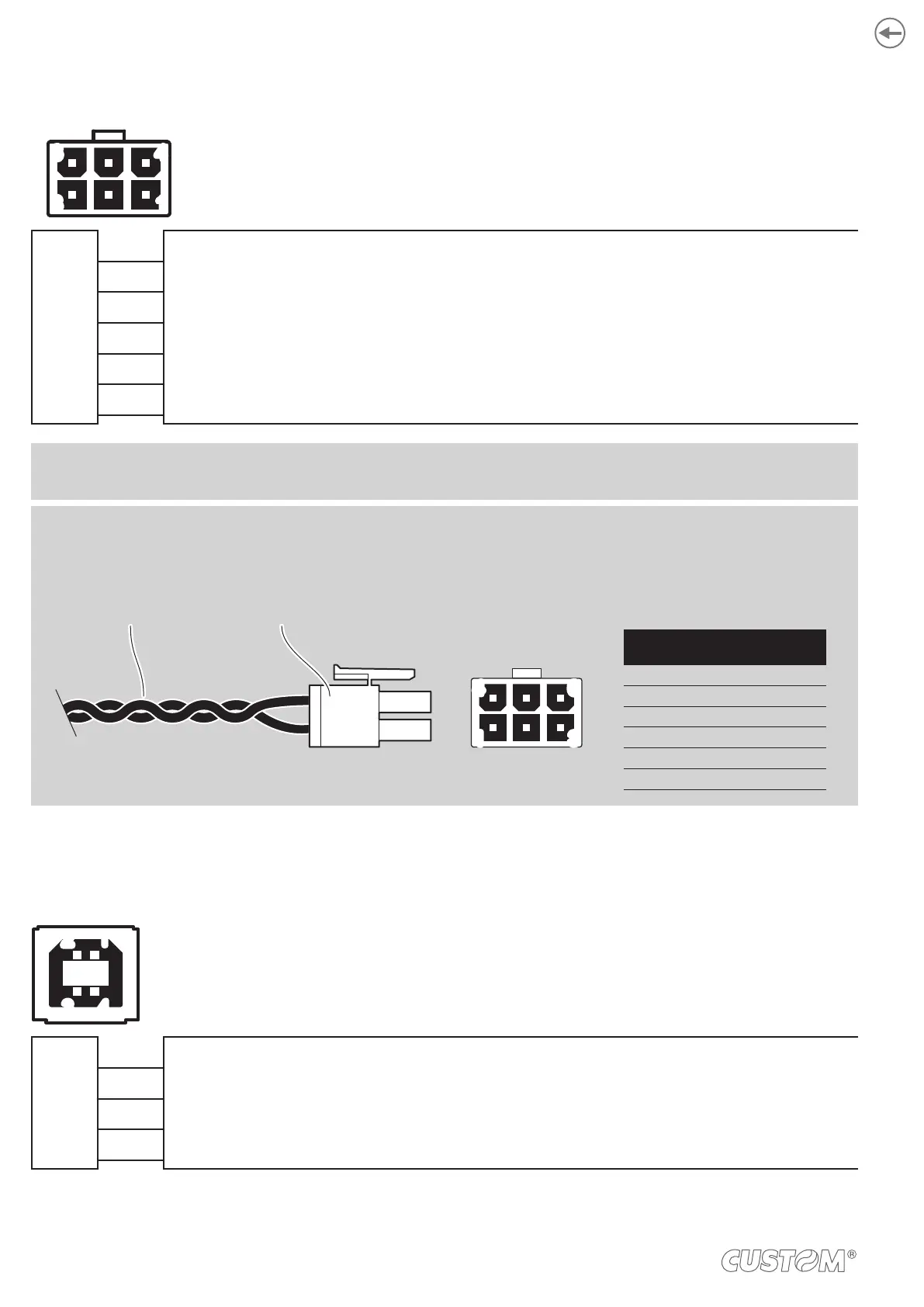

4.6 Pinout
1
4
3
6
POWER SUPPLY
Male Molex connector vertical (no. 39-30-0060)
J26
1 +24 Vdc
2 +24 Vdc
3 +24 Vdc
4 GND
5 GND
6 GND
ATTENTION:
Respect power supply polarity.
NOTE:
Power supply cable

GNDBlack 6
GNDnot connected
5
GNDBlack
4
+24VRed
3
+24Vnot connected 2
SignalCable
color
PIN
+24VRed 1
1 3
4 6
18 AWG cable
Female connector
Molex (n.39-01-2065)
12
3 4
USB INTERFACE
Female USB type B connector
J13
1 USB-VBUS (out)
2 PD -0
3 PD +0
4 GND
52
