KPM302 TF, KPM302 TF-EJ, KPM302 TF-vSEL, KPM302 TF-hSEL, TK302 TF
The LED panel of triple feeder is comprised of two LED (one of green colour and one of red colour) for each of the three
paper input feeder.
The LED indicate the triple feeder status and the paper status. Given in the table below are the various LED signals and
the corresponding triple feeder status.

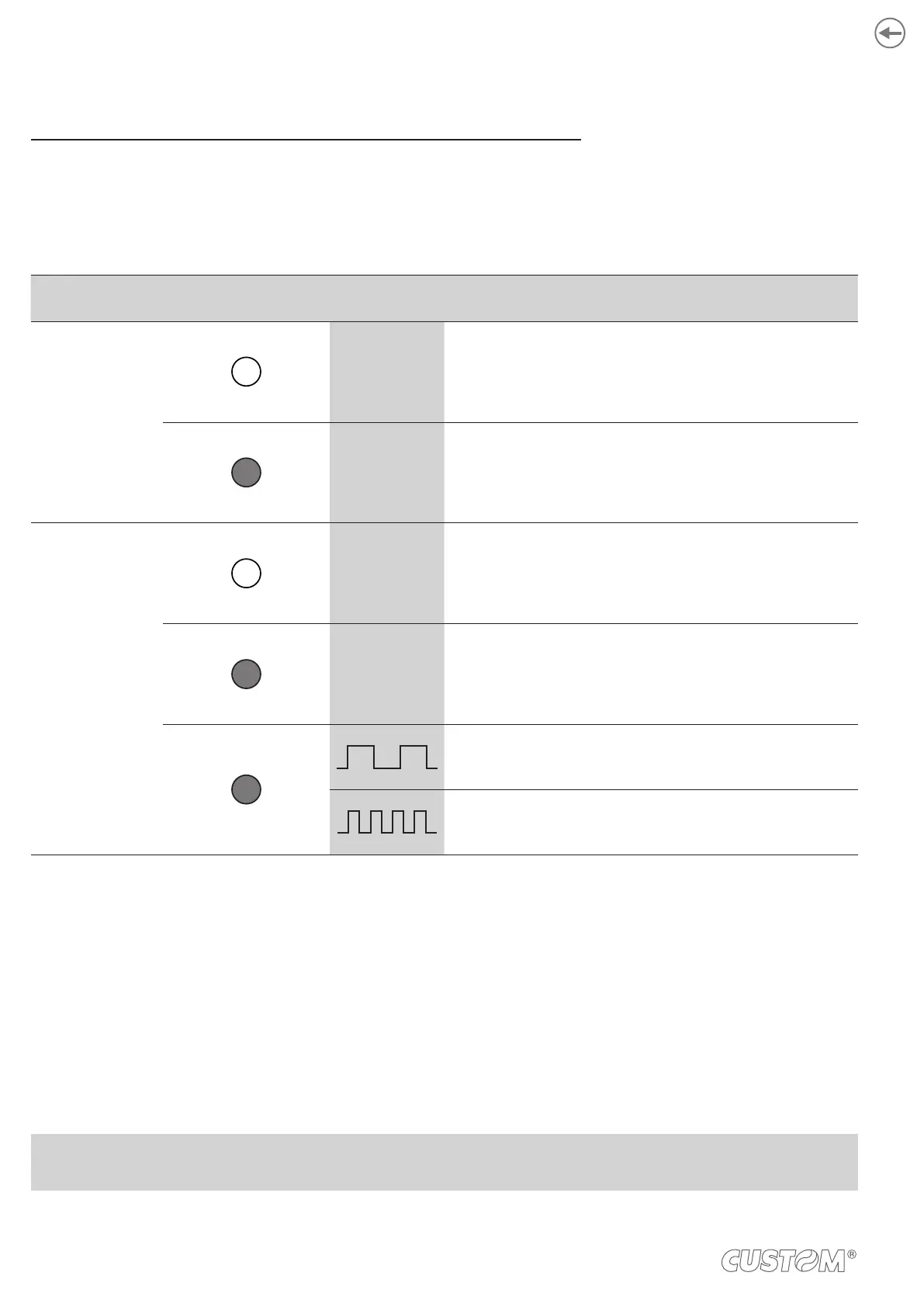

STATUS LED DESCRIPTION
RED
PAPER END
WARNING
OFF PAPER PRESENCE
ON LOW PAPER
GREEN
TRIPLE FEEDER
STATUS
OFF NO PAPER OR PAPER IN PARKING SPACE
(1)
ON PAPER LOADED
PAPER END DURING PRINTING
PAPER JAM
NOTE:
(1) The paper is in “parking space” when it is present on entrance of feeder but it is not loaded into the printer.
