KPM302 TF-vSEL

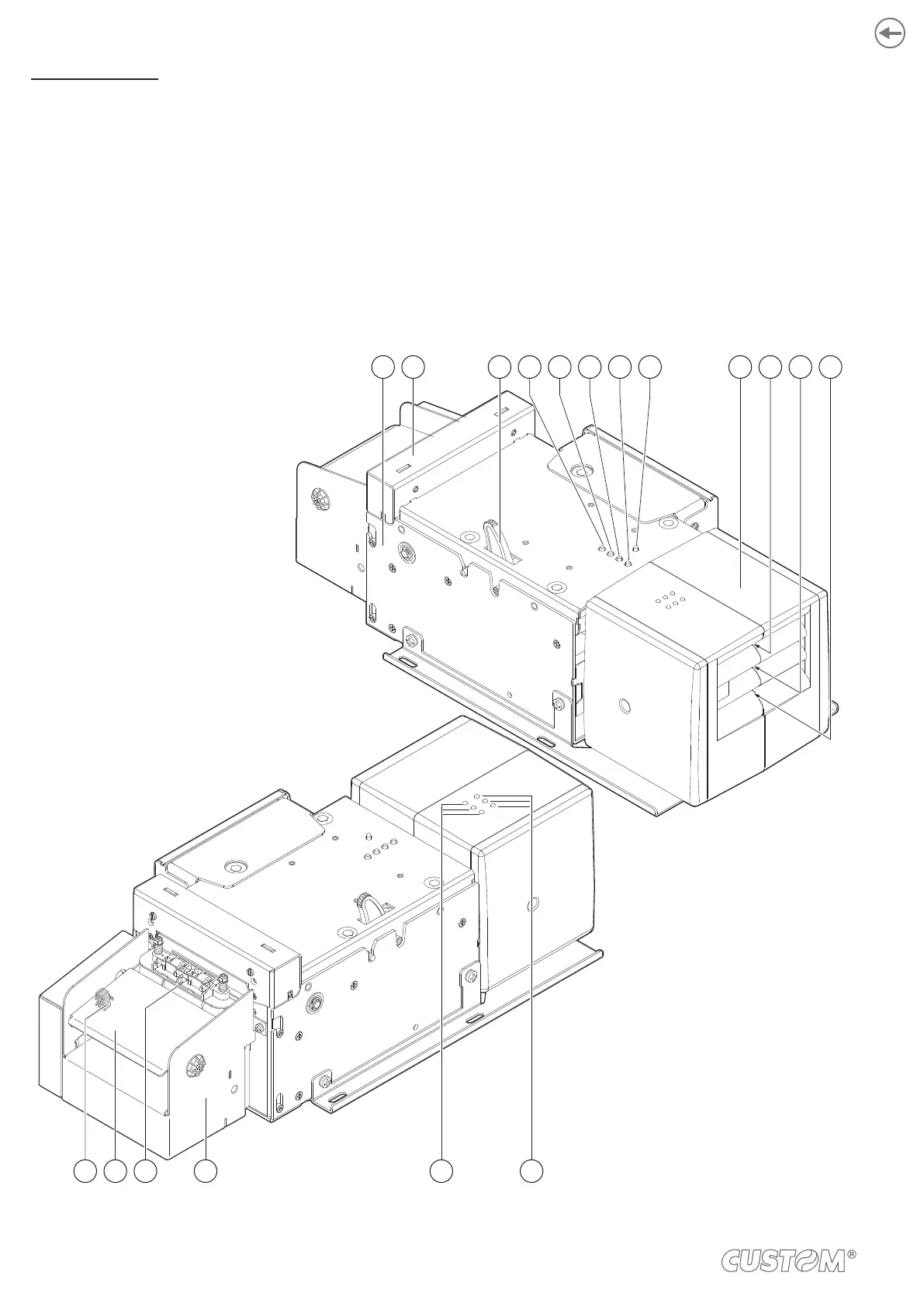

1. Device chassis
2. Printing head group
3. Release lever for upper cover
4. LINE FEED key
5. FORM FEED key
6. S1 key
7. S2 key
8. Status LED
9. Triple feeder
10. Paper input feeder 1
11. Paper input feeder 2
12. Paper input feeder 3
13. Triple feeder LED (green)
14. Triple feeder LED (red)
15. Front cover with selector group
16. Paper out
17. Tilting slide
18. Sensor for tilting slide position
1314
1718 16 15
