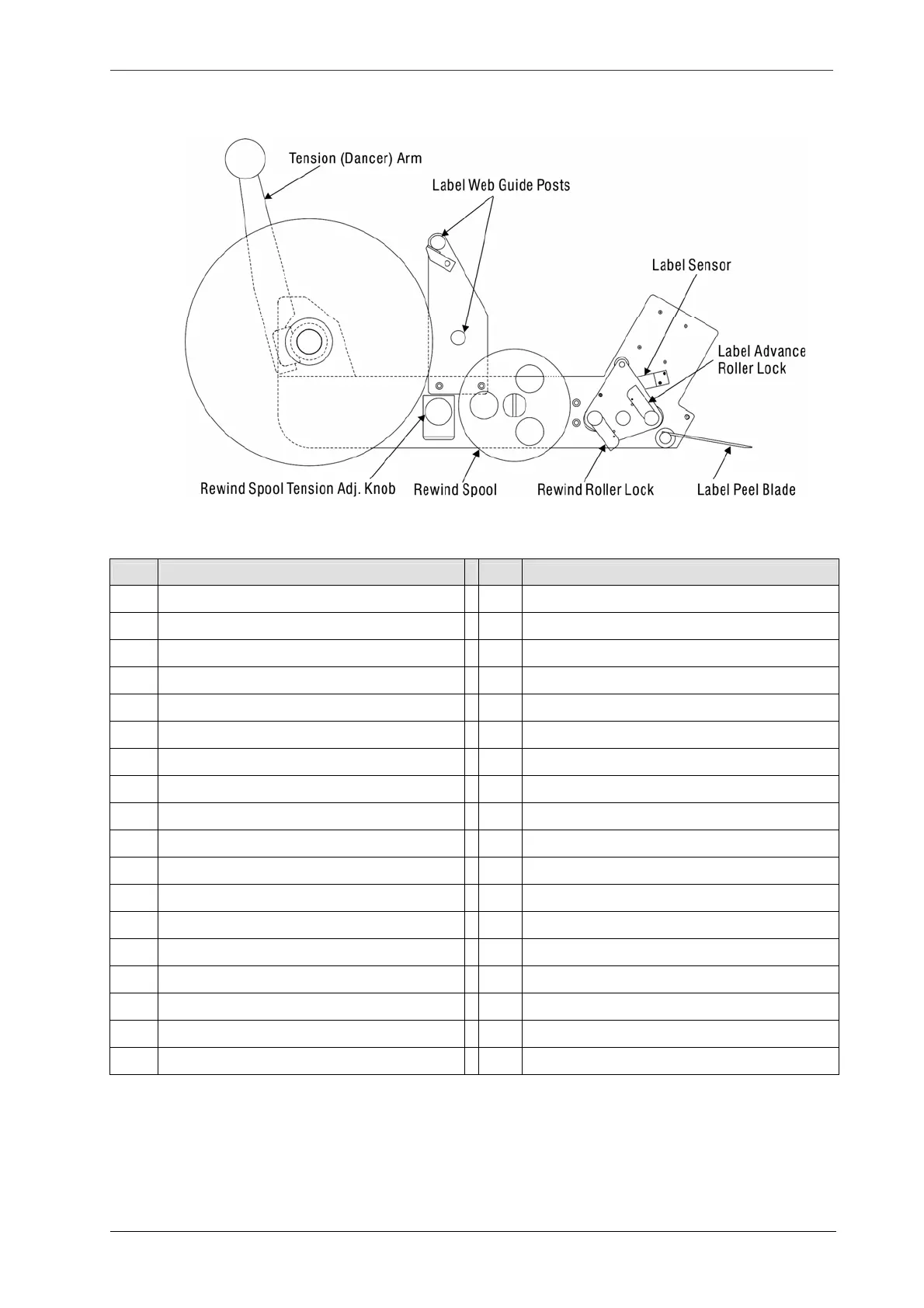

Labeling Head Layout
No. Nomenclature No. Nomenclature
1 Label Roll Disk 19 Wrap Plate Height Fastening Block
2 Rewind Spool 20 Wrap Plate Horizontal Adjustment Handwheel
3 Label Roll Axle 21 Electrical Connector for Wrap Station
4 Tension Arm 22 Guide Rail Height Adjustment Knobs
5 Label Web Guide Posts 23 Guide Rail fasteners
6 Label Peel Blade 24 Conveyor Belt Adjustment Block
7 Hot Stamp Printer 25 Guide Rail Width Adjustment knobs
8 Wrap Belt Assembly 26 Product Separator Wheel
9 Control Panel (Hand-Held Terminal) 27 Emergency Stop Button
10 Main Power Switch 28 Product Sensor
11 Power Box 29 Labeling Position Height Adjustment Handwheel
12 Conveyor Motor 30 Hot Stamp Printer Height Adjustment Handwheel
13 Guide Rail 31 Wrap Belt Height Adjustment Handwheel
14 Conveyor Assembly 32 Air Blower
15 Conveyor Height Adjustment Mechanism 33
16 Swivel Casters 34
17 Fastening Handle 35
18 Wrap Plate Height Adjustment Handwheel 36
Fig 6.1-3
