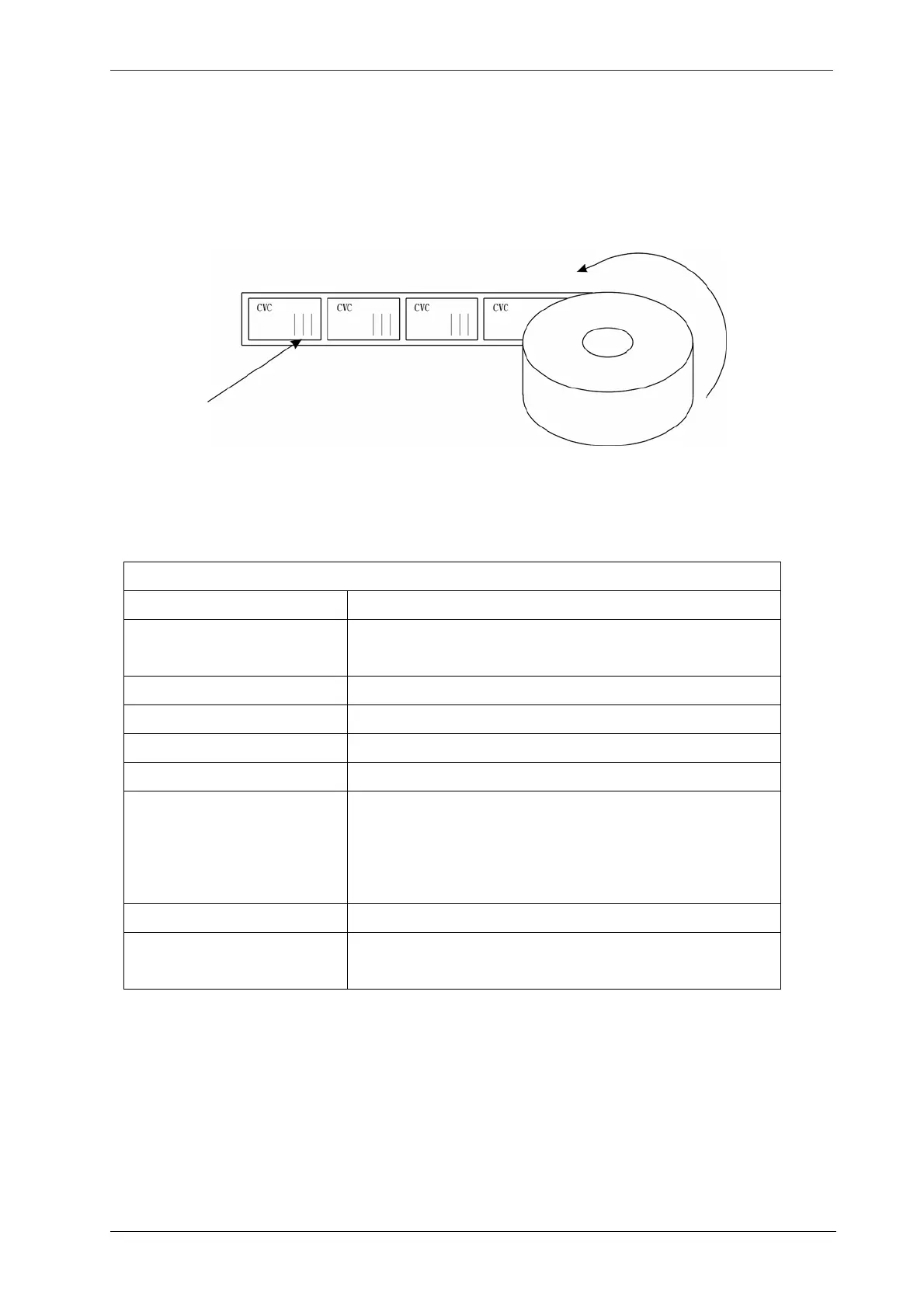

2.2.3 Label Rolled Inside Diagram (LRI)
Labels are on the inside and roll in counterclockwise (less use).
Reserve a blank for hot stamp printing if needed.
Counterclockwise
Hot stamped code position
Fig 2.2-3
2.3 Hot Stamp Printer Specification (Optional)
Model: C60
Print Type Nickel alloy for standard sizes, brass for 1.3 mm type
Print Sizes Standard size: 1.5mm, 2.0mm, 2.5mm
Special size: 1.3mm
Air Consumption
50
ℓ/min (based on 300 strokes per minute)
Air Pressure 4 ~5 kgf/cm
2
(60 ~80 psi)
Printing Lines 1~6 lines
Print Speed (max.) 300 prints/min.
Hot Foil Ribbon 1. Two types are available
A. Width: 25mm (1")
B. Width: 32mm (1
1
/
4
")
2. Applicable printing temperature: 50˚C ~ 200 ˚C
Foil Printing Temperature 130 ˚C ~200˚C
Print Area Max. Length: 70mm (2
3
/
4
"),
Max Width: 65mm (2
1
/
2
")
