CVC TECHNOLOGIES, INC. CVC 310 OPERATION MANUAL
5.3 U-Type Spring Clip Mounting (Optional)

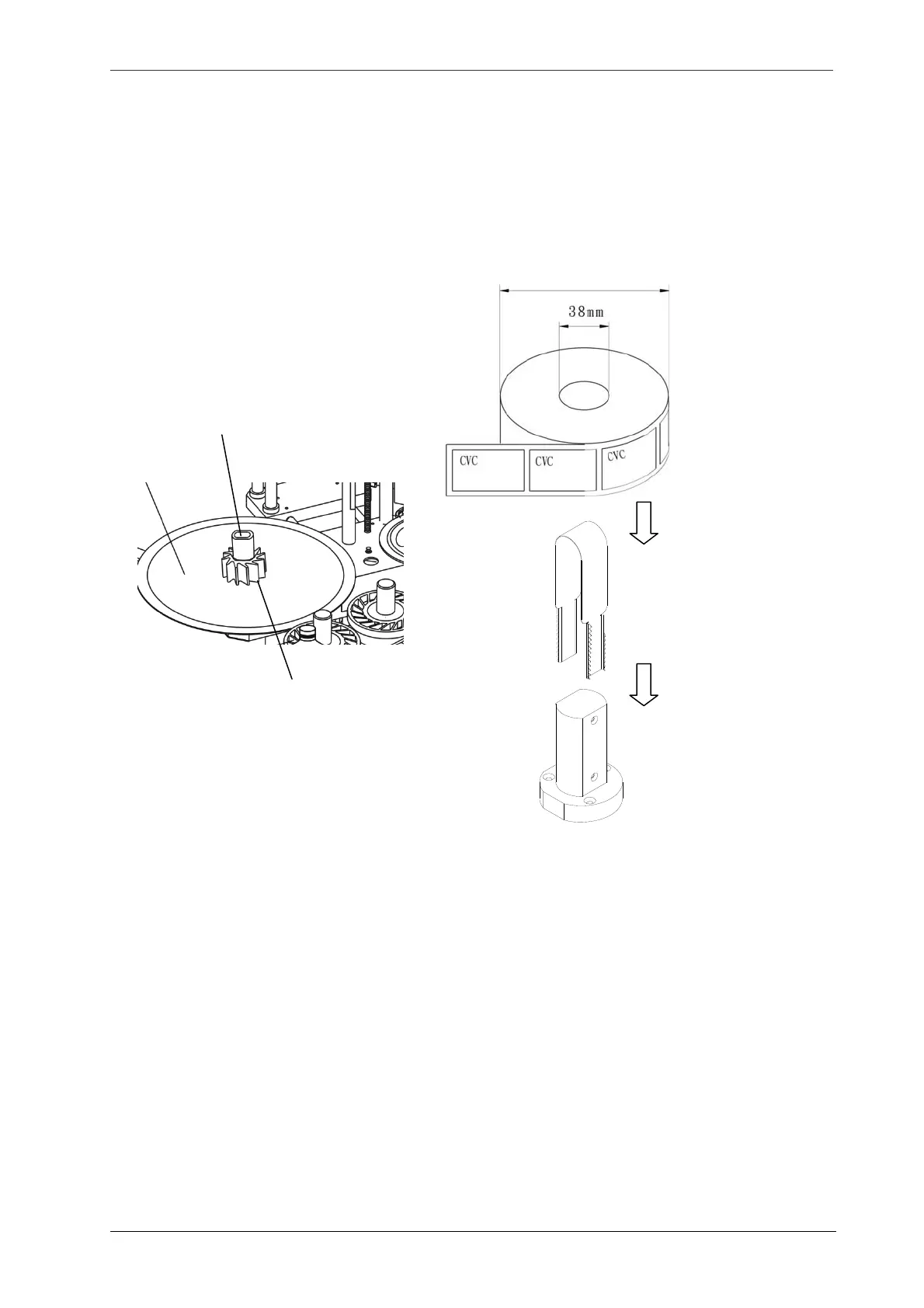

Follow the illustrations given below to mount the U type spring clip before using 38mm labeling roll. It
is designed to fasten the label roll when using 38mm label roll.
a. Remove the PU wheel from label roll axle and replace it with the U type spring clip onto the axle.
b. And then load the label roll.
Max. 350mm
Label roll
Label roll axle
5 - 2
Label roll dis
U- type spring clip
PU wheel
Fig
5.3-1
Label roll axle
Fig
5.3-2
