6.3.4 Blower Power Switch
This main switch is used to connect or disconnect the blower from the power source, putting the
switch in position “OFF” disconnects the power source, whereas putting it in “ON” connects the
machine to the power source.
ON
OFF

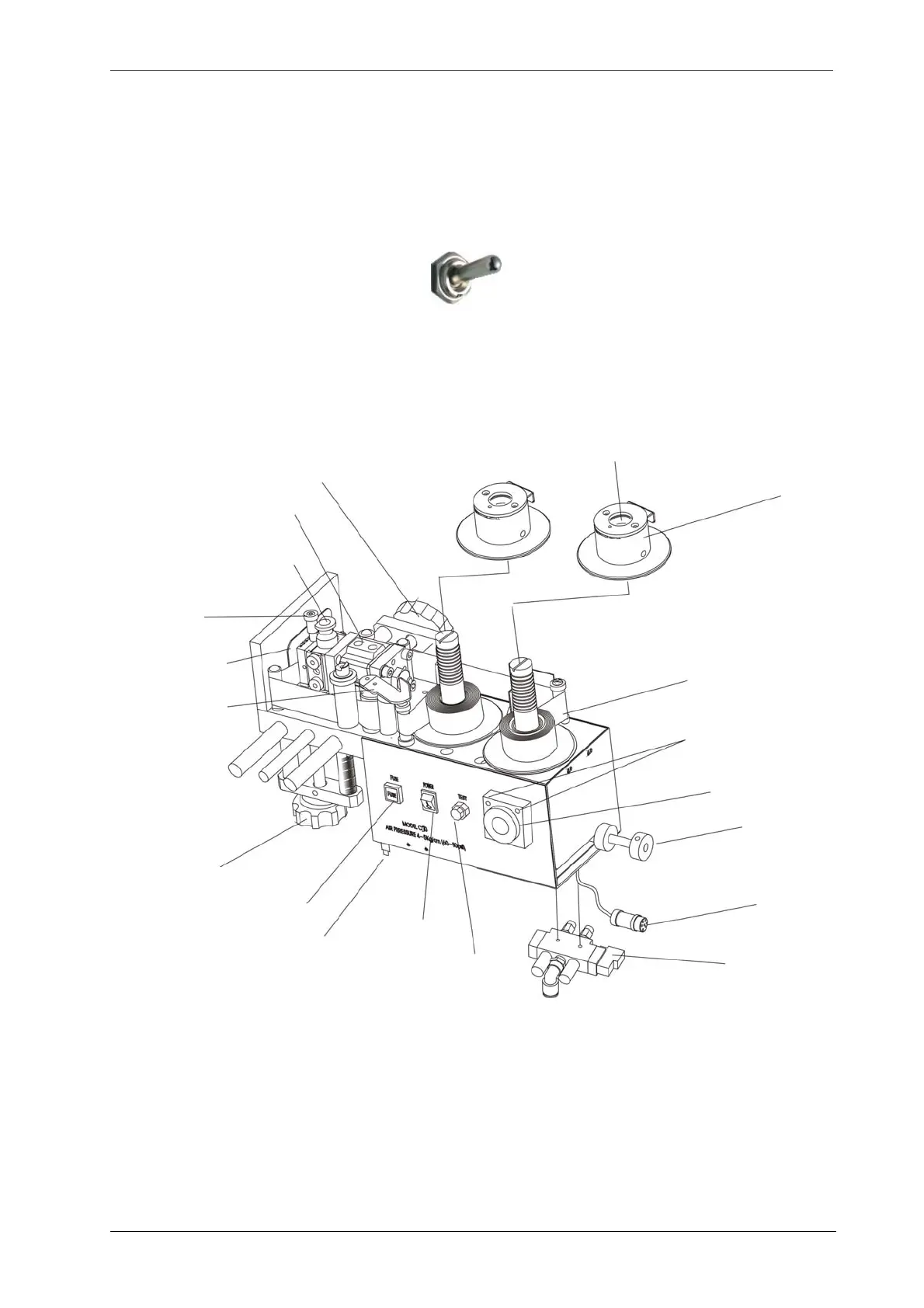

6.4 Hot Stamp Printer (Optional)
Stamp height adj. knob
Foil roller
Air cylinder
Control fit of type chase
6 - 7
Type chase
Hot stamp silicon pad
Foil ta
p
e
Ribbon brake
Fig 6.4-1
(Air inlet)
(Red=too low, Green=ready)
Temperature indicator
Temperature controller
Foil advance
control knob
Hot stamp horizontal
position adj. knob
Adapter
F
use
Air flow control knob
Heating switch
Solenoid valve
(60-80 psi)
Test button
