CVC TECHNOLOGIES, INC. CVC 310 OPERATION MANUAL
11. MACHINE SET-UP AND ADJUSTMENT
Machine Adjustments
Note: For safety and to avoid damaging to the machine, always SWITCH OFF the power before any
machine adjustment. All machine adjustments should be accomplished by qualified technicians.
Most adjustable parts of the machine are provided with guide rulers or numerical handwheels,
proper adjustments are determined through factory test and should not be changed unless
necessary. Therefore some of the sections provided in this chapter are only for reference
purposes.
11.1 Guide Rail and Product Separator Adjustment
a. Place a product onto the conveyor, and loosen the guide rail knob. Adjust all guide rails to coincide
with product width, allowing the product to move freely on the conveyor.
b. Product Separator Wheel: The product must touch the separator wheels to create a proper spacing
between products for labeling.

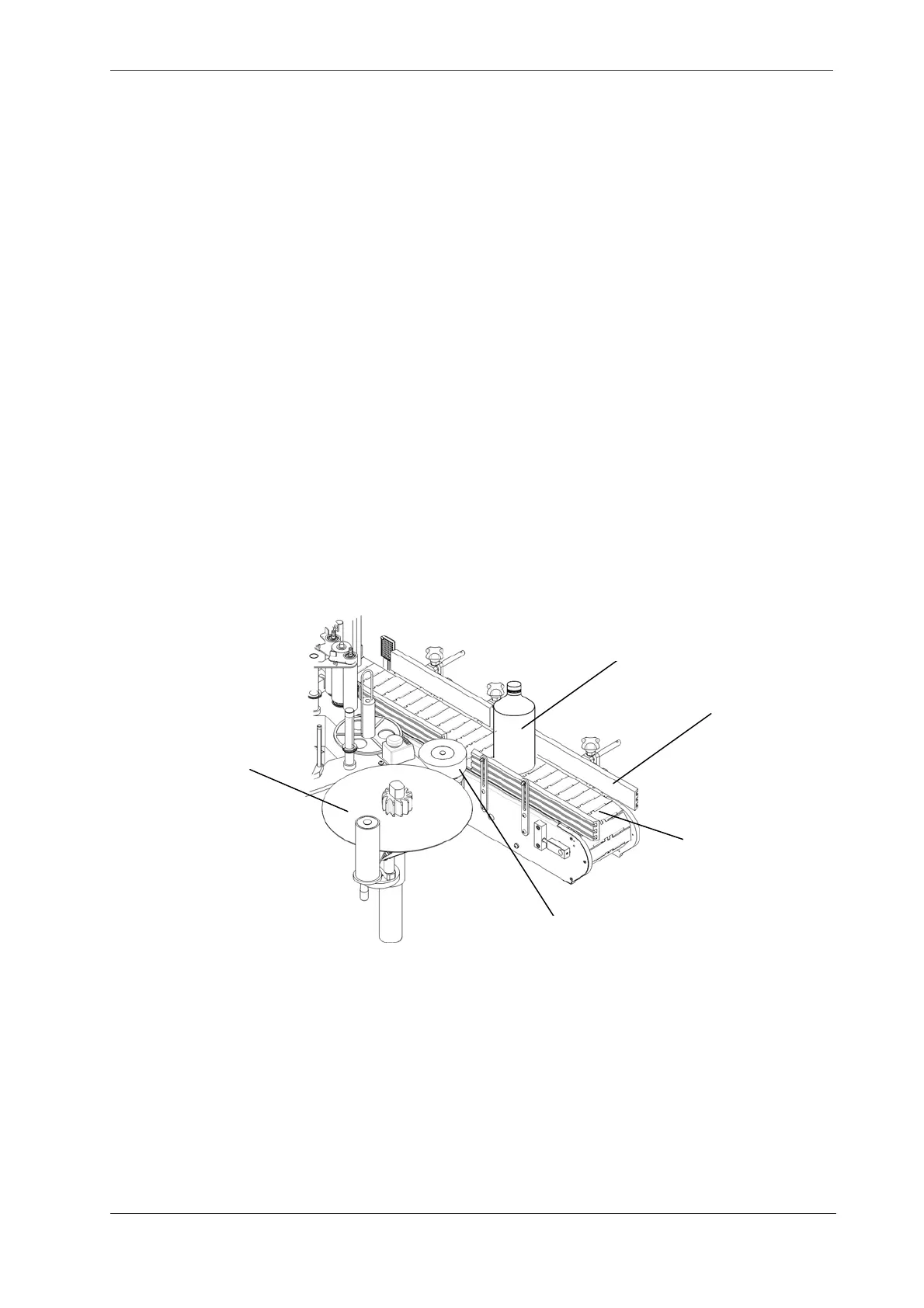

Guide rail
Conveyor
Separator wheel
Product (Bottle)
Label roll dis
k
Fig 11.1-1
11 - 1
