ANNEX G: SUNDRIES
PAGE 63

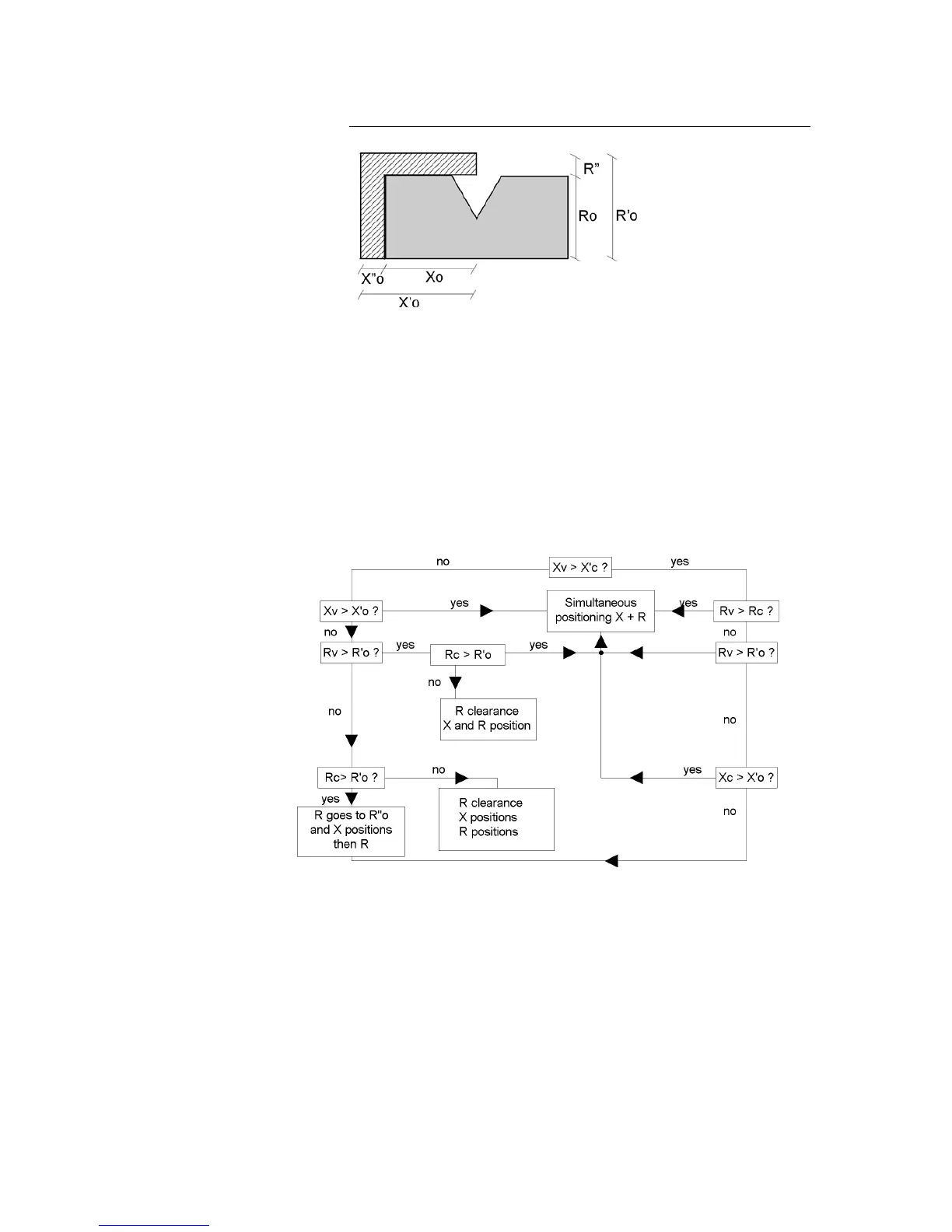

X-R safety positioning diagram
X"o R"o
= machine parameters value 50
Xo
= "a" die value
Ro
= "hm" die value
X'o
= Xo + X"o
R'o
= Ro + R"o
Xc
= X axis current value
Rc
= R axis current value
Xv
= X axis target value
Rv
= R axis target value
72
74
Table of Contents
Safety and Maintenance Instructions
5
Licence Agreement for Cybelec Software
7
Table of Contents
11
Safety, Copyright & Licence Agreement
13
Easy Bend Page
15
Creating a Product
17
The Sequence Page
17
Programming on the Sequence Page
21
Product Management
27
List of Products
27
Annex A: Conventions
31
Typographical Conventions
31
Abbreviations / Glossary
31
Annex B: the User Interface
33
The Screen
33
The Keyboard
33
Annex C: the Main Menu
39
Choice of Main Menu
40
Annex D: the Machine Working Modes
41
Adjustment Mode
41
Sensitive Mode
42
Automatic Mode
42
Annex E: Tool Programming
43
Punch / die Programming
44
Annex F: Programming with L-Alpha
47
Programming on the L-Alpha Page
48
L-Alpha Method
53
Definition of the Bending Order
56
Annex G: Maintenance and Miscelaneous
63
The Initialization Page
63
In Case of Failure
65
The Tool Reference
68
The Contact Point (CP) or Pinch Point
71
The Gauge Axes
72
Programming the Axes Datum
76
Calibration
76
Ideal Curve
78
Cycle Without Bend
80
Punching
80
Bottoming
81
Angle Correction
81
Alphanumerical Characters
83
Messages / Errors
83
The Interactive Messages
84
Annex H: Transfer
86
Tests of the Serial Ports
87
Cyback
88
Internal Backup (Save)
89
Internal Restoration of Pms and Tools
91
Annex I: Print of the Current Screen
94
To Print from the DNC
94
Hyperterminal
95
Annex J: Protection of the Access Levels
102
General Information
102
The Users
103
Access by Password
104
Access to Levels Superior to 3
105
Change Password
106
Management of the Access Levels by External Key
107
Accessories
108
Index
111
