CYBELEC DNC 60 PS - Definition of the Bending Order

PAGE 46 USER GUIDE DNC 60 PS
DEFINITION OF THE BENDING ORDER
Press the key, to display the bending order page (Choice 9,
PRODUCT BENDS, STOPS of the main menu).
P 1 N 1 p/d 1/ 1
N FACE LEG CR p/d
1 __ __ __ __/__
2 __ __ __ __/__
3 __ __ __ __/__
. . .
14 __ __ __ __/__
Explication of the table columns
N
Number of the sequence.
FACE
Face number.
LEG

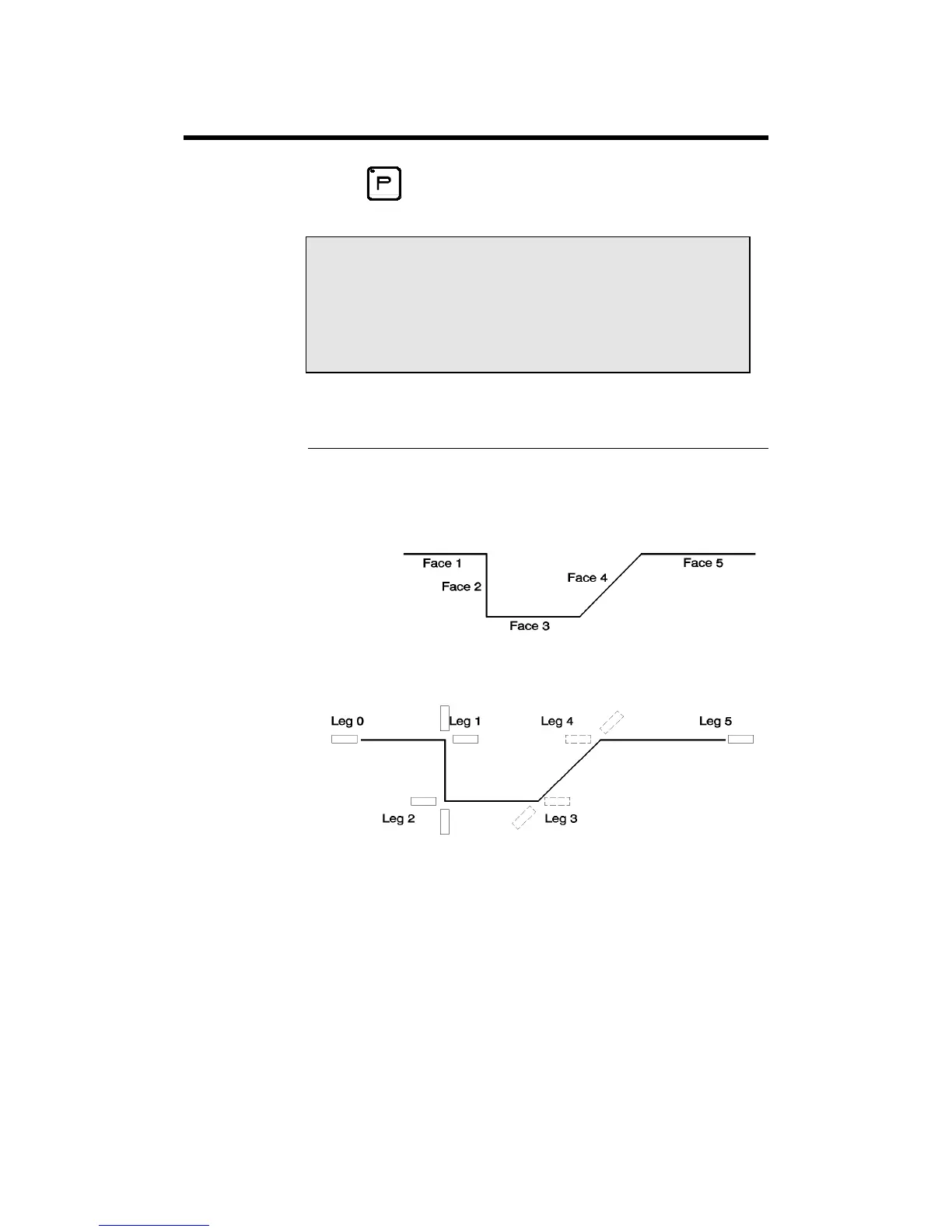

Number of the face which will press against
the stop.
The orientation of the legs is made as a func-
tion of the bending order.
CR
Number of bends requested when working
with ideal curve.
p/d
Definition of a tooling pair for a particular
bend (if different from the pair specified in the
p/d field at the top of the page).
