7D-Link DSL-245GE User Manual
Section 1 - Product Overview

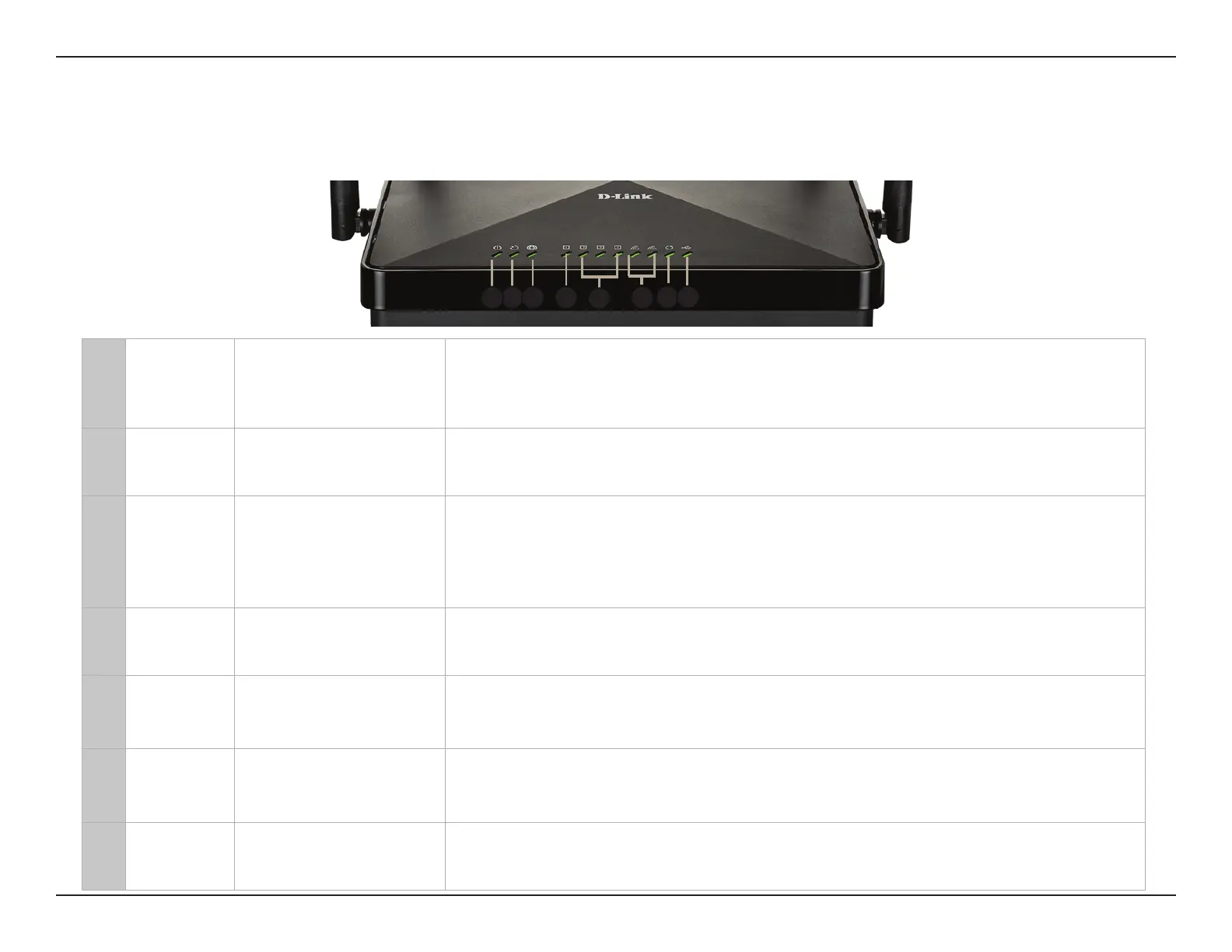

Hardware Overview
LEDs
2 3
4
5
1 6
7 8
1 Power
Solid green
Solid red
Blinking red
Lights up green when the router is powered on and operating normally. When the router
boots up or reboots, the LED lights up red. It also lights up red during the factory reset
process. It ashes red when an error occurs or during rmware upgrade (when the Internet
LED also ashes).
2 DSL
Solid green
Blinking green
O
Lights up green when the DSL connection is established through the DSL port. Flashes
green when the port is negotiating a connection. O indicates these is no DSL connection.
3 Internet
Solid green
Blinking green
Solid red
Blinking red
O
Lights up green when there is an Internet connection. Flashes green when there is Internet
activity. It is red when an Internet connection failure occurs (due to authentication failure, IP
assignment failure, etc.). It ashes red when rmware upgrade is in progress. O indicates
there is no broadband connection available.
4 WAN/LAN
Solid green
Blinking green
O
Lights up green when the Ethernet WAN port has established a successful connection. It
ashes green when there is activity on this port. It is o when a connection failure occurs
or the port is not connected.
5 Ethernet
Solid green
Blinking green
O
Lights up green when the respective LAN port is connected. It ashes green when there is
activity on this LAN port. O indicates the LAN port is not connected.
6
Wireless
2.4G/5G
Solid green
Blinking green
O
Lights up green when the 2.4 or 5 GHz wireless network is enabled. Flashes green when
there is wireless activity. O indicates wireless function is disabled.
7 WPS
Solid green
Blinking green
O
Lights up green when a Wi-Fi Protected Setup is established successfully. Flashes green
when the WPS process is active. O indicates that WPS is idle.
