Chapter 3 - Setup
Setup
This section will show you how to set up and congure your new D-Link router using the Web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a Web-browser such as Internet Explorer
v6.0 or later, Mozilla Firefox v1.0 or later, Safari 2.0 or later, or Google Chrome 1.0
or later and enter the IP address of the Router (default is 192.168.1.1).

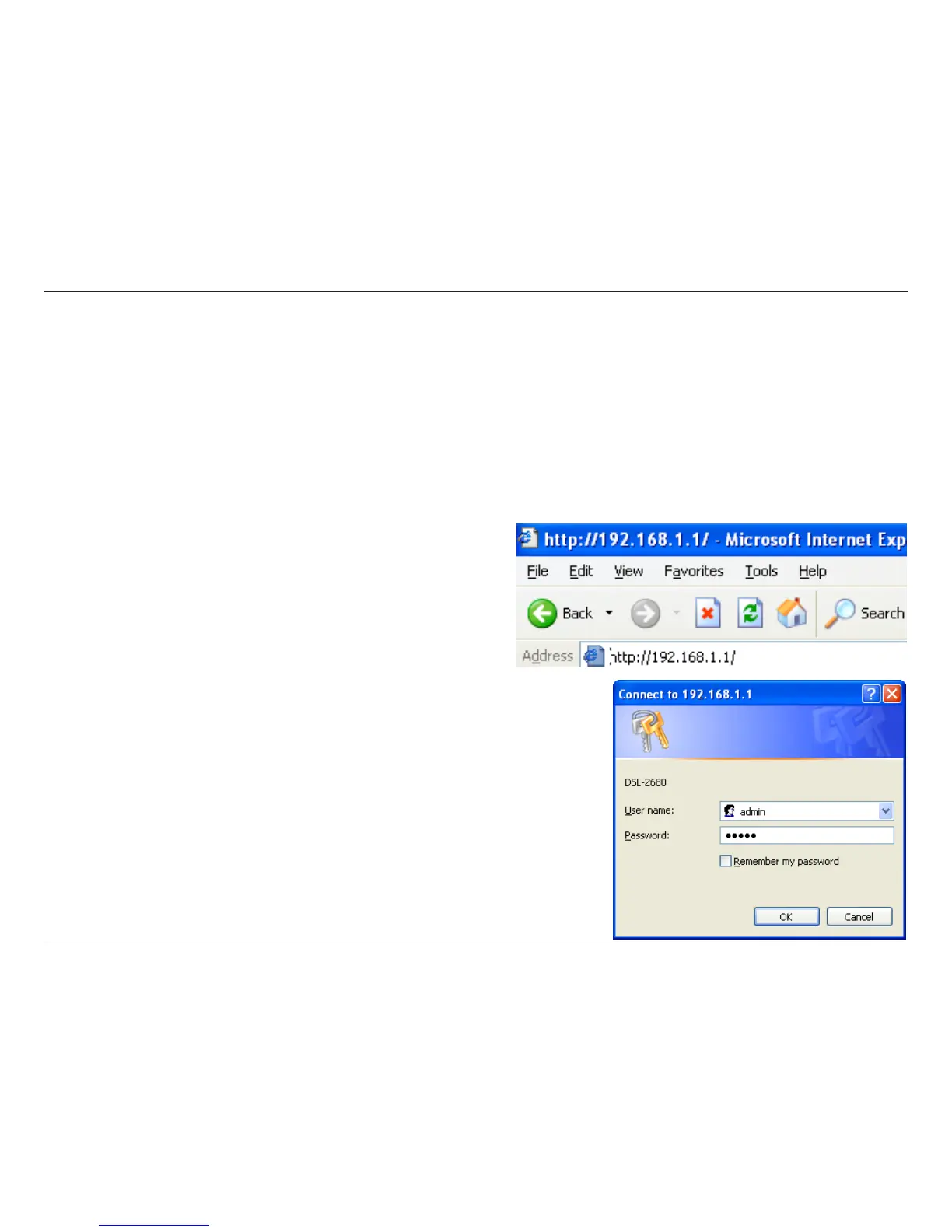

The login dialog box will appear:
1. Type admin in the User Name eld.
2. Enter admin in the Password eld.
3. Click the OK button to log into the Router.
To congure the WAN connection used by the Router it is rst necessary to communicate with the Router through its management interface, which is HTML-based
and can be accessed using a Web browser. The easiest way to make sure your computer has the correct IP settings is to congure it to use the DHCP server in the
Router. The next section describes how to change the IP conguration for a computer running a Windows operating system to be a DHCP client.

D-Link DSL-2680 Specifications

Power

input voltage	100-120V
input current	0.5A
frequency	50-60Hz
output voltage	12V
output current	0.5A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b rates	11, 5.5, 2, 1 Mbps
IEEE 802.11g rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n rates 20MHz	6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps
IEEE 802.11n rates 40MHz	13.5, 27, 40.5, 54, 81, 108, 121.5, 135 Mbps

Media Interface

ADSL interface	RJ-11 connector
LAN interface	two RJ-45 ports
Ethernet connection type	10/100BASE-T
